Overview
This series of stadium and high-mast lighting solutions is engineered to deliver powerful, precision-controlled illumination for sports fields, arenas, large outdoor venues, and high-pole installations. Designed with modular optical systems, high-efficacy LED technology, durable die-cast aluminum housings, and advanced surge protection, each fixture ensures uniform light distribution and long-term performance even in harsh environments. With beam angles tailored for long-throw applications, flexible wattage configurations, and compatibility with smart control networks, these systems provide reliable, professional-grade lighting for both recreational and competitive environments.

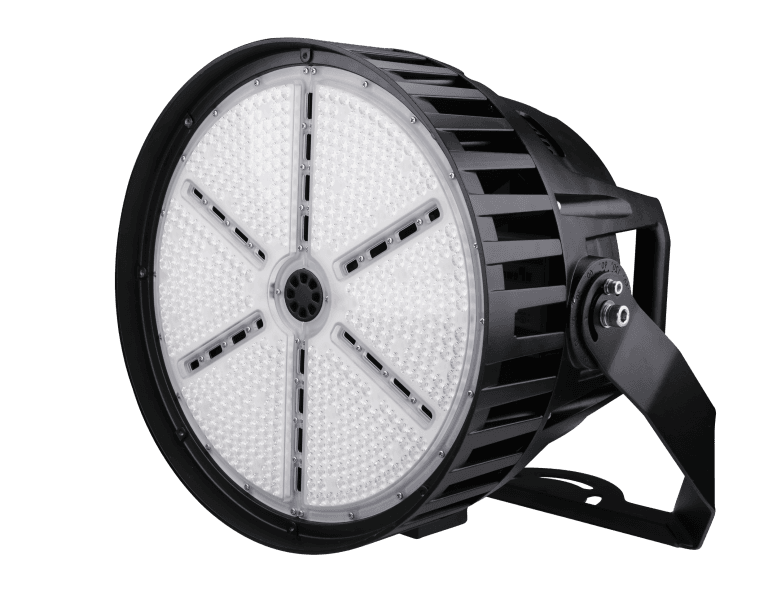

Round Stadium Smart Lighting
High-output precision lighting for stadiums
The LED Stadium Round Light delivers high-output illumination with 400W and 750W configurations producing up to 123,000 lumens at 160 lm/W. Using Bridgelux SMD3030 LEDs and available in 4000K, 5000K, and 5700K color temperatures, it provides precise 30° beam control ideal for long-distance projection across fields, arenas, and performance venues. The fixture’s rugged die-cast aluminum body, IP65 protection, 10kV surge protection, and optional visor (shown on page 2) ensure optimal performance in challenging weather conditions. With 0–10V dimming, sensor receptacle options, and multiple mounting configurations, it offers a versatile, professional lighting solution for stadium-grade applications.

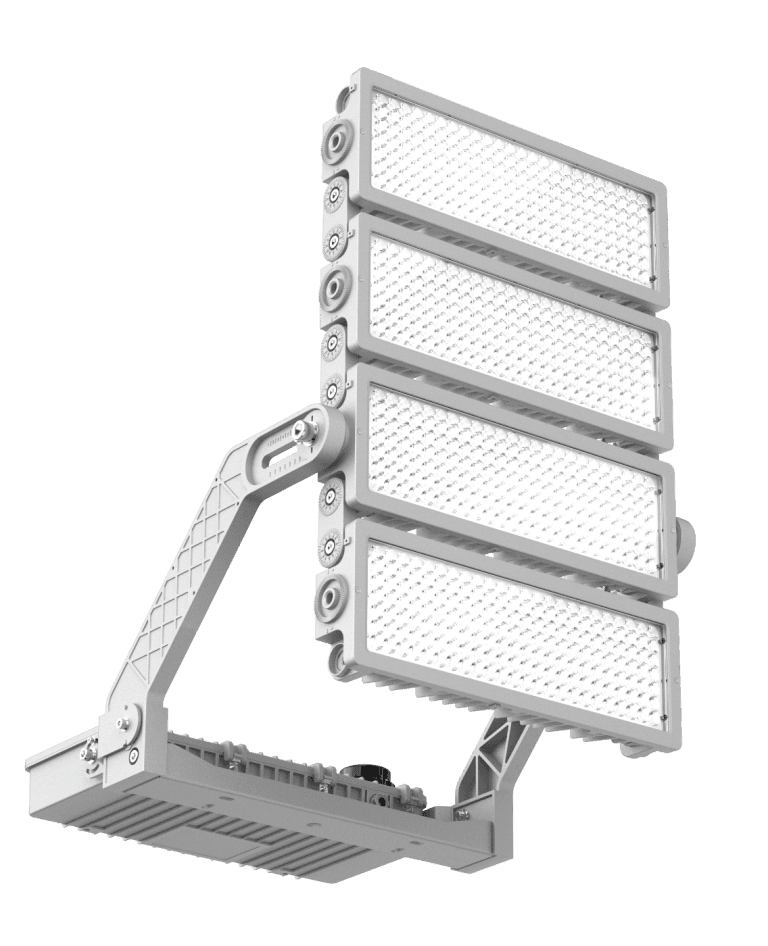

Rectangle Stadium Smart Lighting
Modular high-mast power for large venues
The LED High-Pole Modular Light offers a multi-module architecture delivering up to 1600W of power with lumen efficiencies ranging from 110–170 lm/W. Featuring Bridgelux SMD 5050 LEDs, modular driver boxes, multiple beam angle options (20°, 30°, 50°, 90°, and asymmetric), and IP66/IK08 protection, it is engineered for long-throw, high-mount installations such as stadiums, major sports complexes, and large-area venues. The system supports wired and wireless DALI networking — as shown in the networking diagram on page 4 — allowing coordinated multi-fixture control across up to 250 connected luminaires. Its die-cast aluminum heat management and robust surge protection make it a high-performance solution for demanding outdoor lighting environments.
