Sun Power (535-550) DMHG

A screen depicting a waveform on it
MBB Cell
More uniform current collecon capability, reducing the current heat loss of the internal cells.
A screen with interlocked gears on it.
Higher Output Power
The output power of 132 half-cells Monocrystalline modules is up to 700W
An icon depicting harsh chemicals and abrasives on a surface
Harsh Environmental Adaptability
Strict salt spray and ammonia corrosiontest by the third party.
An icon with clouds
Low Light Features
Higher performance under low light environment.
The letters LID crossed out
LID Free
N-type solar cell has no LID naturally which can increase power generation.
An icon depicting pressure applied to something
Load Capacity
Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa.

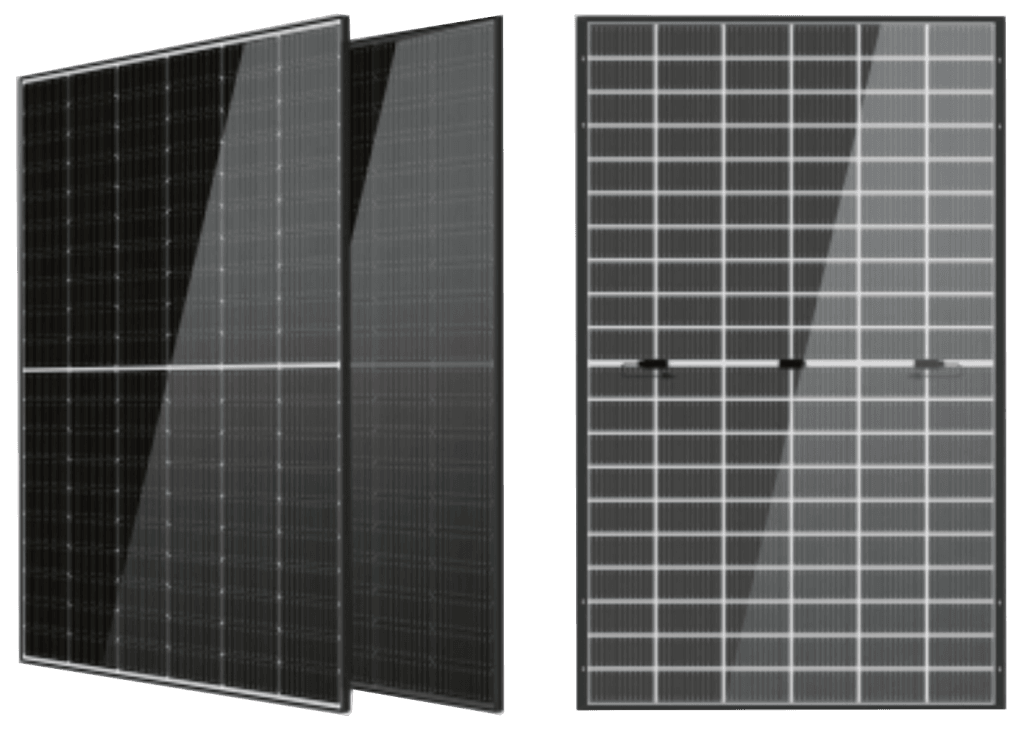

SUNPOWER_ETL(485-500)MHG
15 Year Quality Warranty

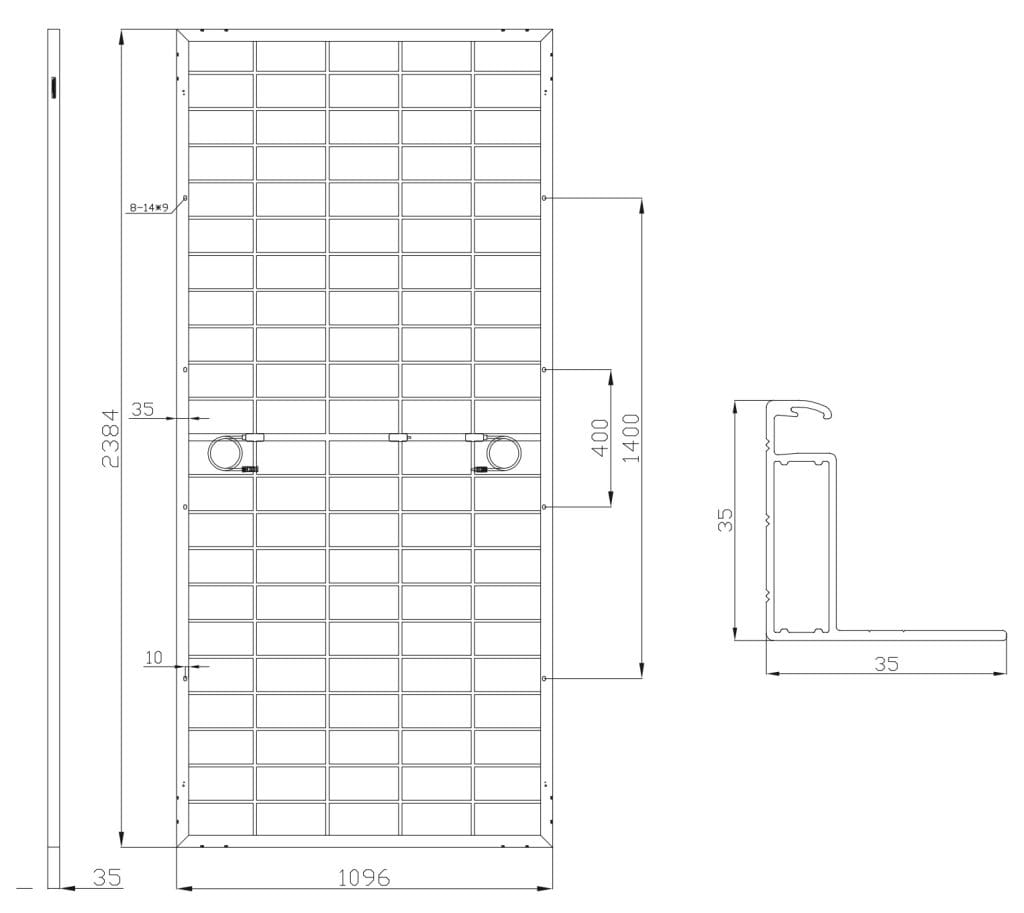

Mechanical Diagram

Specifications

Weight35.0kg
Dimension2384mm*1096mm*35mm
Cell Dimension210*105mm
Cell Amount55*2 pcs
Maximum System Voltage1500V
Junction BoxIP68
Type of the front glass2.0mm Coated ultra clear glass
Type of the back glass2.0mm Heat-strengthened glass
FrameAluminum Alloy
Cable4mm²,+300,-300mm/±1300mmLength can be customized
ConnectorMC4 compaytible
Application LevelClass A

Temperature Characteristics

NMOT45±2°C
Temp Coefficient of ISC+0.05%/°C
Temp Coefficient of VOC-0.28%/°C
Temp Coefficient of Pmax-0.34%/°C

Packing Configuration

Modules/Pallet31 Pieces
Packaging Description20 Pallets, Total=(31+31)x10=620 Pieces
Modules/40’Container620 Pieces

Electrical Parameters At STC

Module TypeHS535-MHG-DHS540-MHG-DHS545-MHG-DHS550-MHG-D
Power535W540W545W550W
Open Circuit Voltage37.66V37.86V38.06V38.26V
Short Circuit Current18.07A18.12A18.17A18.22A
Maximum Power Voltage31.36V31.56V31.76V31.96V
Maximum Power Current17.06A17.11A17.16A17.21A
Module Efficiency20.48%20.67%20.86%21.05%
* Under Standard Test Conditions (STC) of irradiance of 1000 W/㎡, spectrum AM 1.5 and cell temperature of 25°C.

Electrical Parameters At BNPI

Module TypeHS535-MHG-DHS540-MHG-DHS545-MHG-DHS550-MHG-D
Power586W591W597W602W
Open Circuit Voltage37.66V37.86V38.06V38.26V
Short Circuit Current19.44A19.52A19.60A19.68A
Maximum Power Voltage31.36V31.56V31.76V31.96V
Maximum Power Current18.68A18.74A18.79A18.84A
*Rear side power gain:The additional gain from the rear side compared to the power of the front side at the standard test condition. It depends on mounting (structure,height, tilt angle etc.)and albedo of the ground.

Electrical Parameters At NMOT

Module TypeHS535-MHG-DHS540-MHG-DHS545-MHG-DHS550-MHG-D
Power405W409W413W417W
Open Circuit Voltage34.95V35.13V35.32V35.51V
Short Circuit Current14.82A14.86A14.90A14.94A
Maximum Power Voltage29.07V29.26V29.44V29.63V
Maximum Power Current13.93A13.98A14.03A14.08A
Module Efficiency15.50%15.65%15.81%15.96%
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/㎡, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

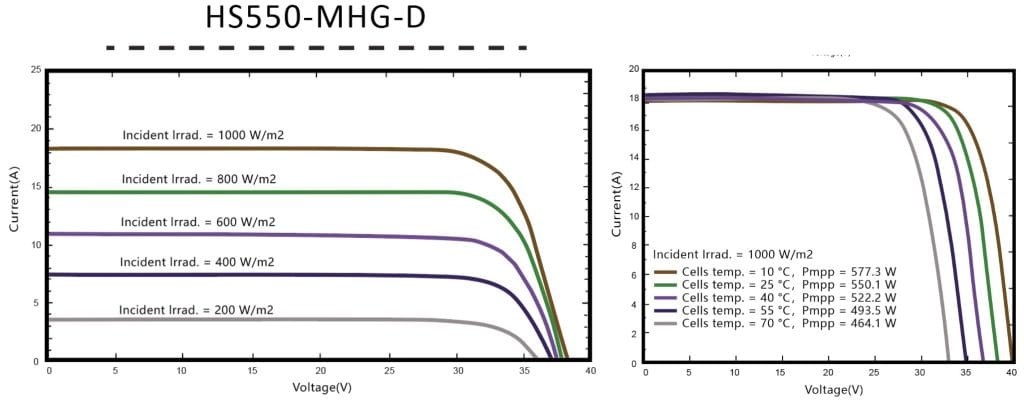

IV Characteristics

SUNPOWER_ETL(535-550)DMHG-characteristics

Downloads

You can download all of this information and more in PDF format here.
