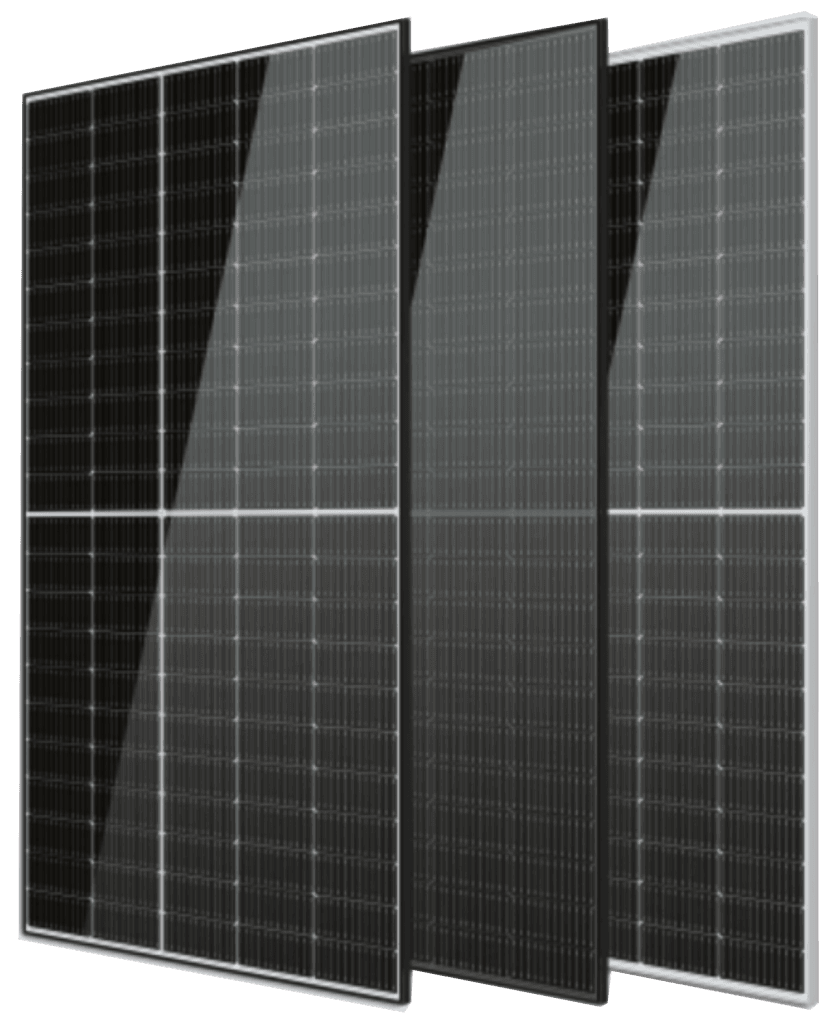

Sun Power (485-500) DMHG

A screen depicting a waveform on it
MBB Cell
More uniform current collecon capability, reducing the current heat loss of the internal cells.
A screen with interlocked gears on it.
Higher Output Power
The output power of 132 half-cells Monocrystalline modules is up to 700W
An icon depicting harsh chemicals and abrasives on a surface
Harsh Environmental Adaptability
Strict salt spray and ammonia corrosiontest by the third party.
An icon with clouds
Low Light Features
Higher performance under low light environment.
The letters LID crossed out
LID Free
N-type solar cell has no LID naturally which can increase power generation.
An icon depicting pressure applied to something
Load Capacity
Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa.
SUNPOWER_ETL(485-500)DMHG
15 Year Quality Warranty

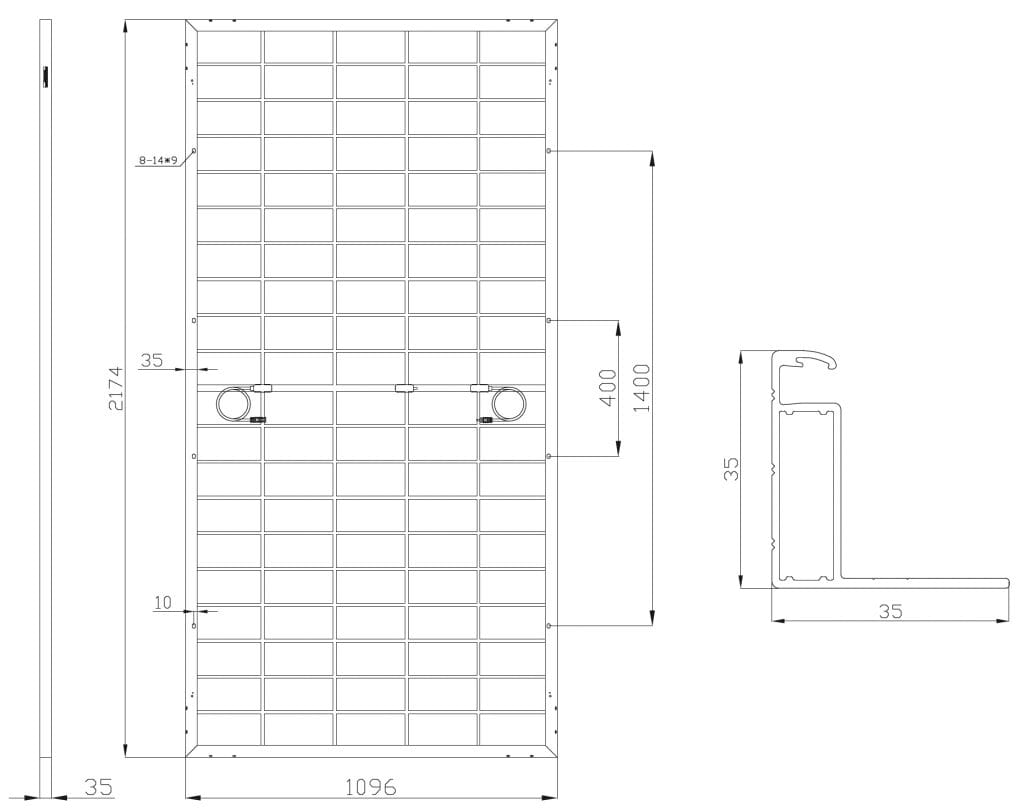

Mechanical Diagram

SUNPOWER_ETL(485-500)DMHG-EN

Specifications

Weight31.0kg
Dimension2174mm1096mm35mm
Cell Dimension210*105mm
Cell Amount50*2 pcs
Maximum System Voltage1500V
Junction BoxIP68
Type of Front Glass2.0mm Coated ultra clear glass
Type of Back Glass2.0mm Heat-strengthened glass
FrameAluminum Alloy
Cable4mm², +300, -300mm/±1300mm (customizable)
ConnectorMC5 compatible
Application LevelClass A

Temperature Characteristics

NMOT45±2°C
Temp Coefficient of ISC+0.05%/°C
Temp Coefficient of VOC-0.28%/°C
Temp Coefficient of Pmax-0.34%/°C

Packing Configuration

Modules/Pallet31 Pieces
Packaging Description20 Pallets, Total=(31+31)x10=620 Pieces
Modules/40’Container620 Pieces

Electrical Parameters At STC

Module TypeHS485-MHG-DHS490-MHG-DHS495-MHG-DHS500-MHG-D
Power485W490W495W500W
Open Circuit Voltage34.22V34.42V34.62V34.82V
Short Circuit Current18.05A18.13A18.21A18.29A
Maximum Power Voltage28.49V28.69V28.89V29.09V
Maximum Power Current17.03A17.08A17.13A17.19A
Module Efficiency0.20360.20560.20770.2098
* Under Standard Test Conditions (STC) of irradiance of 1000 W/㎡, spectrum AM 1.5 and cell temperature of 25°C.

Electrical Parameters At BNPI

Module TypeHS485-MHG-DHS490-MHG-DHS495-MHG-DHS500-MHG-D
Power485W490W495W500W
Open Circuit Voltage34.22V34.42V34.62V34.82V
Short Circuit Current18.05A18.13A18.21A18.29A
Maximum Power Voltage28.49V28.69V28.89V29.09V
Maximum Power Current17.03A17.08A17.13A17.19A
Module Efficiency0.20360.20560.20770.2098
*Rear side power gain:The additional gain from the rear side compared to the power of the front side at the standard test condition. It depends on mounting (structure,height, tilt angle etc.)and albedo of the ground.

Electrical Parameters At NMOT

Power368W372W376W380W
Open Circuit Voltage31.76V31.94V32.13V32.31V
Short Circuit Current14.80A14.87A14.93A14.99A
Maximum Power Voltage26.41V26.60V26.78V26.97V
Maximum Power Current13.94A13.99A14.04A14.09A
Module Efficiency0.15440.15610.15780.1595
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/㎡, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

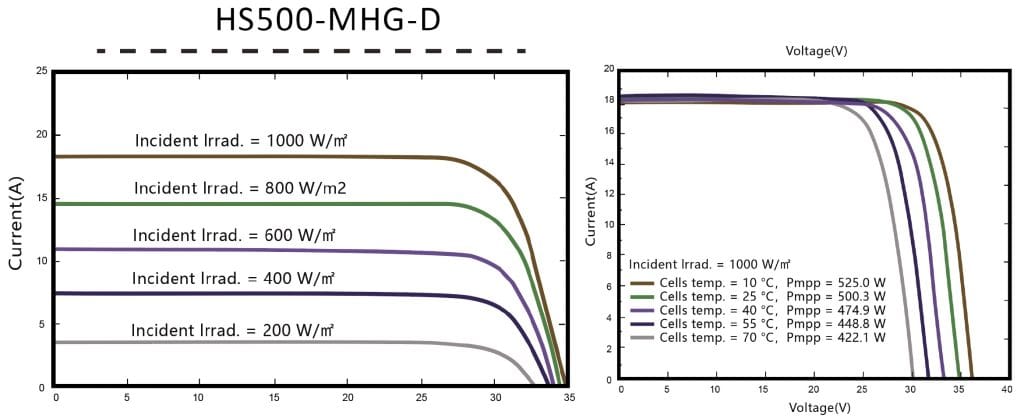

IV Characteristics

SUNPOWER_ETL(485-500)DMHG-characteristics

Downloads

You can download all of this information and more in PDF format here.

Download PDF
