Overview
Harnessing the power of the sun, the all-in-one SoltechⅠ solar luminaire delivers zero carbon illumination to brighten your streets, pathways, and public spaces. It stands apart with its originality and solid construction, seamlessly integrating solar panels and large battery to provide real and continuous high brightness output for long operation hours.
Embrace the future of sustainable lighting with Soltech Ⅰ, where style meets substance in a beautiful, efficient package.

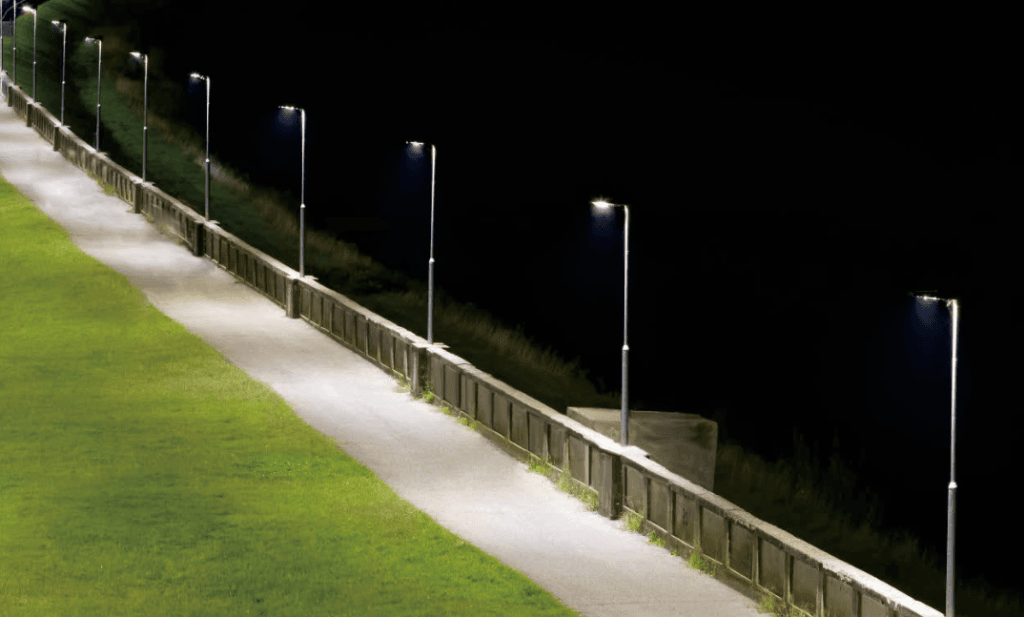

Applications
- Street Lighting
- Roadway Lighting
- Pathway Lighting
- Ramp Lighting
- Sidewalk Lighting
- Private Road Lighting
- Farm Lighting
- Wildlife Area Lighting
- Perimeter Security
- Lighting
- Park Lighting
- Railway Yard Lighting
- Fence Lighting
- Campus Lighting
- Ship Dock Lighting
- Remote Area Lighting
- Military Base Lighting
- Gate Lighting
- Jogging Path Lighting

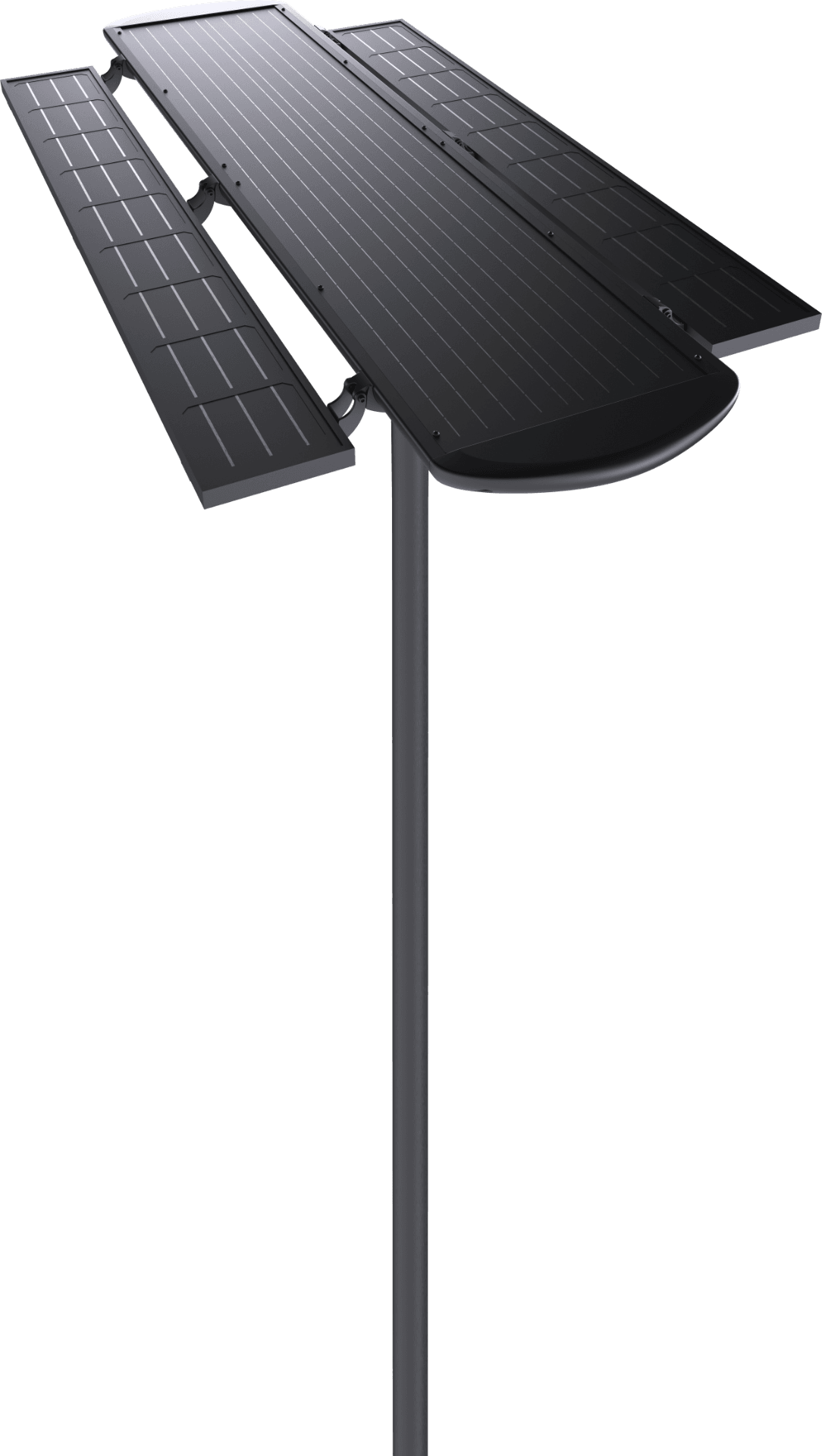

Extendable Solar Panel
With foldable solar panel extension, Soltech II offers more choices for higher wattage with the same structure for more demanding applications, be it long operation hours high power output or for harsh environment where high performance required in short sunny hours.

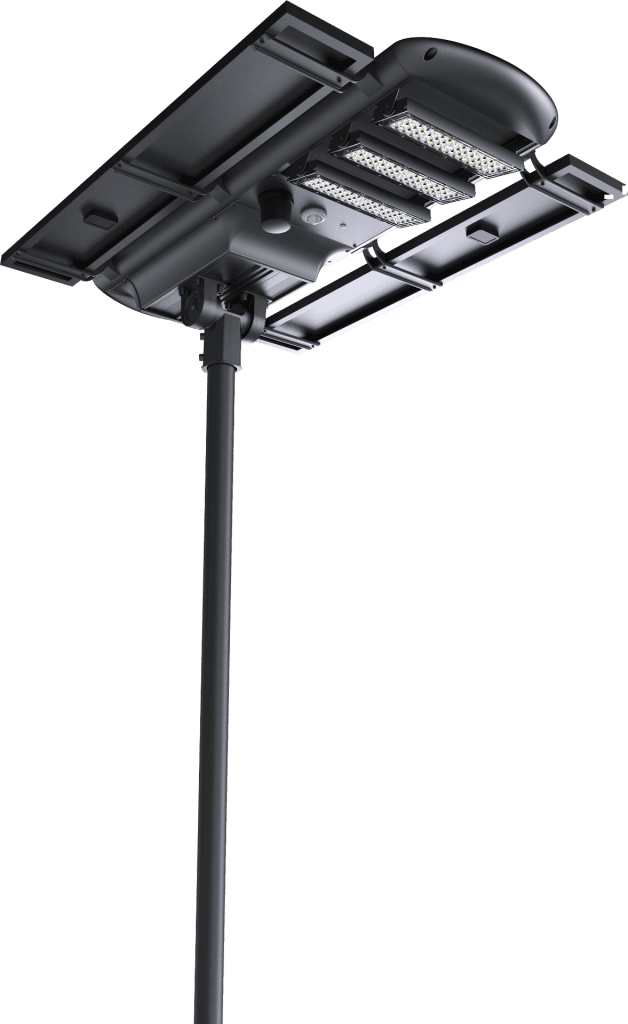

The Innovation of the Originality

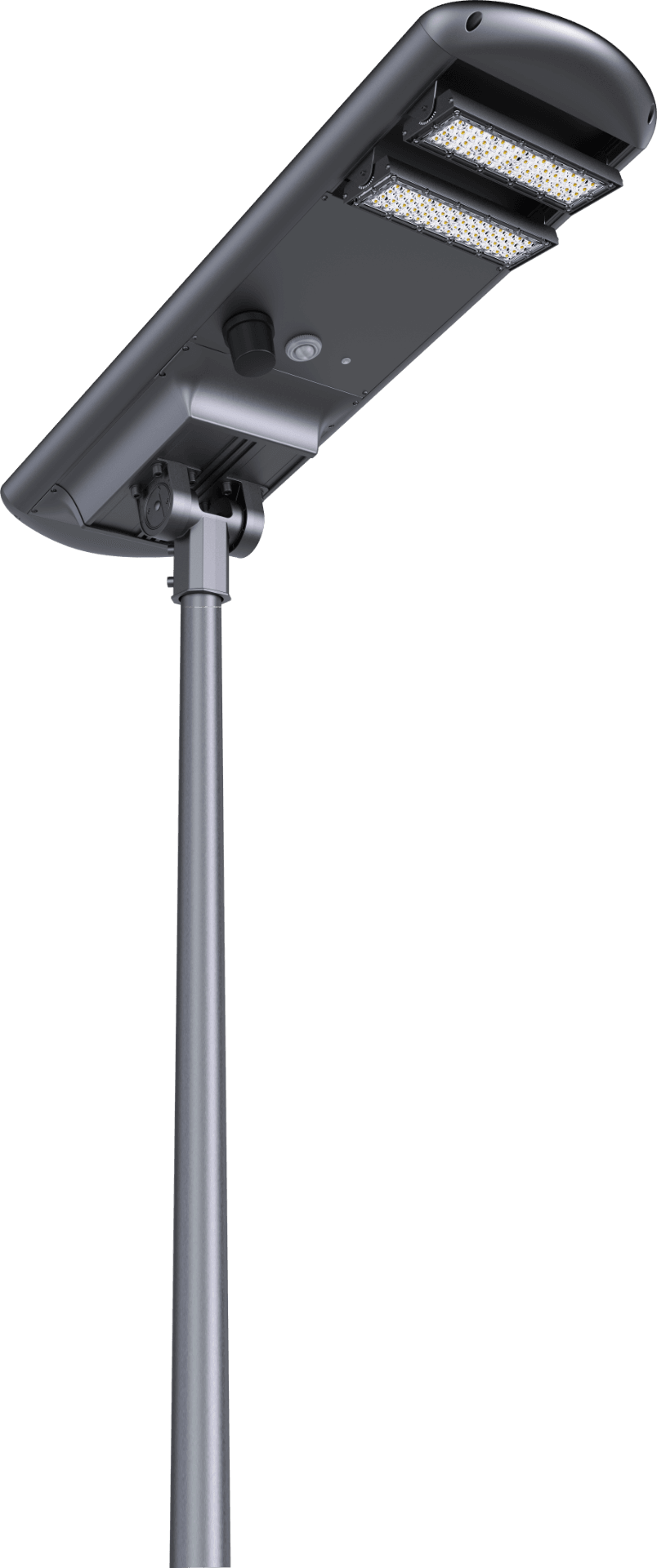

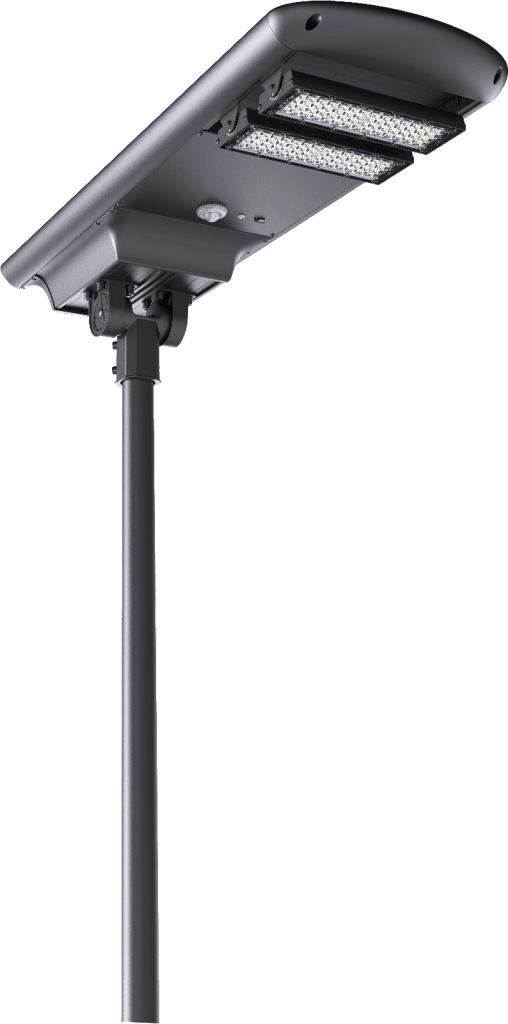

Originally designed to provide the real and continuous high brightness output for long operation hours, Soltech II is highly engineered all-in-one solar street light incorporating large battery capacity and extremely high efficacy LED than ever.
Elegant Yet Rock-Soltech II
With the highest grade corrosion resistant aluminum alloy cage, 316 stainless steel components, ultra strong slip fitter, IP66 and Ik08 rated, Soltech II stand and handle whatever comes your way and are twice as durable as others, be it the strongest rains, snows or storms.
Reliability Unexpected Value
Solar Controller-B
Regular MPPT Controller
5-Stage Mode
The lamp’s lighting is divided into 5 stages, and both the duration and dimming level for each stage can be set to match your needs. With dimming enabled, you can save energy efficiently and keep the lamp operating at its best for longer periods.
Motion Sensor Mode
When motion is detected: 2 hours at 100% brightness; 3 hours at 60%; 4 hours at 30%; and the final 3 hours at 70%.
When no motion is detected: 2 hours at 30% brightness; 3 hours at 20%; 4 hours at 10%; and the final 3 hours at 20%.
Be sure to review the specification document to review more detailed information and modes of operation. A download link is available in the “downloads” section of this page.
How Grid Power Works in the Hybrid System
Grid Connection and Backup
The grid connection serves as a backup power source. When the solar energy and battery storage are insufficient to meet the load demand, the grid connection provides the necessary power to ensure uninterrupted supply.
Power Flow and Stability
The system uses power electronic devices and control algorithms to manage the flow of power between the solar panels, the grid, and the load. This ensures that the system remains stable and efficient, even during periods of high demand or fluctuating solar generation.
Power Switching and Management
It initially uses the stored DC power from the batteries to illuminate the street light at night. If the battery charge depletes or additional power is required, the controller seamlessly switches to AC supply. By integrating soltech power and grid power in this way, an AC/DC hybrid solar system can provide a reliable and sustainable energy solution, reducing dependence on the grid and maximizing the use of renewable energy.

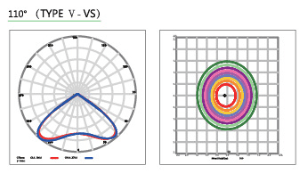

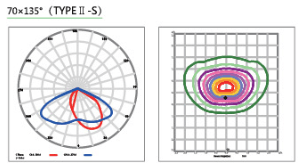

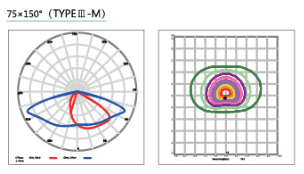

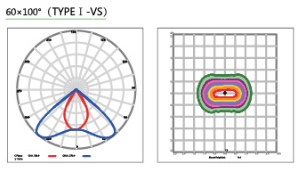

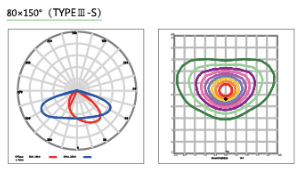

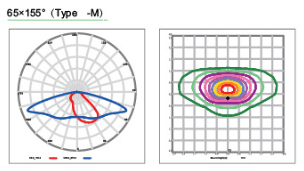

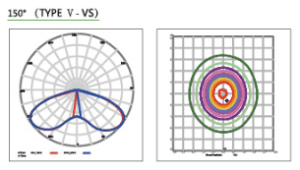

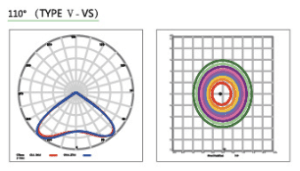

Photometrics
Specifications
Off-Grid
| Part# | Power | Modules | Efficacy S Series | System Lumen | Solar Panel | Battery | Product Dimensions |
|---|---|---|---|---|---|---|---|
| KS-STLS-II-30 | 30W | 1 | 210 LM/W | 6,300 LM | 55W/18V | 12.8V/18AH 12.8V/24AH 12.8V/30AH | 1123×406×293mm |
| KS-STLS-II-40 | 40W | 1 | 210 LM/W | 8,400 LM | 55W/18V | 12.8V/18AH 12.8V/24AH 12.8V/30AH | |
| KS-STLS-II-50 | 50W | 1 | 210 LM/W | 10,500 LM | 65W/18V | 12.8V/24AH 12.8V/30AH 12.8V/36AH | 1233×406×293mm |
| KS-STLS-II-60 | 60W | 1 | 210 LM/W | 12,600 LM | 75W/18V | 12.8V/24AH 12.8V/30AH 12.8V/36AH | 1433×406×293mm |
| KS-STLS-II-80 | 80W | 2 | 210 LM/W | 16,800 LM | 95W/36V | 25.6V/18AH 25.6V/24AH 25.6V/36AH 25.6V/42AH | 1813×406×293mm |
| KS-STLS-II-90 | 90W | 2 | 210 LM/W | 18,900 LM | 105W/36V | 25.6V/18AH 25.6V/24AH 25.6V/36AH 25.6V/42AH | 1953×406×293mm |
*All specifications & parameters @25C° & subject to change without notice. All data tolerance +/- 5%.
HYBRID
| Part# | Power | Modules | Efficacy S Series | System Lumen | Solar Panel | Battery | Product Dimensions |
|---|---|---|---|---|---|---|---|
| KS-STLS-II-30H | 30W | 1 | 190 LM/W | 5,700 LM | 55W/18V | 12.8V/18AH 12.8V/24AH 12.8V/30AH | 1123×406×293mm |
| KS-STLS-II-40H | 40W | 1 | 190 LM/W | 7,600 LM | 55W/18V | 12.8V/18AH 12.8V/24AH 12.8V/30AH | |
| KS-STLS-II-50H | 50W | 1 | 190 LM/W | 9,500 LM | 65W/18V | 12.8V/24AH 12.8V/30AH 12.8V/36AH | 1233×406×293mm |
| KS-STLS-II-60H | 60W | 1 | 190 LM/W | 11,400 LM | 75W/18V | 12.8V/24AH 12.8V/30AH 12.8V/36AH | 1433×406×293mm |
| KS-STLS-II-80H | 80W | 2 | 190 LM/W | 15,200 LM | 95W/36V | 25.6V/18AH 25.6V/24AH 25.6V/36AH 25.6V/42AH | 1813×406×293mm |
| KS-STLS-II-90H | 90W | 2 | 190 LM/W | 17,100 LM | 105W/36V | 25.6V/18AH 25.6V/24AH 25.6V/36AH 25.6V/42AH | 1953×406×293mm |
*All specifications & parameters @25C° & subject to change without notice. All data tolerance +/- 5%.

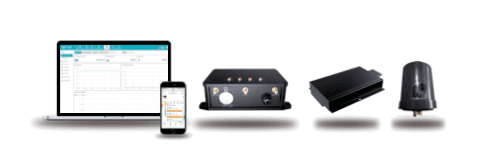

Smart Control Option
