- Grade A+ battery cells used.
- High efficiency with light weight.
- Safety and a long lifespan.
- No active maintenance.
- High discharge rates.
- Suitable for extreme temperatures.

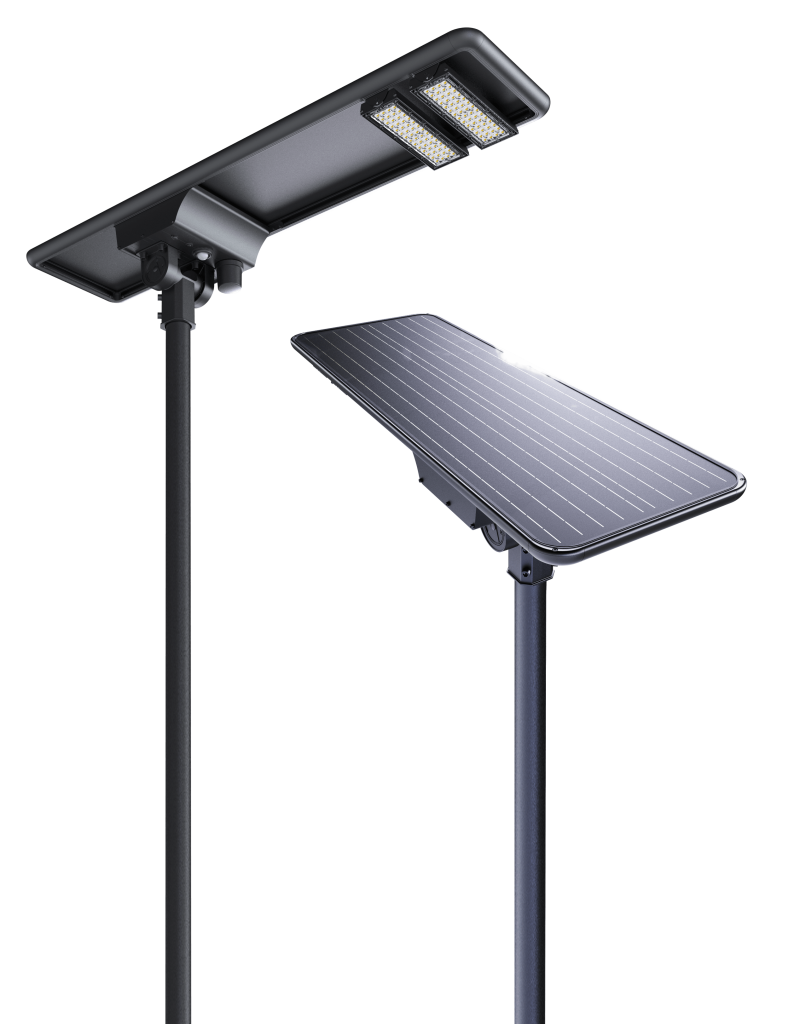

Soltech I Integrated Street Light

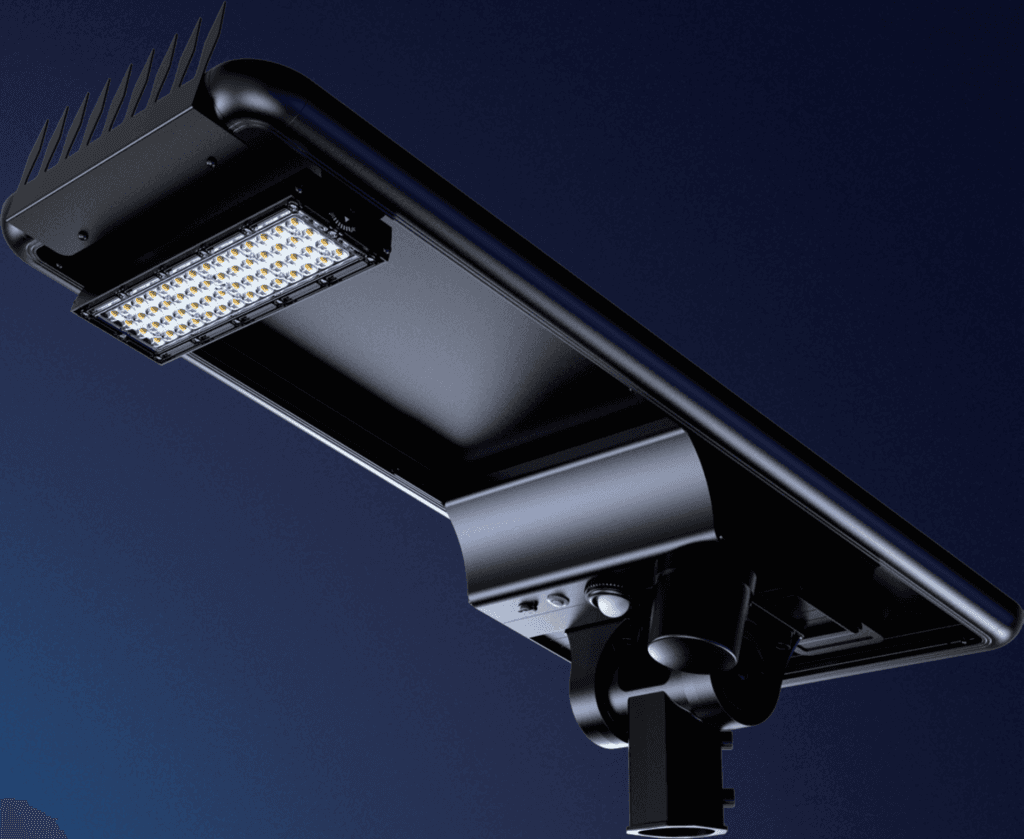

Overview
SOLTECH I is a high-efficiency integrated solar street-light system engineered for dependable off-grid or hybrid operation. It combines advanced monocrystalline solar panels (up to 23 % efficiency) with long-life LiFePO₄ batteries rated for 4,000 + cycles and 5 – 10 years of use. The system delivers powerful, energy-efficient illumination—up to 210 lm/W—through premium 5050 LED chips and a precision-engineered optical lens for wide, uniform coverage.
The integrated design houses the solar module, LED fixture, battery, controller, and motion sensor in a single weather-sealed (IP67/IP66) assembly, ensuring fast installation and minimal maintenance. Intelligent MPPT and hybrid controllers optimize solar tracking and charge efficiency, while adaptive lighting modes automatically adjust brightness based on motion and ambient light conditions to extend battery life through the night.

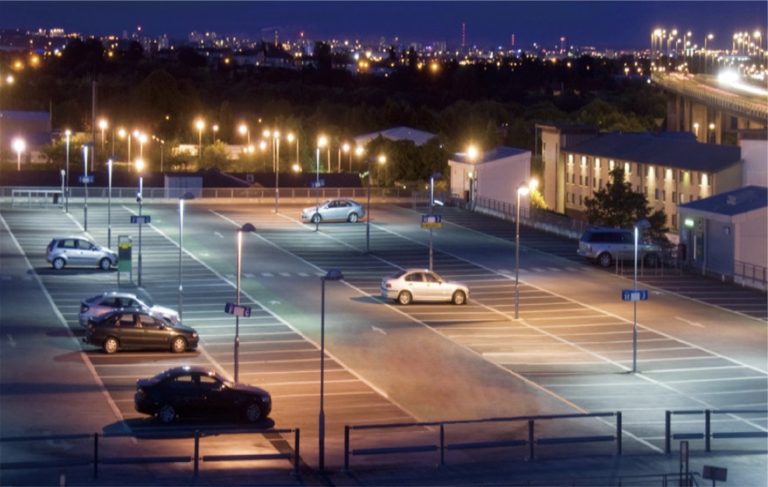

With models ranging from 20 W to 90 W and outputs up to 18,900 lumens, SOLTECH I suits diverse roadway, parking-lot, and pathway applications. The system supports remote control, NEMA 7-pin connectivity, and a variety of Type II/III/M light-distribution options. Certified for CE and ROHS compliance, it offers a reliable, sustainable lighting solution built to perform in environments from –35 °C to +65 °C.
Features
The entire lighting system is guaranteed for 5 years and the 10 years guaranteed for battery maintenance
Using Grade A+ battery cell, the battery cycle life more than 4000 times
Premium-grade Integrated All-in-one Design, Easy to Install and Maintain.
High Luminous Efficiency of 190 LM/W – 210 LM/W to Maximize Battery Performance.
Light On/Off and Dimming Programmable Smart Lighting.

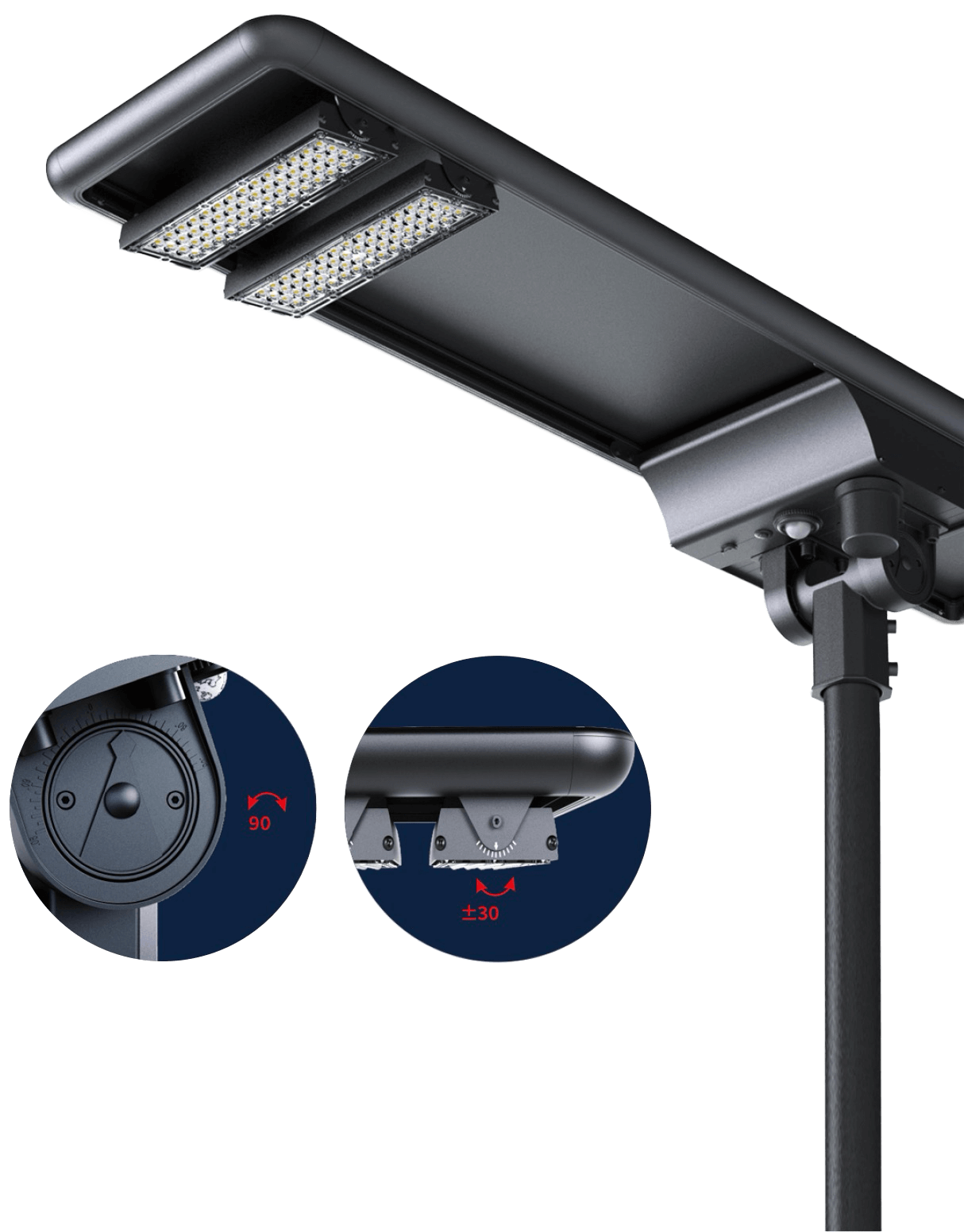

Pivoting LED Modules Deliver the Best Lighting Control.
Zero carbon emission
Ip66 Luminaire Ensures Long Lasting and Consistent High Performance.
No Trenching or Cabling Work Needed.

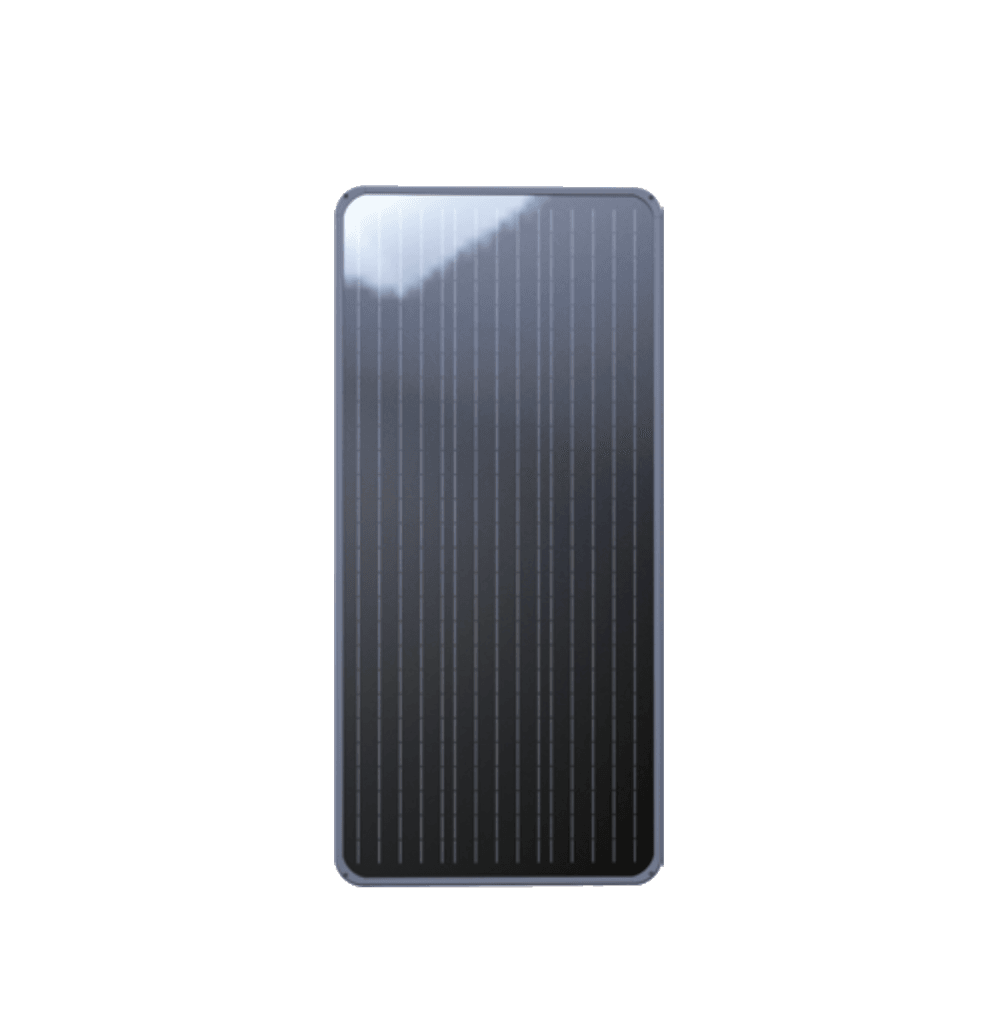

Monocrystalline Solar Panel
- High power density reach to 23% conversion efficiency.
- Multi-busbar design makes the solar panel with higher durability.
- PV modules have demonstrated resistance against PID (Potential induced degradation).
grey
right
on

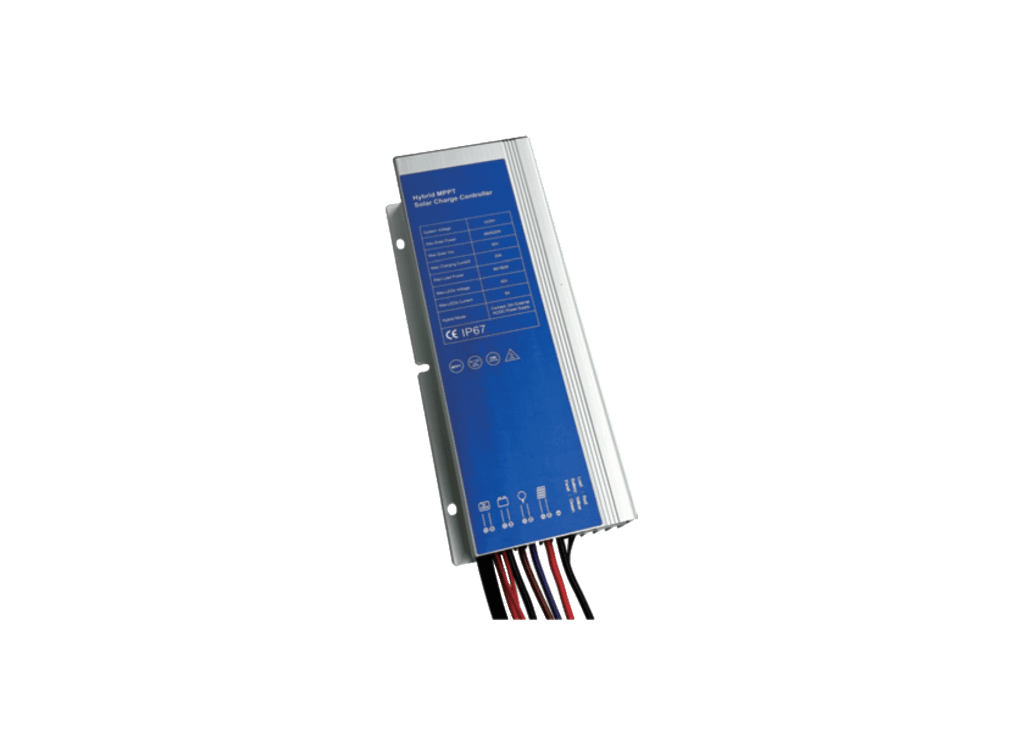

MPPT Smart Controller
- High tracking efficiency >99.9%.
- If battery voltage is low, it can be set to dimming or directly use the grid power to light up.
- Dimming start voltage and percentage can be set.
grey
left
off

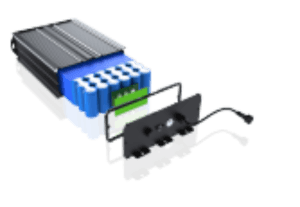

High Performance Battery Pack

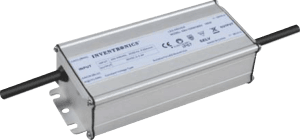

Hybrid AC Driver
- High efficiency (up to 92%).
- Constant voltage output.
- No-load power < 0.5 W.
- Input surge protection: DM 4KV, CM 6KV.
- All-around protection: OCP, OVP, SCP, OTP.
- IP67.
- SELV output.
Installation Spacing
white

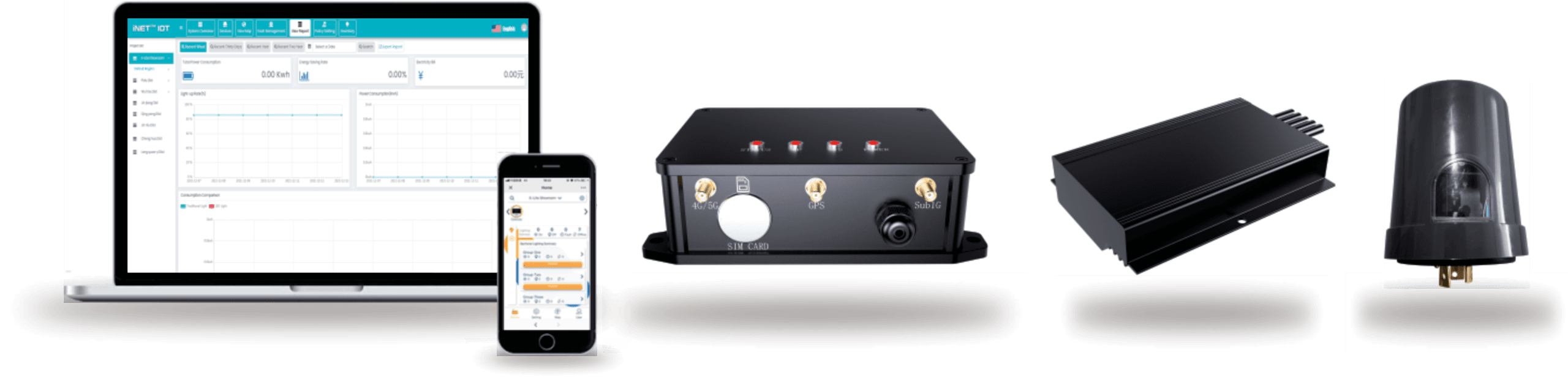

System & Hardwares

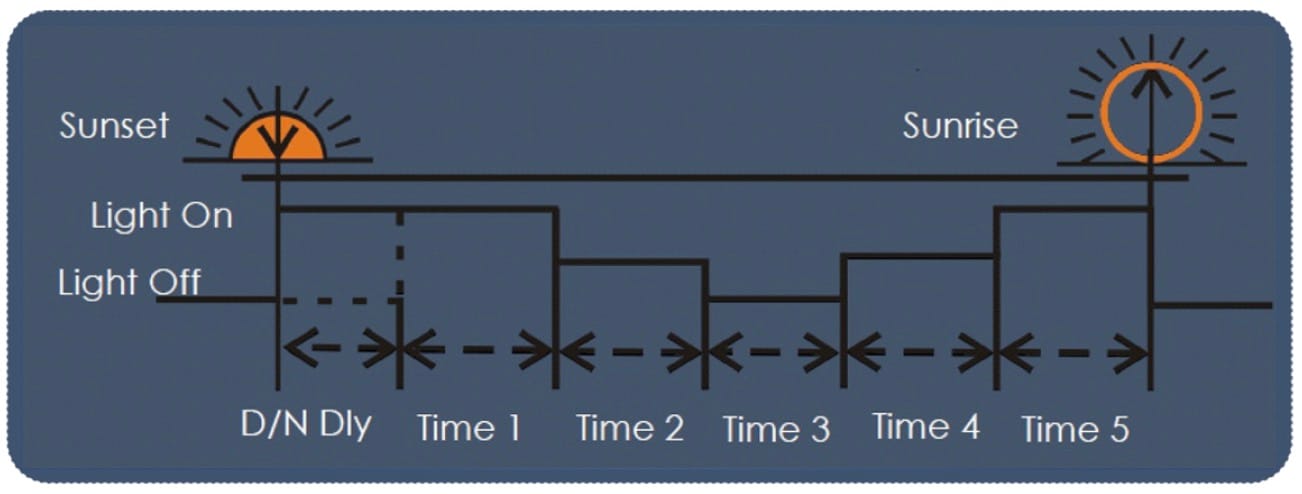

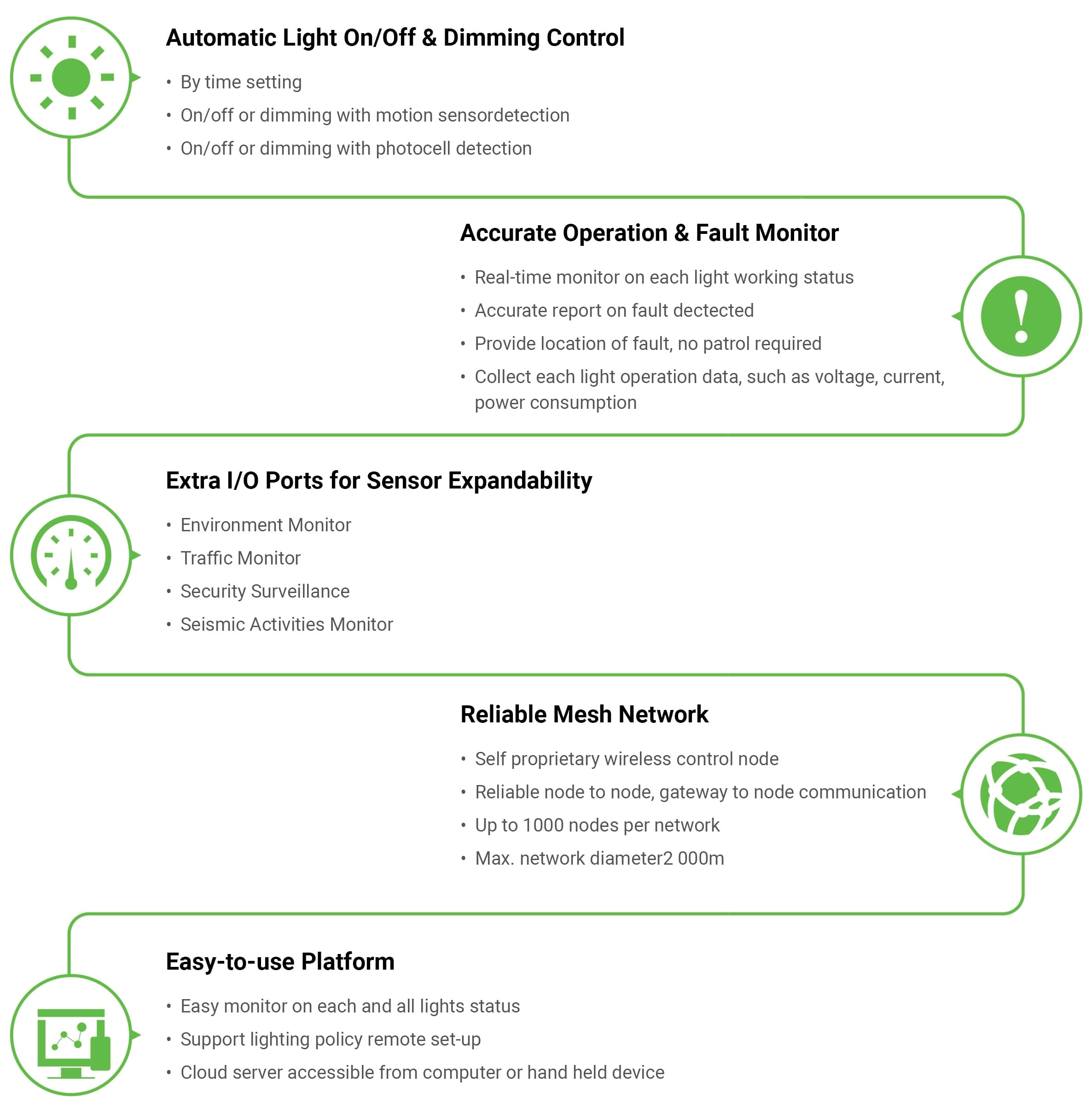

Automatic Light On/off & Dimming Control
- By time setting

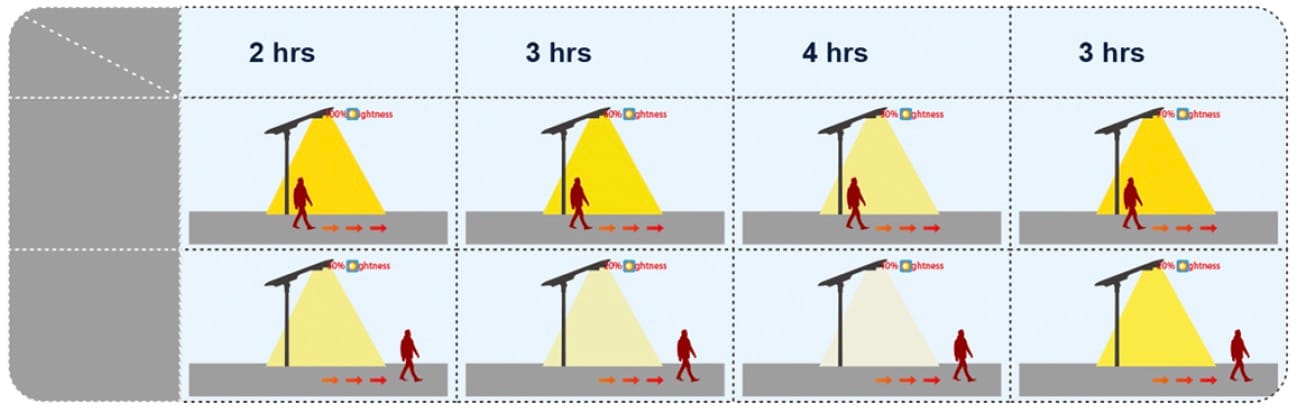

- On/off or dimming with motion sensor detection
- On/off or dimming with photocell detection
Accurate Operation & Fault Monitor
- Real-time monitor on each light working status
- Accurate report on fault detected
- Provide location of fault, no patrol required
- Collect each light operation data, such as voltage, current, power consumption
Extra I/O Ports for Sensor Expandability
- Environment Monitor
- Traffic Monitor
- Security Surveillance
- Seismic Activities Monitor
Reliable Mesh Network
- Self proprietary wireless control node
- Reliable node to node, gateway to node communication
- Up to 1000 nodes per network
- Max. network diameter 2000m

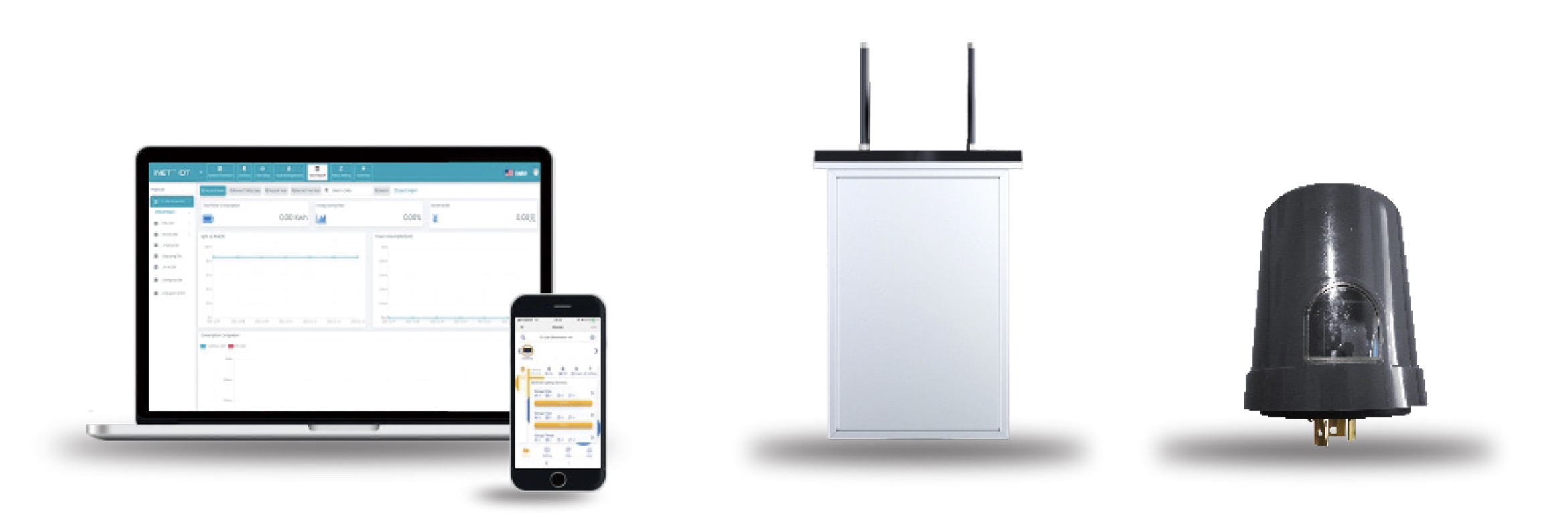

Easy-to-use Platform
- Easy monitor on each and all lights status
- Support lighting policy remote set-up
- Cloud server accessible from computer or hand-held device
white
Specifications (OFF-GRID) *All specifications & parameters @25° & subject to change without notice. All data tolerance +/- 5%
| Part# | Power | Modules | Efficacy S Series | System Lumen | Solar Panel | Battery | Product Dimensions |
|---|---|---|---|---|---|---|---|
| KS-STLS-I-20 | 20W | 1 | 210 LM/W | 4,200 LM | 55W/18V | 12.8V/12AH, 12.8V/18AH, 12.8V/24AH | 958×370×287mm |
| KS-STLS-I-30 | 30W | 1 | 210 LM/W | 6,300 LM | 55W/18V | 12.8V/18AH, 12.8V/24AH, 12.8V/30AH | 958×370×287mm |
| KS-STLS-I-40 | 40W | 1 | 210 LM/W | 8,400 LM | 55W/18V | 12.8V/18AH, 12.8V/24AH, 12.8V/30AH | 958×370×287mm |
| KS-STLS-I-50 | 50W | 1 | 210 LM/W | 10,500 LM | 75W/18V | 12.8V/24AH, 12.8V/30AH, 12.8V/36AH | 1270×370×287mm |
| KS-STLS-I-60 | 60W | 2 | 210 LM/W | 12,600 LM | 75W/18V | 12.8V/24AH, 12.8V/30AH, 12.8V/36AH | 1270×370×287mm |
| KS-STLS-I-80 | 80W | 2 | 210 LM/W | 16,800 LM | 105W/36V | 25.6V/18AH, 25.6V/24AH, 25.6V/36AH, 25.6V/42AH | 1170×550×287mm |
| KS-STLS-I-90 | 90W | 2 | 210 LM/W | 18,900 LM | 105W/36V | 25.6V/18AH, 25.6V/24AH, 25.6V/36AH, 25.6V/42AH | 1170×550×287mm |
Specifications* (HYBRID) *All specifications & parameters @25° & subject to change without notice. All data tolerance +/- 5%
| Part# | Power | Modules | Efficacy S Series | System Lumen | Solar Panel | Battery | Product Dimensions |
|---|---|---|---|---|---|---|---|
| KS-STLS-I-20H | 20W | 1 | 190 LM/W | 3,800 LM | 55W/18V | 12.8V/12AH, 12.8V/18AH, 12.8V/24AH | 958×370×287mm |
| KS-STLS-I-30H | 30W | 1 | 190 LM/W | 5,700 LM | 55W/18V | 12.8V/18AH, 12.8V/24AH, 12.8V/30AH | 958×370×287mm |
| KS-STLS-I-40H | 40W | 1 | 190 LM/W | 7,600 LM | 55W/18V | 12.8V/18AH, 12.8V/24AH, 12.8V/30AH | — |
| KS-STLS-I-50H | 50W | 1 | 190 LM/W | 9,500 LM | 75W/18V | 12.8V/24AH, 12.8V/30AH, 12.8V/36AH | 1270×370×287mm |
| KS-STLS-I-60H | 60W | 2 | 190 LM/W | 11,400 LM | 75W/18V | 12.8V/24AH, 12.8V/30AH, 12.8V/36AH | 1270×370×287mm |
| KS-STLS-I-80H | 80W | 2 | 190 LM/W | 15,200 LM | 105W/36V | 25.6V/18AH, 25.6V/24AH, 25.6V/36AH, 25.6V/42AH | 1170×550×287mm |
| KS-STLS-I-90H | 90W | 2 | 190 LM/W | 17,100 LM | 105W/36V | 25.6V/18AH, 25.6V/24AH, 25.6V/36AH, 25.6V/42AH | 1170×550×287mm |
EPA Value
| Part# | Power | Horizontal Angle Solar Panel (°) | EPA (ft²) |
|---|---|---|---|
| KS-STLS-I-20 | 20W | 0 | 0.31 |
| KS-STLS-I-30 | 30W | 5 | 0.33 |
| KS-STLS-I-40 | 40W | 10 | 0.67 |
| KS-STLS-I-50 | 50W | 15 | 0.99 |
| KS-STLS-I-60 | 60W | 20 | 1.31 |
| KS-STLS-I-80 | 80W | 25 | 1.62 |
| KS-STLS-I-90 | 90W | 30 | 1.92 |
Solar Panel Specifications
| Maximum Power (Pmax/W) | Open Circuit Voltage (Voc/V) | Short Circuit Current (Isc/A) | Maximum Power Voltage (Vmp/V) | Maximum Power Current (Imp/A) | Module Efficiency (%) | Output Tolerance (%) | Operating Temperature | Wind Load/Snow Load | NOCT | Temp Coefficient of Isc | Temp Coefficient of Voc | Temp Coefficient of Pmax |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55 | 22.8 | 3.25 | 18 | 3.1 | 24 | ±3 | 40°C~+85°C | 2400pa/5400pa | 45±2°C | +0.046%/°C | -0.275%/°C | -0.350%/°C |
| 75 | 4.31 | 4.2 | ||||||||||
| 105 | 43.2 | 3.15 | 36 | 2.9 |
High Performance Battery Pack Grade A+ Cell Specifications
| Specification | 12Ah | 18Ah | 24Ah | 30Ah | 18AH | 24AH |
|---|---|---|---|---|---|---|
| Nominal Voltage | 12.8V | 25.6V | ||||
| Charging Voltage | 14.6V | 29.2V | ||||
| Load Voltage | ≥12V | ≥24V | ||||
| Standard Charging Method | 5A(CC) charging to 14.6V; After CV(DC 14.6V) Charge until charging current ≤0.02C | 5A(CC) charging to 29.2V; After CV(DC 29.2V) Charge until charging current ≤0.02C | ||||
| Max Charging Current | ≤10A | ≤20A | ||||
| Max Discharge Current | ≤10A | ≤20A | ||||
| Over Current | ≤10A | ≤20A | ||||
| Cut OFF Discharge Voltage | 10V | 20V | ||||
| Operating Temperature Range | Standard LiFePO4: Charge: 0°C–60°C / 32°F–140°F & Discharge: -20°C–60°C / -4°F–140°F; Advanced LiFePO4: Charge: -20°C–60°C / -4°F–140°F & Discharge: -20°C–60°C / -4°F–140°F | |||||
| Storage | -20°C~60°C | |||||
| Battery Category | LiFePO4 | |||||
| Cycle Life | ≥4000 | |||||
MPPT Charge Controller Indicator Functions
| LED | Status | Function |
|---|---|---|
| Green LED | On | Solar panel is correctly connected, but not charged |
| Green LED | Fast flash (0.1s/0.1s) | Charging |
| Green LED | Flash (0.5s/0.5s) | Equal or Boost Charging |
| Green LED | Slow flash (0.5s/2s) | Float Charging, Lithium constant voltage charge |
| Yellow LED | Off | Over voltage protection |
| Yellow LED | On | Battery is normal |
| Yellow LED | Slow flash (0.5s/2s) | Battery voltage is low |
| Yellow LED | Fast flash (0.1s/0.1s) | Low voltage protection |
| Red LED | Off | Work normal (Standard version) |
| Red LED | On | The output power is 0 |
| Red LED | Super slow (0.2s/5s) | Open circuit protection |
| Red LED | Flash (0.5s/0.5s) | Over temperature |
| Red LED | Fast flash (0.1s/0.1s) | Short circuit or Over current protection |
MPPT Charge Controller Specifications
| Category | Specification | Details |
|---|---|---|
| Battery Parameters | System Voltage | 12V / 12V/24V / 12V/24V / 12V/24V |
| Max Charging Current | 8A / 10A / 15A / 20A | |
| Battery Type | Lithium | |
| Charging Volt. Target | 10.0~17.0V (Programmable, default: 12.6V) / 10.0~32.0V (Programmable, default: 12.6V) | |
| Charging Volt. Recovery | 9.2~16.8V (Programmable, default: 12.4V) / 9.2~31.8V (Programmable, default: 12.4V) | |
| Low voltage disconnect | 9.0~15.0V (Programmable, default: 9.0V) / 9.0~30.0V (Programmable, default: 9.0V) | |
| Low voltage reconnect | 9.6~16.0V (Programmable, default: 9.8V) / 9.6~31.0V (Programmable, default: 9.8V) | |
| 0 Charging protection | Yes, Slow, No (Programmable) | |
| Panel Parameters | Max volt on PV terminal | 60V / 55V / 55V |
| Max input power | 100W~120W / 130W~260W / 200W~400W / 260W~520W | |
| Dusk/Dawn detect volt. | 3.0~8.0V Programmable / 3.0~20.0V Programmable | |
| Day/Night delay time | 0~30min Programmable | |
| MPPT tracking range | Battery Voltage +1.0V ~ Voc×0.9 | |
| Load Parameters | Output Power | 1~60W / 10~60W / 20~120W / 10~90W / 20~180W |
| Output Voltage | 20~55V / 15~60V / 35~60V / 20~55V / 30~55V | |
| Current setting range | 0.15~3.0A Programmable / 0.15~4.0A Programmable / 0.15~6.0A Programmable | |
| Min current | 100mA Dimming | |
| Current precision | ±2% | |
| Dimming | 0~100% Programmable | |
| Voltage of start dimming | 10.0~17.0V (Lithium) / 10.0~32.0V (Lithium) | |
| Dimming percentage | 1~20% Programmable | |
| Max tracking efficiency | >99.9% | |
| Max charge conversion | 97.5% | |
| Max LED driver efficiency | 96% | |
| System Parameters | Communication mode | Infrared / 2.4G / RS485 |
| Induction mode | Infrared Human Sensing / Microwave Sensing | |
| Self consumption | 6~25mA | |
| Ambient temperature | -35°C~+60°C | |
| Ambient humidity | 0~100%RH | |
| Protection degree | IP67 | |
| Max Altitude | 4000m |

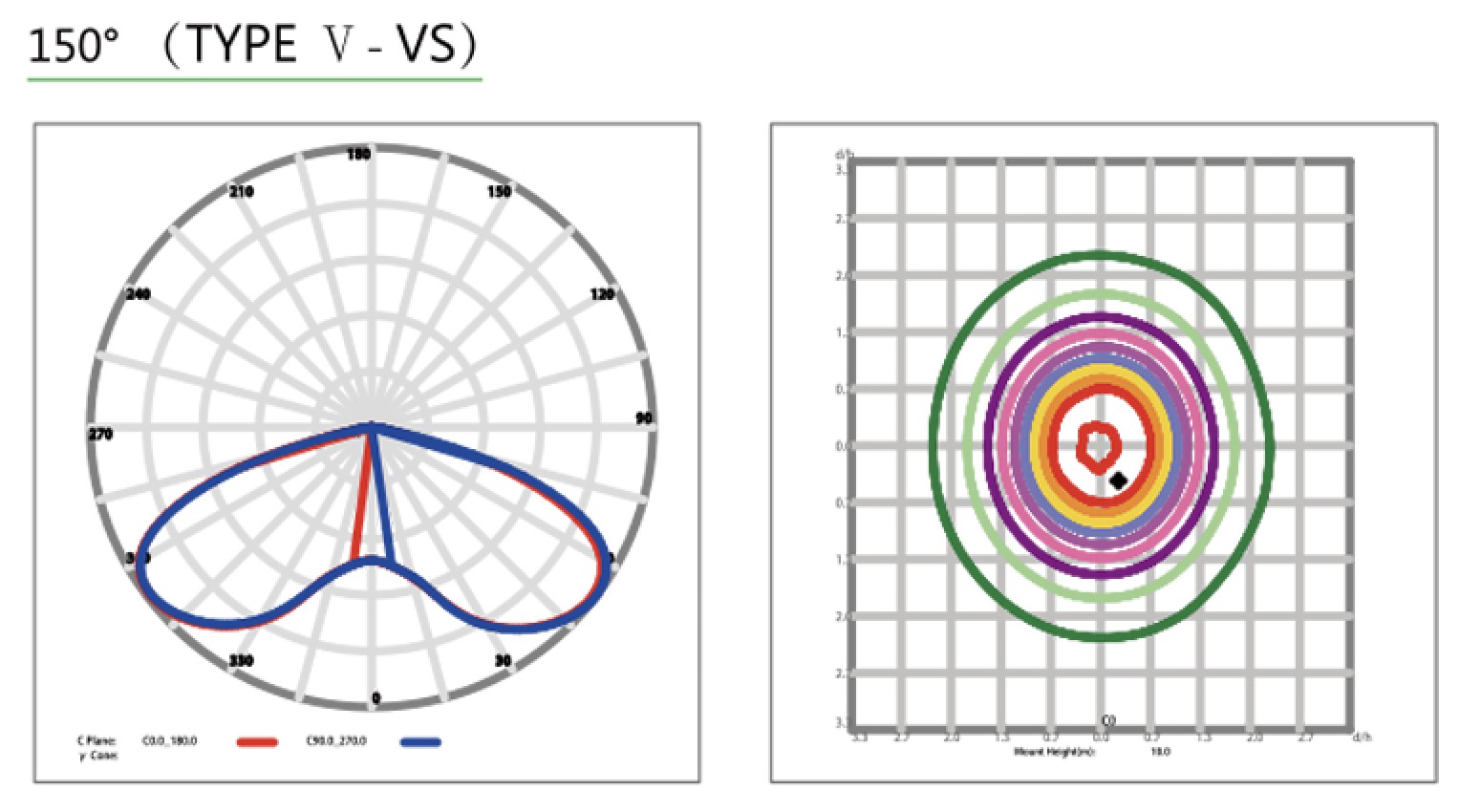

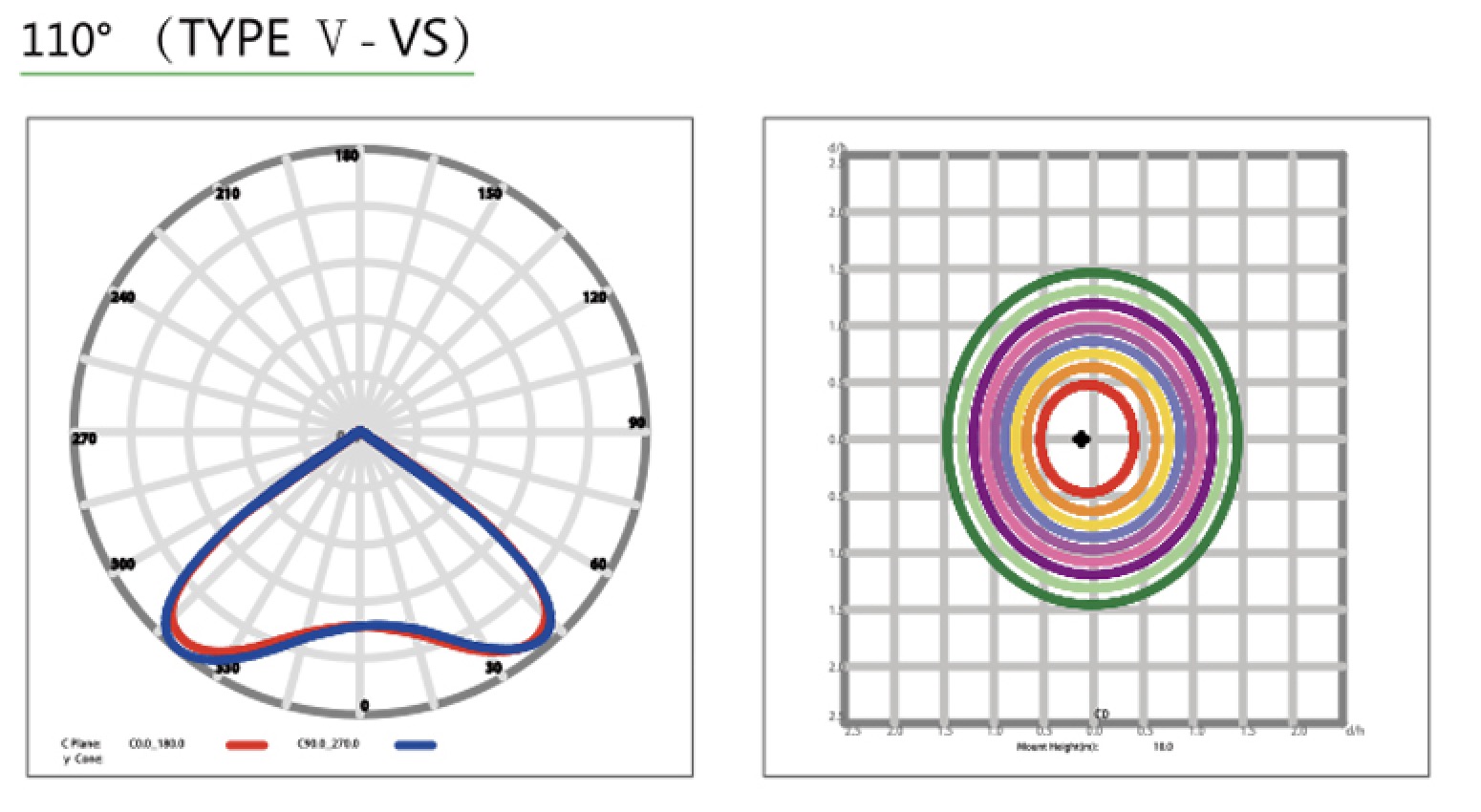

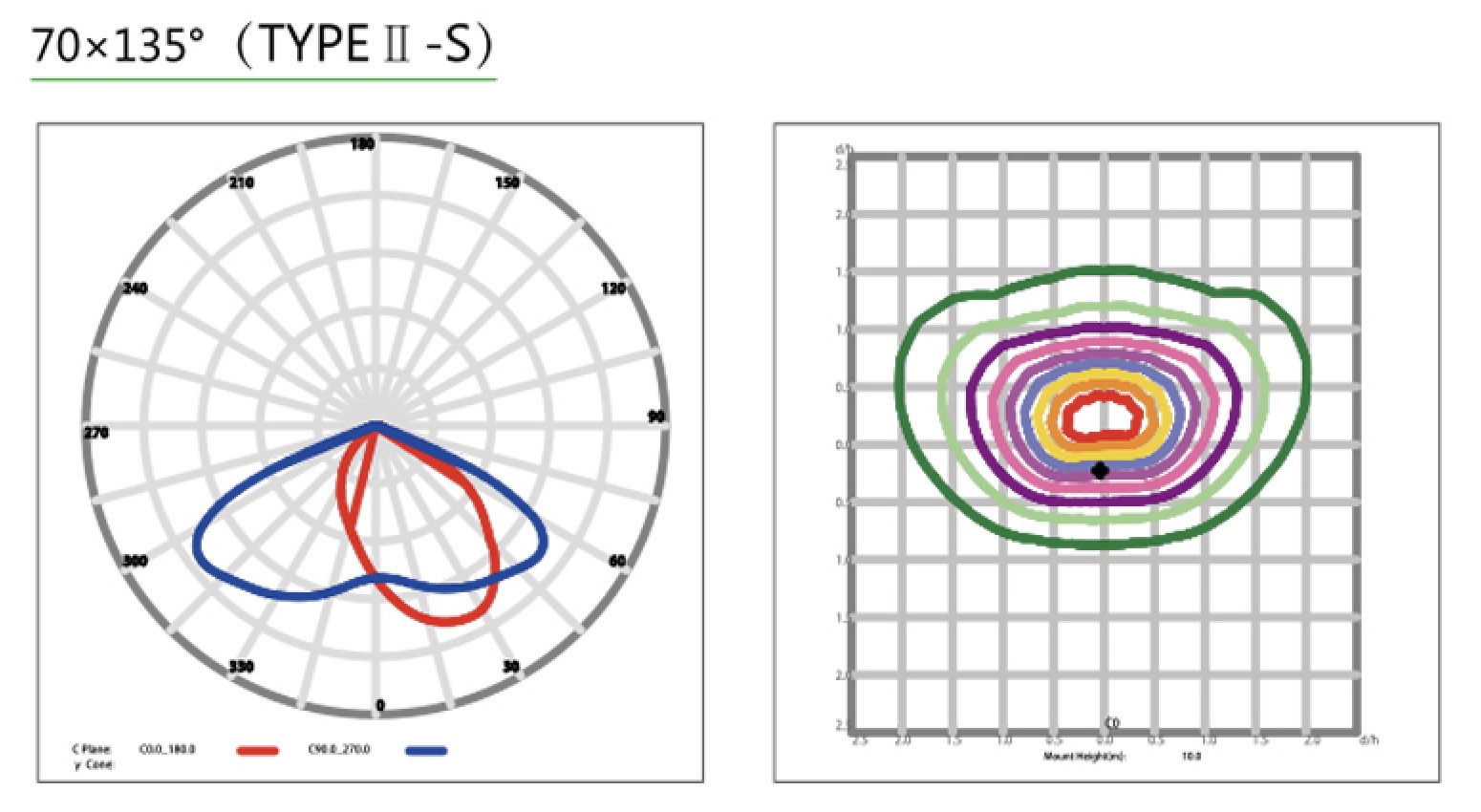

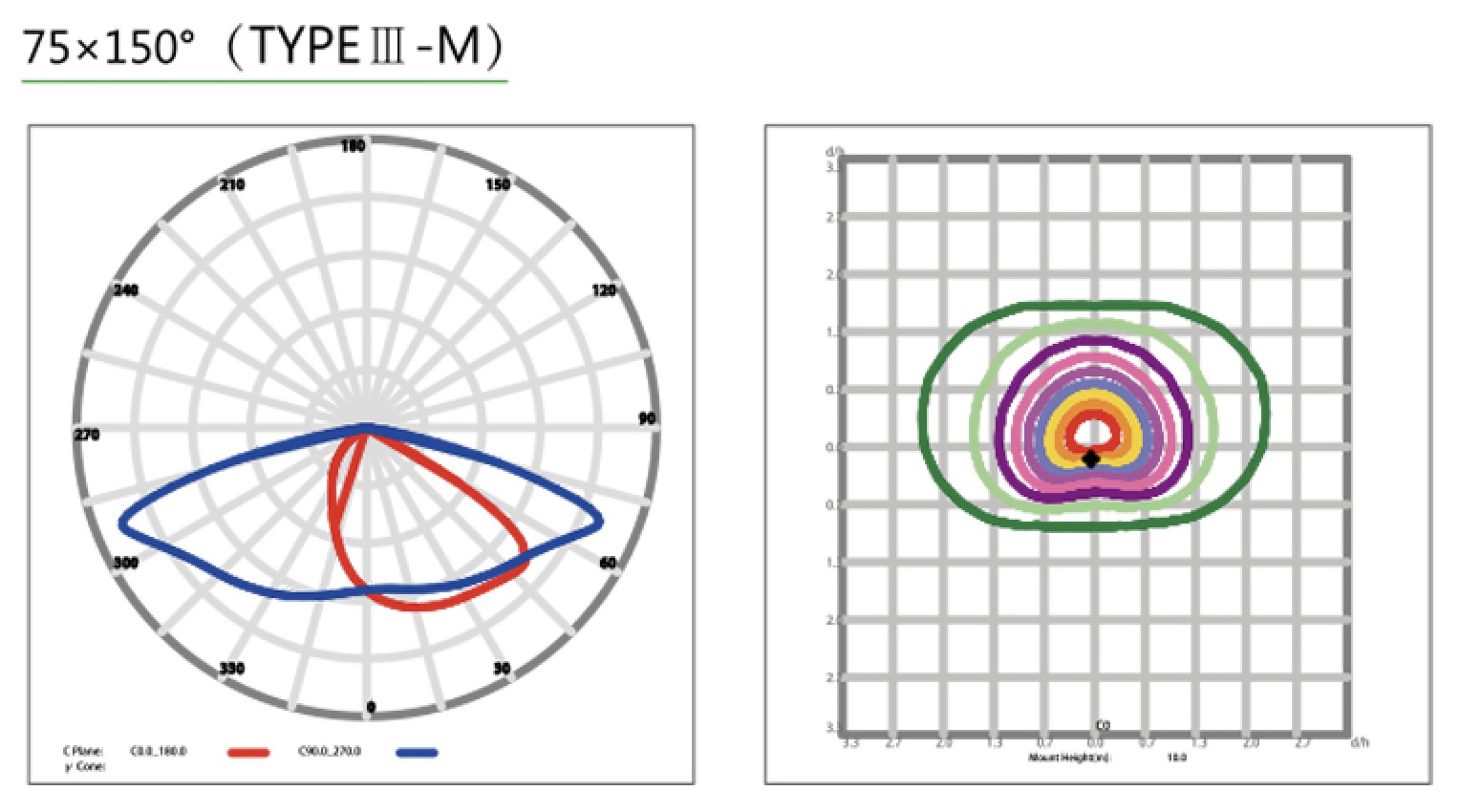

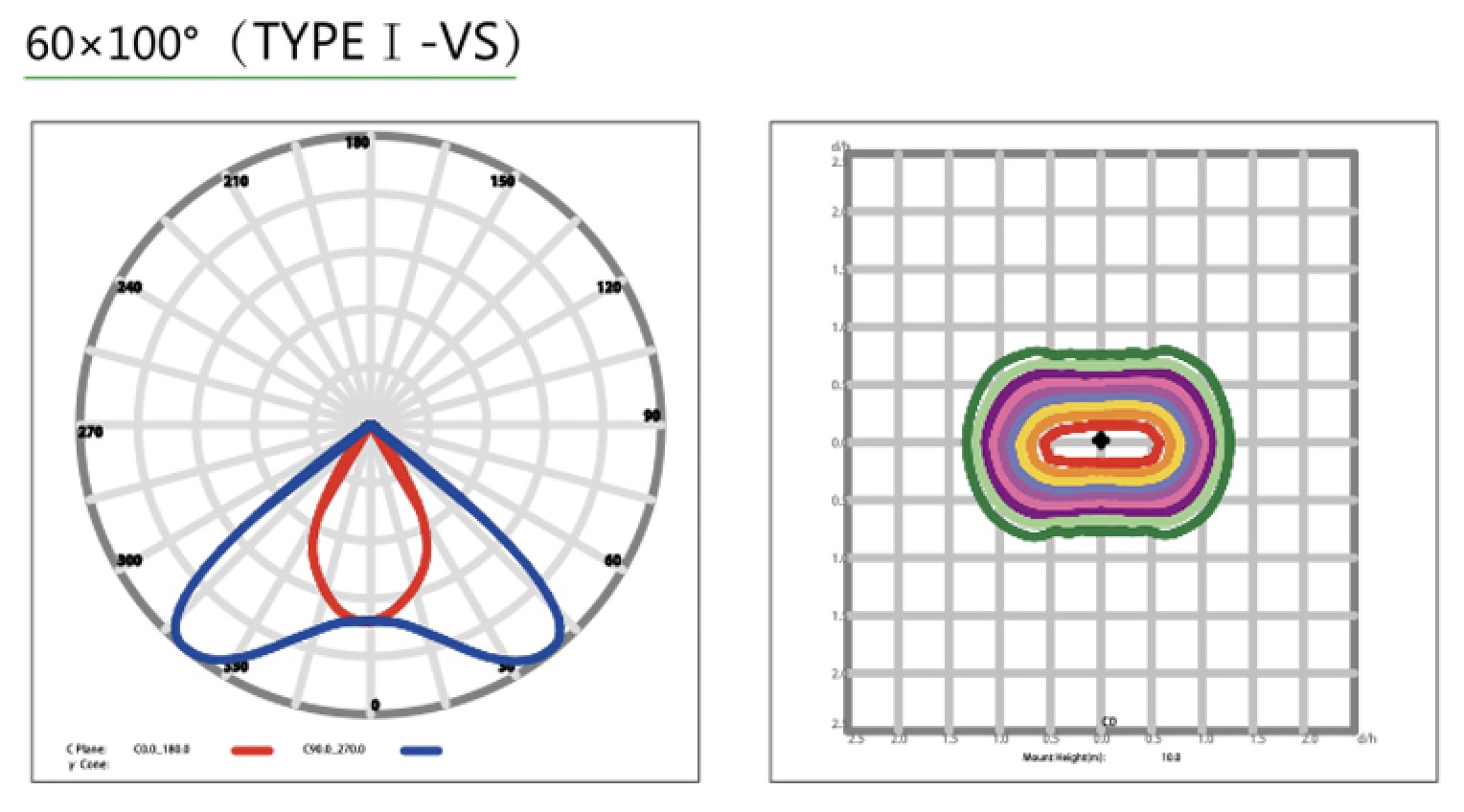

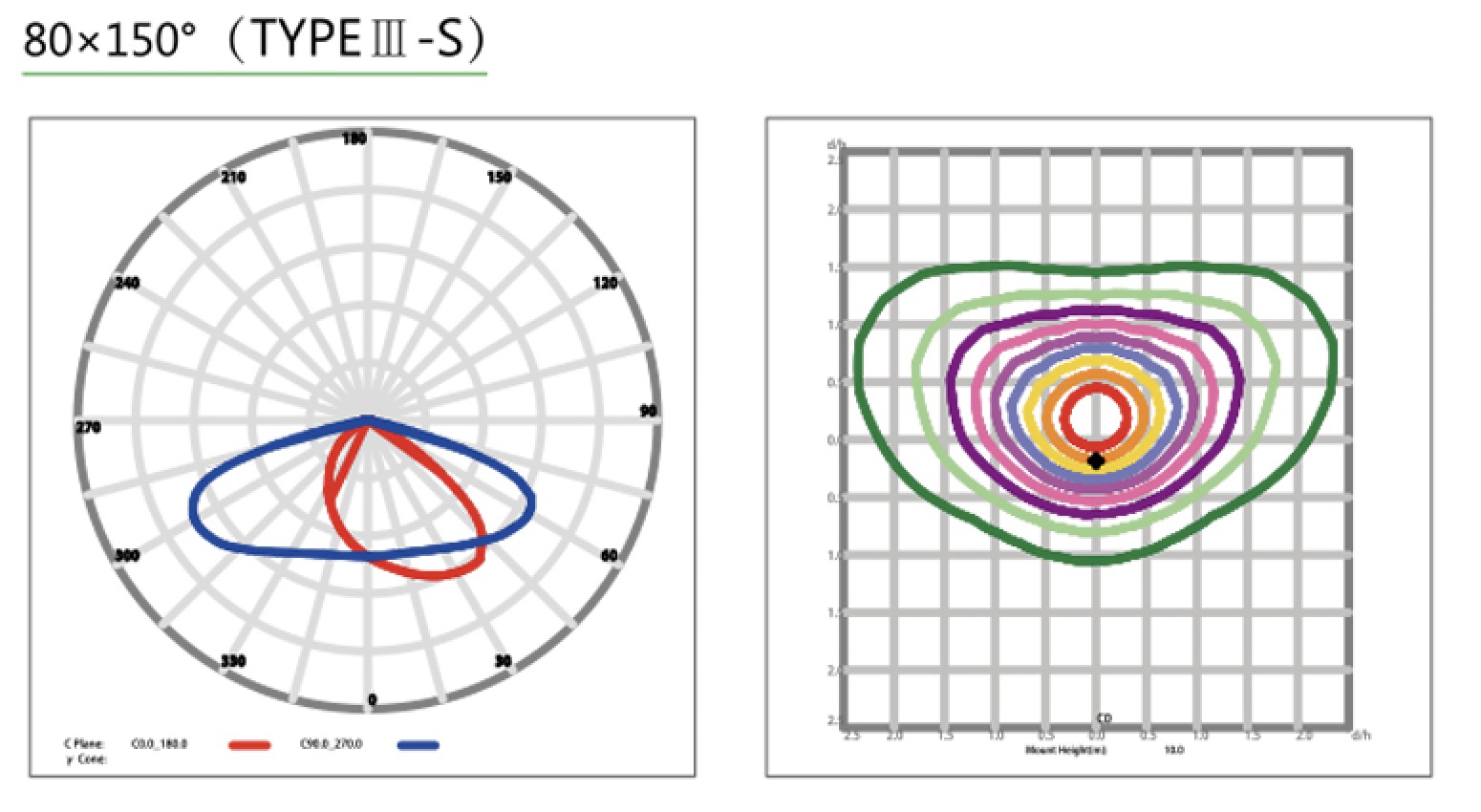

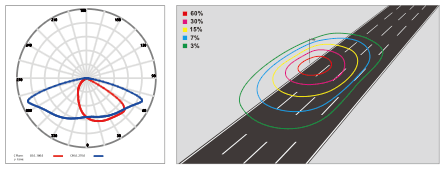

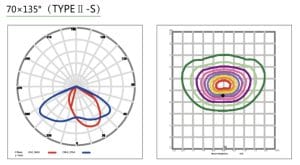

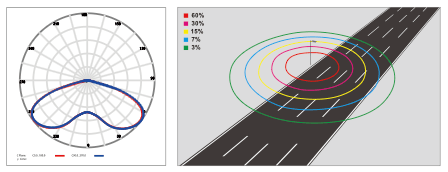

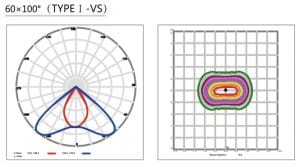

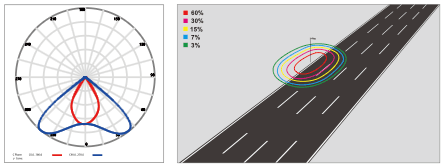

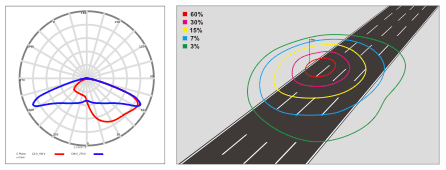

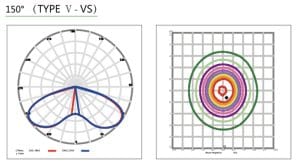

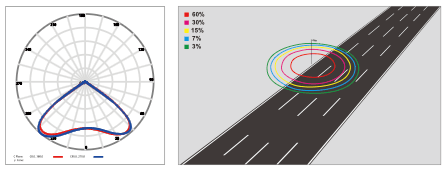

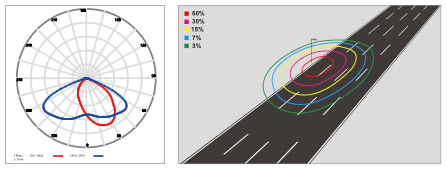

Photometric Report
