SolMax Solar LED Street Light System

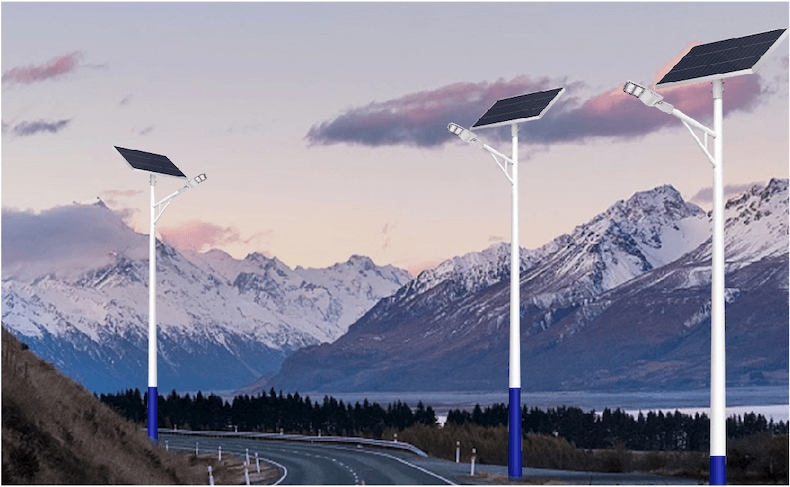

Overview

SOLMAX is an LED solar street-light system with a lithium battery, designed for reliable, grid-independent lighting. It pairs a 200 W solar panel with an 80 W streetlight (plus an optional 15 W blue-white-blue strip) and uses an MPPT smart charge controller for higher tracking efficiency and easy top-mount installation.

Key specs include up to 200 lm/W LED efficacy (≥100,000 h life), 22.5%-efficient IP67 solar panels, and 25.6 V lithium batteries in 85–100 Ah options rated for 2,000 cycles (-35 °C to 65 °C). The controller is IP66-rated, supports ≤60 V/≤10 A input with 15–60 V, up to 4.2 A output, and the system carries CE/ROHS certifications and IEC 60598-1/-2-3 compliance; remote control and T2S/M, T3S/M light distributions are available.

Features

icon-1
More than 2000 cycles
icon-3
Lumen efficiency up to 200lm/W
icon-5
MPPT smart solar controller
icon-2
Top Mounting, easy installation
icon-4
Energy-Efficient
icon-6
Eco-Friendly, low maintenance

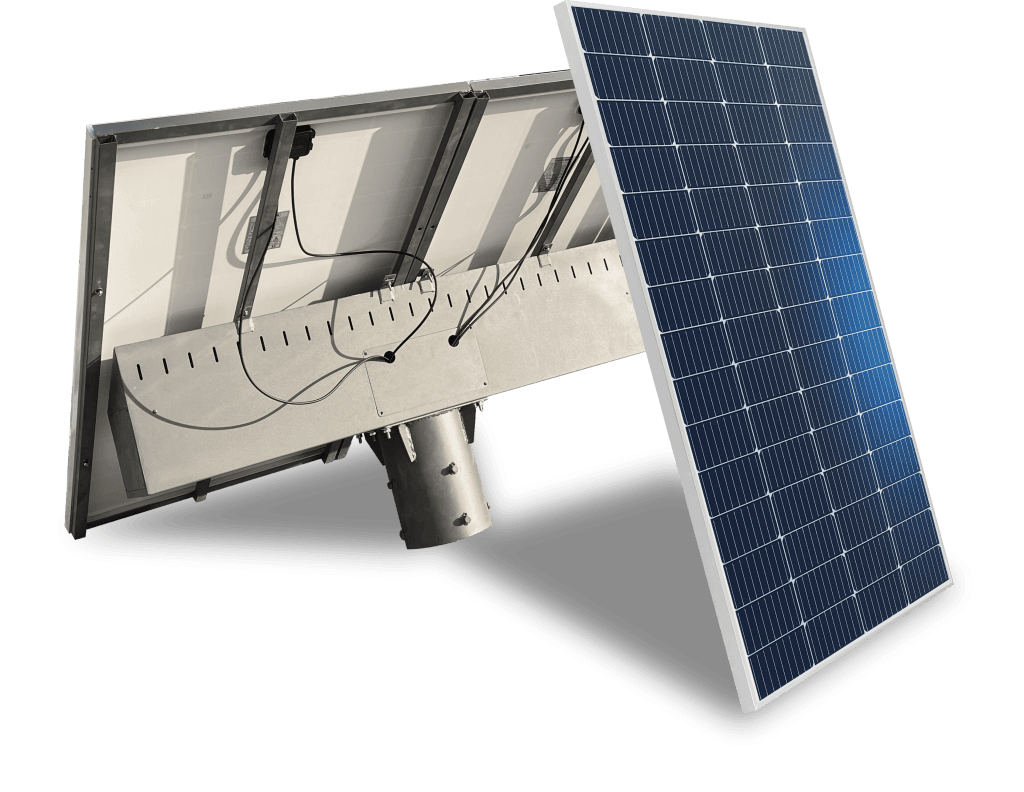

Solar Panel Parameters

param-1-image
Premium Material
param-2-icon
22.5% High Efficiency
param-3-icon
IP67 IP Degree

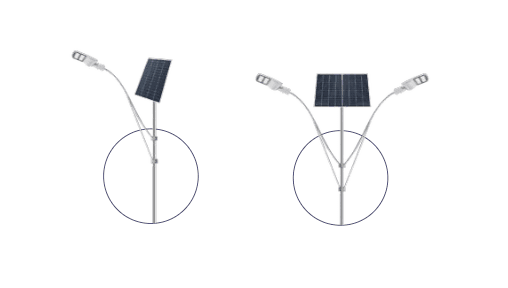

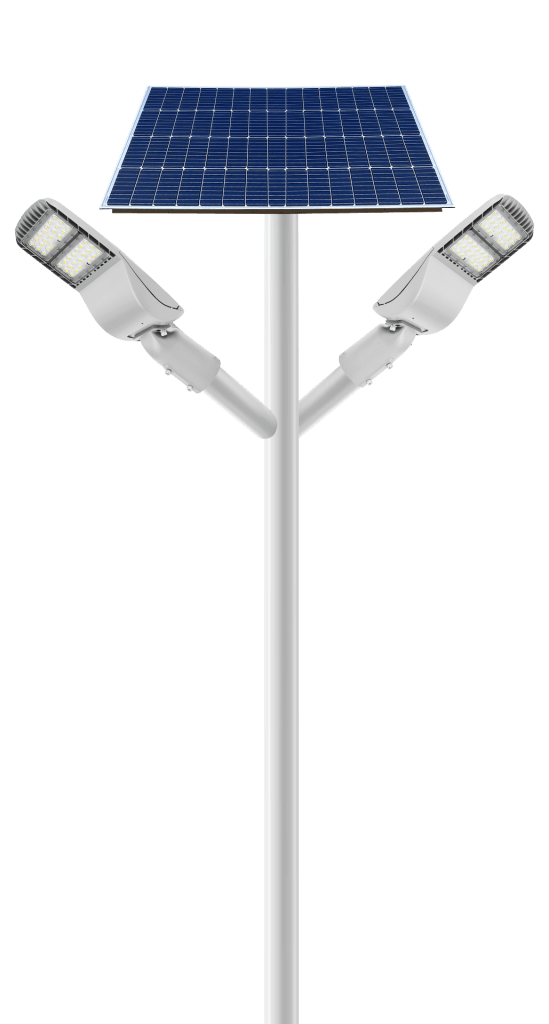

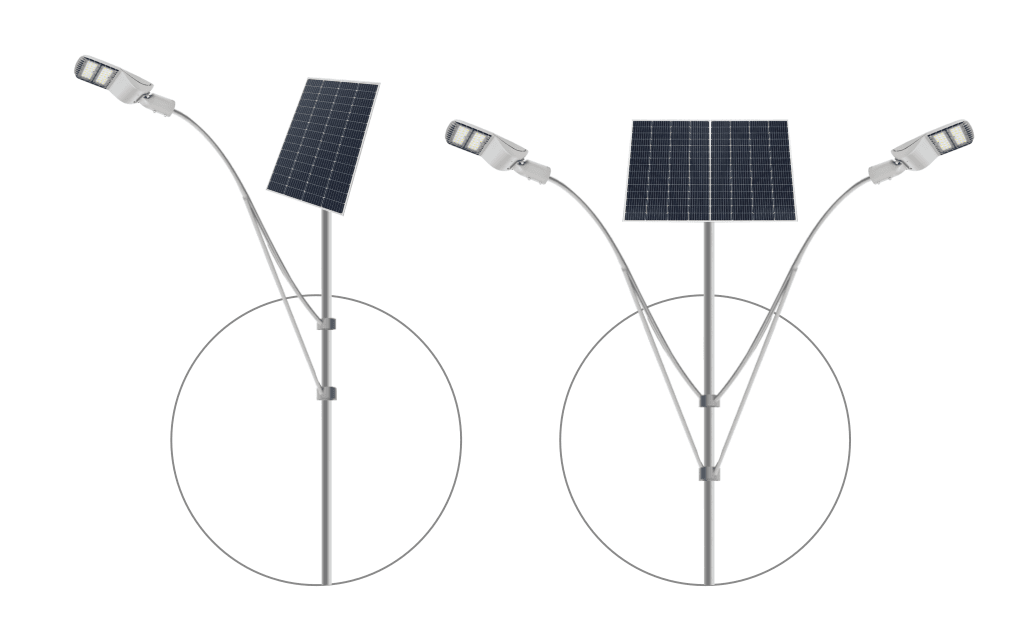

System Configuration

  • 200W Solar Panel
  • 80W LED Streetlight
  • 15W Blue-White-Blue Light Strip, 4.5m
  • 100Ah/25.6V Lithium Battery
  • 85Ah/25.6V Lithium Battery
grey
right
on

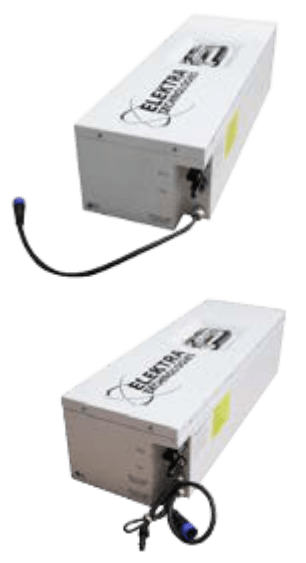

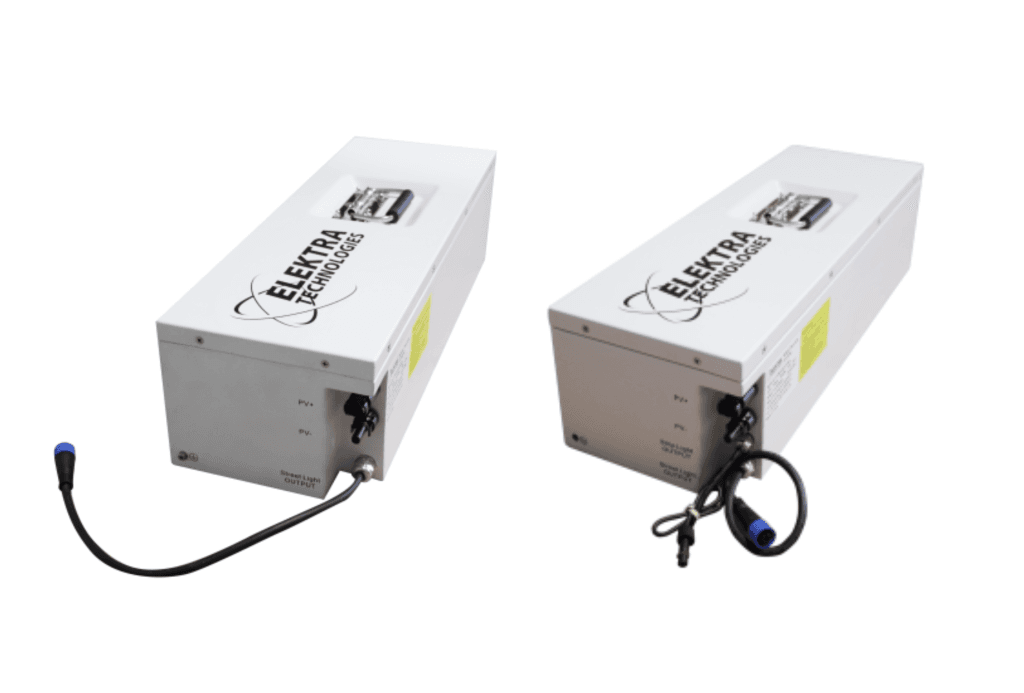

Battery Pack

  • Capacity: 25.6V 85Ah or 100Ah, or custom design.
  • Temperature for use: −35 °C to 65 °C
  • IP Degree: IP67
  • Lifetime: 2000 full discharge/charge cycles
grey
left
off

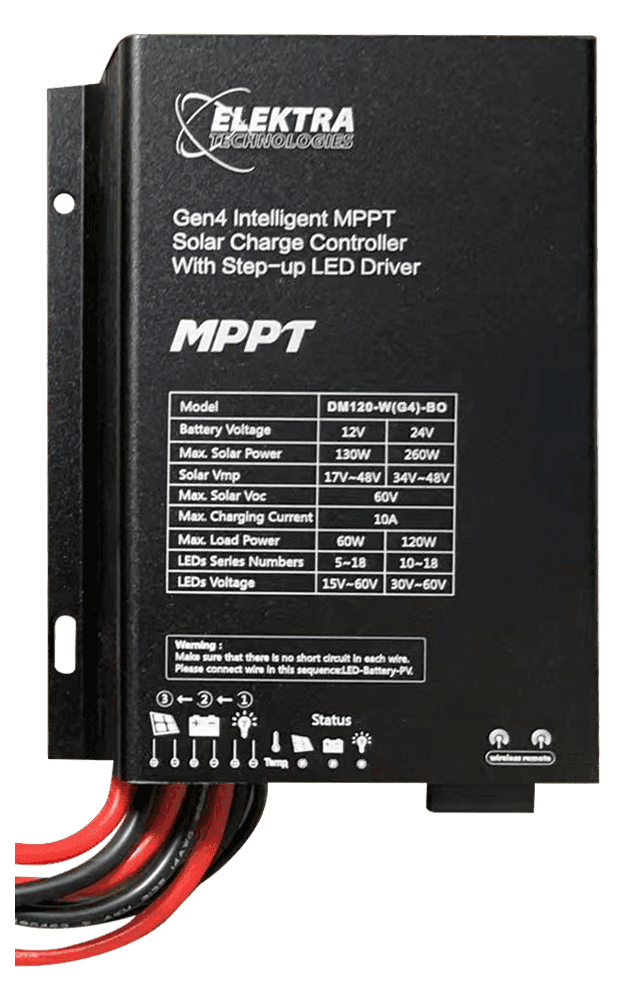

MPPT Charge Controller

  • Intelligent MPPT Solar Charge Controller with Step-up LED Driver
  • Maximum power tracking technology, higher tracking efficiency and faster speed.

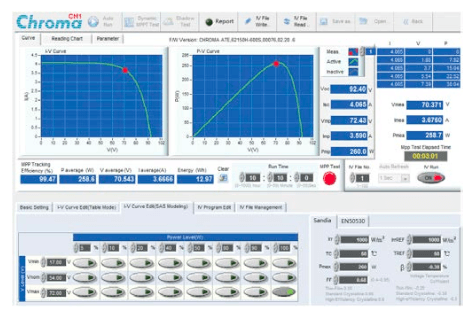

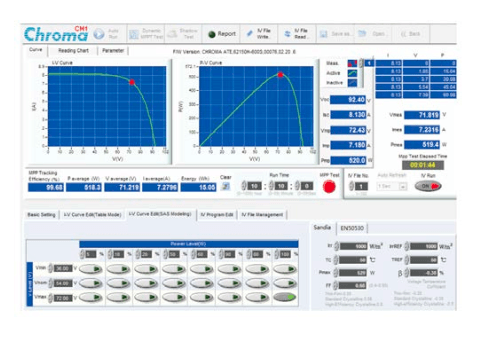

MPPT Controller Tracking Efficiency

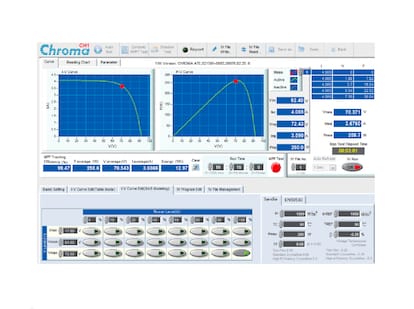

  • MPPT Tracking Efficiency – 12V Battery 260W
  • Vmp = 72V; Voc = 92V; Pmp = 260W

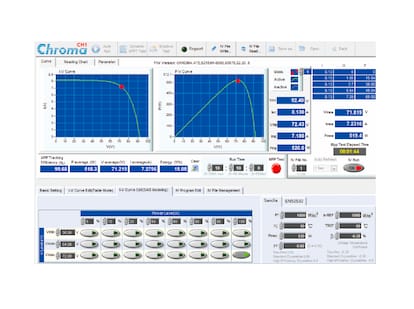

  • MPPT Tracking Efficiency – 24V Battery 520W
  • Vmp = 72V; Voc = 92V; Pmp = 520W
white
off

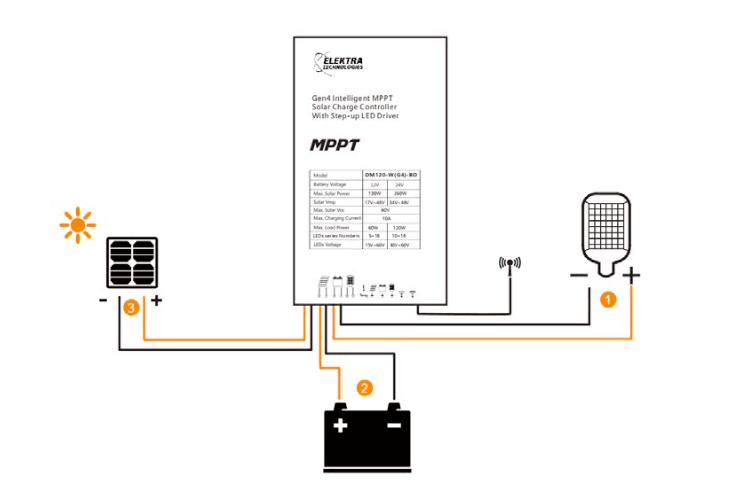

Solar System Wire Connection

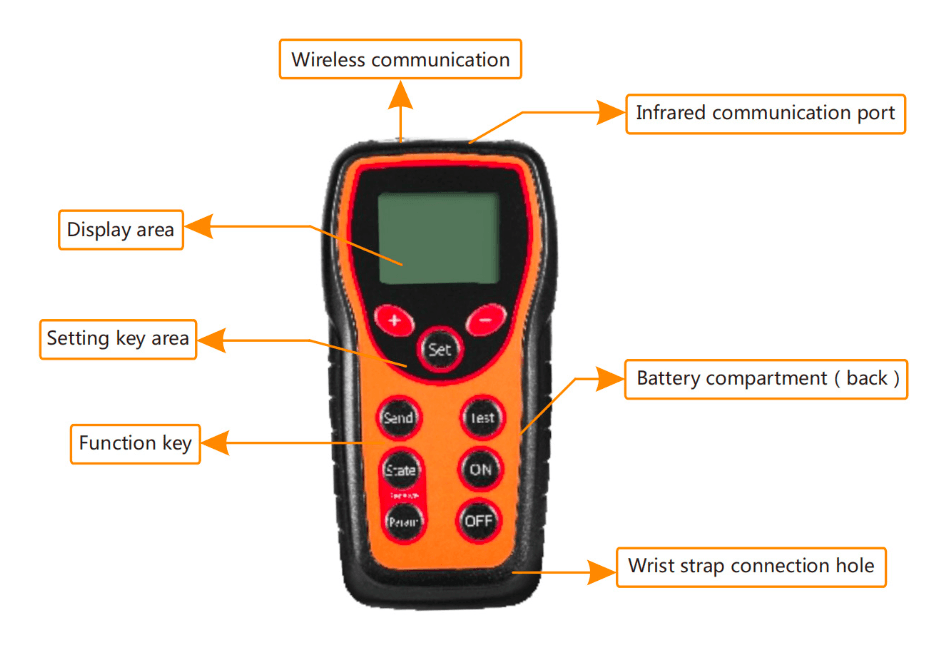

Remote Control

Remote Control

grey
on

Solar System Overall Technical Parameters

ItemModelHitech 1x80W System
ElectricalInput Voltage≤60V
Input Current≤10A
Charge Battery Voltage29.2V
Charge Battery Current≤15A
Output Voltage15–60V
Output Current50mA–4200mA
ParametersOperating Temperature−25°C to +45°C
Storage Temperature−40°C to +85°C
Other parametersProtection ClassIP66
Color Packing DimensionRAL7012
CertificationCE/ROHS; Standard IEC 60598-1 & IEC 60598-2-3

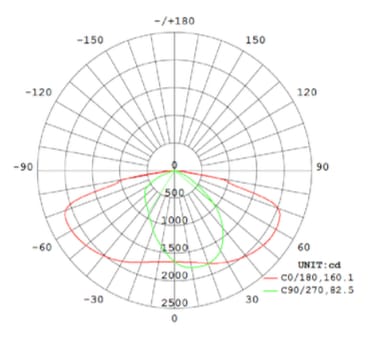

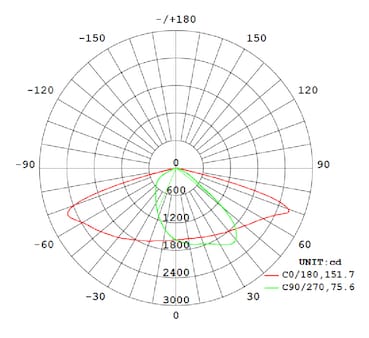

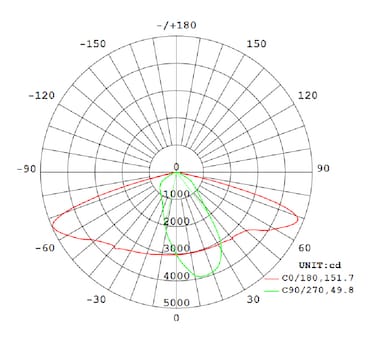

Photometric Report

Downloads

You can download all of this information and more in PDF format here.
