LED High Bay UFO

CCT & Power Switch

Overview

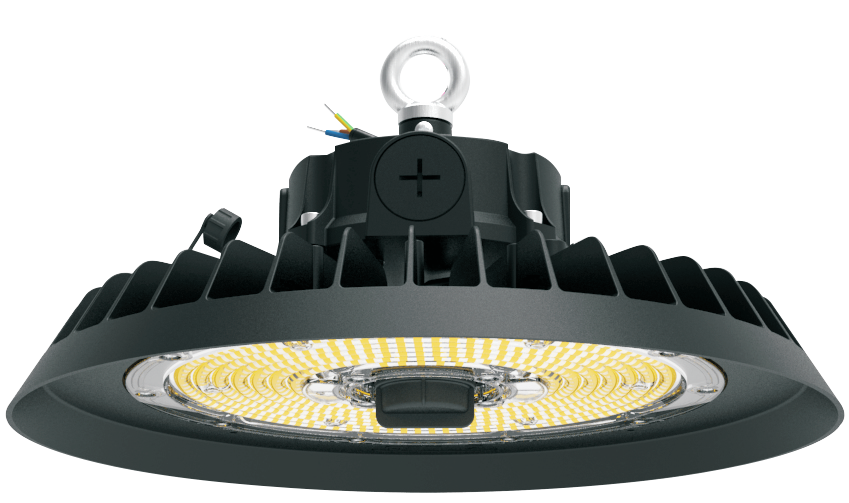

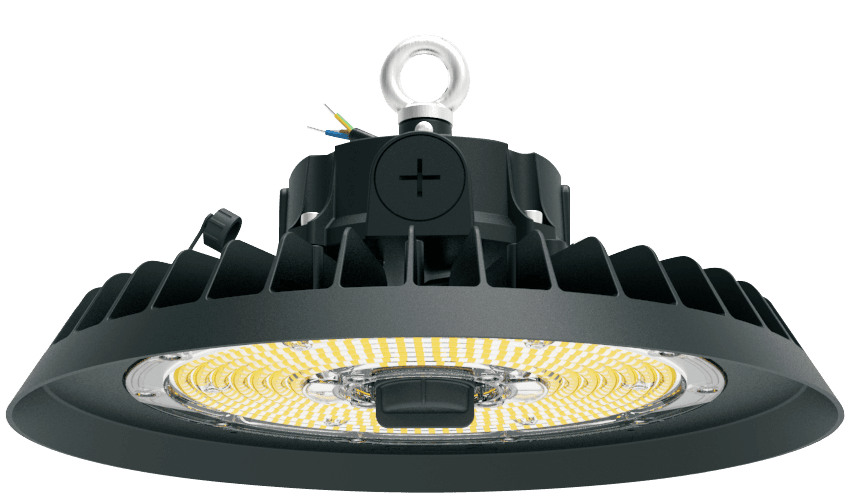

Illuminate your industrial or commercial spaces with the next generation of lighting performance — the Elektra LED High Bay UFO. Designed with a CCT and Power Switch for ultimate flexibility, this fixture lets you easily adjust color temperature (4000K, 5000K, or 6500K) and wattage (75W–200W) on-site, ensuring optimal brightness and efficiency for any environment.

Crafted with a die-cast aluminum housing and polycarbonate diffuser, it delivers exceptional heat dissipation, durability, and long-lasting clarity. The 3030 SMD LEDs offer up to 180 lm/W luminous efficiency, providing brilliant, uniform illumination while minimizing energy costs.

Featuring plug-and-play microwave or PIR sensor options, 0–10V/DALI dimming compatibility, and an optional emergency pack, this smart fixture is built for versatility. With an IP65 and IK10 rating, it withstands harsh conditions—perfect for warehouses, factories, gyms, and retail spaces.

Features

icon-1-high-bay
Die-cast powder coated construction and heat sink for optimum thermals and performance.
icon-4-high-bay
High efficacy up to 170lm/W.
icon-2-high-bay
CCT Adjustable 4000K, 5000K, 6500K or as custom design color.
icon-4-round-stadium

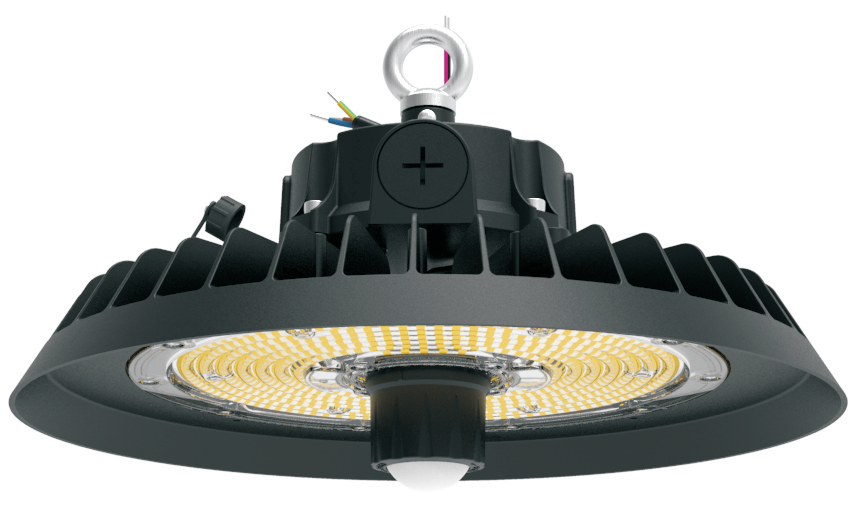

Plug and play microwave and PIR sensor options, offering maximum energy saving.
icon-3-high-bay
Intelligent plug and play emergency pack option offers a quick and simple conversion from standard to emergency highbay (cannot be used in conjunction with surface mounting bracket).
icon-6-round-stadium
IK10 and IP65 rating, ideal for industrial, commercial and retail applications.
icon-5-high-bay
1-10V dimmable / DALI dimmable for options.

Solar System Overall Technical Parameters

white

Structure

white

Technical Power Parameters

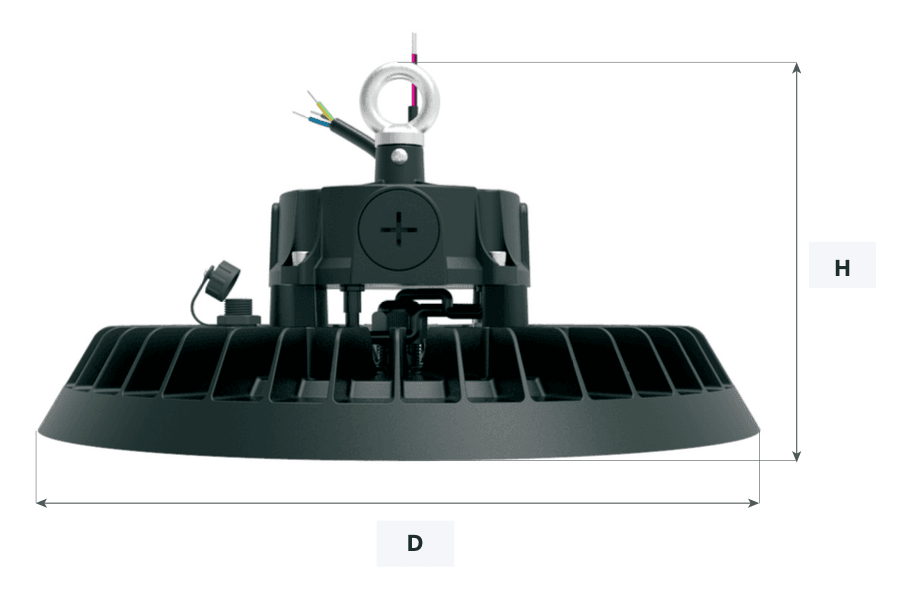

Model No.PowerSize (mm)
KSHBL07-125W75W/100W/125WD310xH165MM
KSHBL07-200W150W/175W/200WD355xH170MM

Technical Specifications All specifications & parameters @25°C & subject to change without notice. All data tolerance +/- 5%

Model No.KSHBL07-125WKSHBL07-200W
Wattage75W/100W/125W150W/175W/200W
Dimensions (L x H mm)Φ310x165mmΦ355x170mm
Input VoltageAC120-277V 50/60HzAC120-277V 50/60Hz
LED Chip3030 SMD3030 SMD
CRI> 70 / 80 Options> 70 / 80 Options
Color TemperatureCCT Adjustable 4000K/5000K/6500KCCT Adjustable 4000K/5000K/6500K
Dimming0-10V / Dali optional0-10V / Dali optional
Emergency FittingOptionsOptions
Luminous Flux Efficiency170 - 180 lm/W170 - 180 lm/W
Beam Angle120°120°
Operation Temp & Humidity-40 ~ 50°C, 20~95%RH No condensation-40 ~ 50°C, 20~95%RH No condensation
Storage Temp & Humidity-40 ~ 85°C, 10~95%RH No condensation-40 ~ 85°C, 10~95%RH No condensation
Life Span50000Hrs50000Hrs
IP Rating & IK ClassIP65 & IK10IP65 & IK10
Body MaterialAluminium Body & Polycarbonate DiffuserAluminium Body & Polycarbonate Diffuser
Installation ModeHook / Bracket Mount (Reference the Installation Manual)Hook / Bracket Mount (Reference the Installation Manual)
Warranty5 Years5 Years
