Overview

ElektraTech’s KSFL06 Series LED Flood Lights deliver high-performance, energy-efficient illumination designed for demanding commercial and outdoor environments. Powered by premium SMD 2835 LEDs and an ultra-efficient driver (>90% efficiency), each unit produces up to 160 lm/W of bright, consistent light while minimizing energy consumption. With customizable beam angles (30° / 60° / 90°), multiple color temperatures (3000K / 4000K / 5000K), and projection distances reaching 15–18 meters, this series provides adaptable lighting for architectural highlights, security lighting, parking lots, sports areas, building facades, and industrial applications.

Engineered for durability and long service life, the KSFL06 lineup features rugged die-cast construction, IP66 water and dust protection, and IK08 impact resistance, ensuring reliability even in harsh weather and challenging installation environments. Available in power options from 50W to 400W, each model maintains high performance across extreme operating temperatures (-35°C to 50°C) with stable, low-distortion output (THD ≤ 20%). Whether illuminating small exterior spaces or large commercial sites, the KSFL06 Series delivers exceptional brightness, resilience, and value.

Features

icon-1
High performance die-cast aluminium LED Floodlight suitable for industrial applications
icon-4-high-bay
High luminous efficiency, 160lm/w.
icon-2-high-bay
Adopting low consumption and high-efficiency SMD light source, with high luminous flux and good color rendering performance.
led-flood-light-icon-1
Adopting high-efficiency and high-reliability LED dedicated driving power supply, with high safety and stability.
led-flood-light-icon-3
Adopting PC optical lens, with 30°, 60°, 90° and 120°.
led-flood-light-icon-2
The protection level is IP66/IK08.

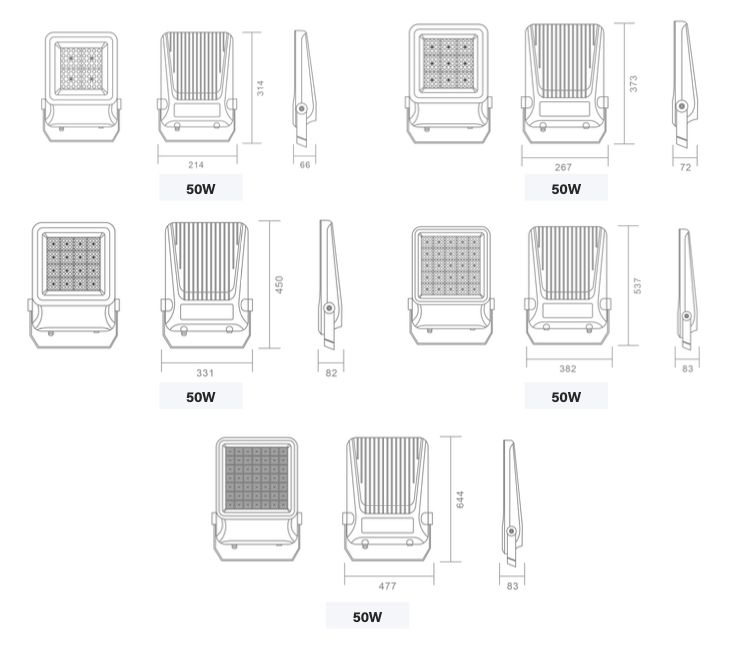

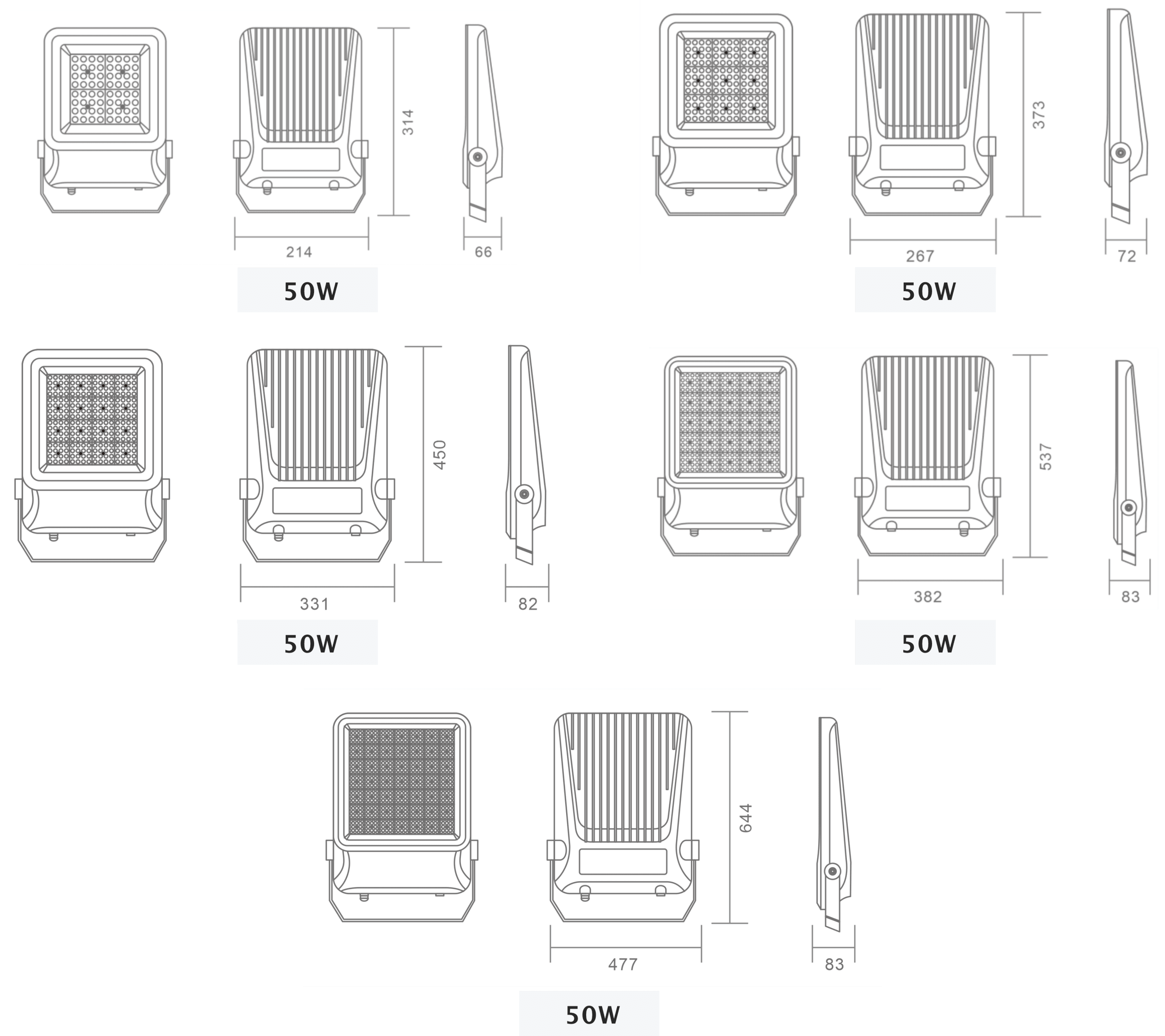

Dimensions Unit: mm

white

Bracket Dimensions Unit: mm

white

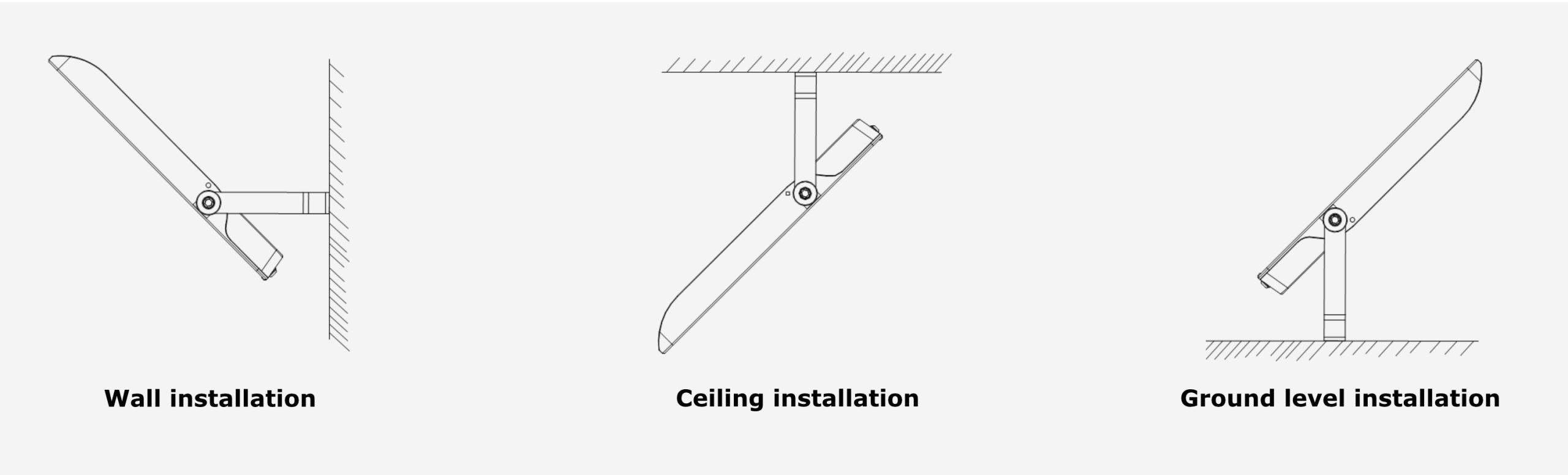

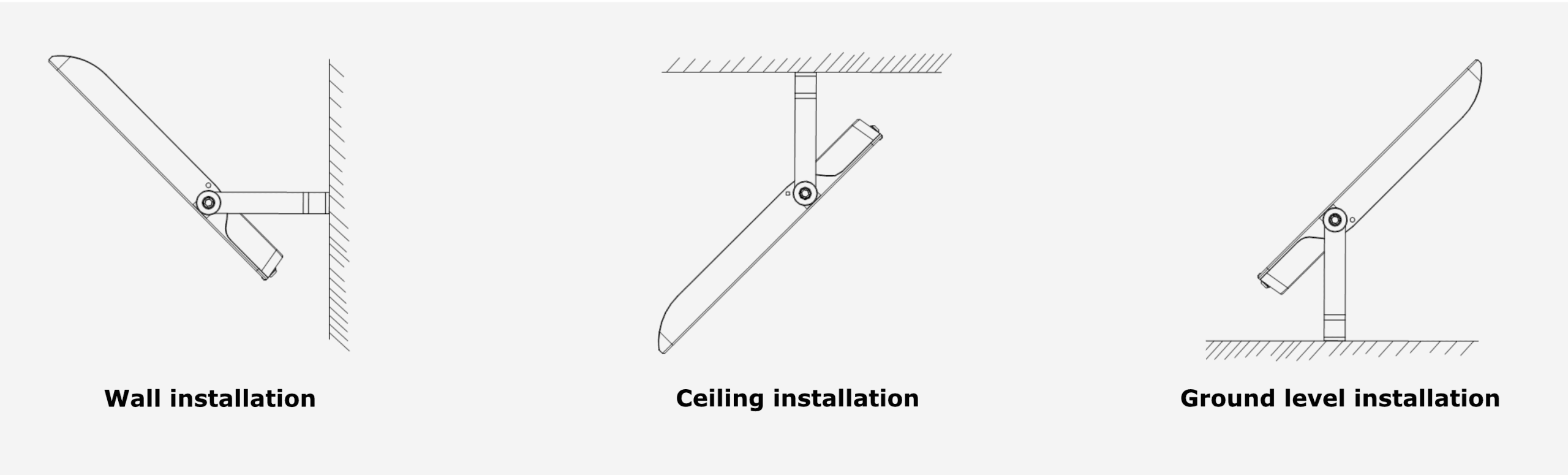

Installation Methods

white

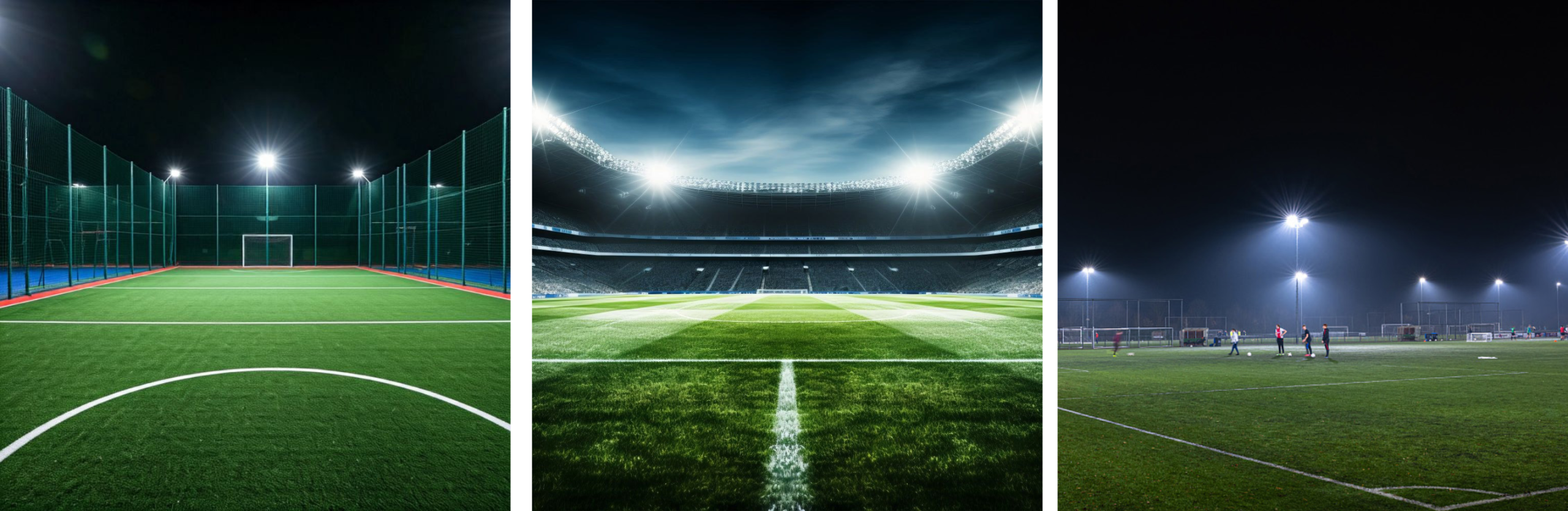

Application Methods

white

Package

Model NumberCarton Size (mm)QTY/ CTNG.W.
KSFL06-50W500x450x33012PCS20.60 KG
KSFL06-100W565x360x3958pcs24.50 KG
KSFL06-150W505x355x4705pcs21.70 KG
KSFL06-200W505x355x4705pcs22.70 KG
KSFL06-300W600x430x1201pcs9.87 KG
KSFL06-400W680x500x1251pcs11.30 KG

Technical Specification

Item No.KSFL06-50WKSFL06-100WKSFL06-150WKSFL06-200WKSFL06-300WKSFL06-400W
Size (mm)214x314x66267x373x72331x450x82331x450x82382x537x83477x644x83
Voltage (V)AC100-277V 50/60HzAC100-277V 50/60HzAC100-277V 50/60HzAC100-277V 50/60HzAC100-277V 50/60HzAC100-277V 50/60Hz
Power (W)50W100W150W200W300W400W
LED TypeSMD 2835SMD 2835SMD 2835SMD 2835SMD 2835SMD 2835
LED Quantity(PCS)50W100W150W200W300W400W
Luminous Flux (lm)160lm/W160lm/W160lm/W160lm/W160lm/W160lm/W
Color Temperature3000K / 4000K /5000K3000K / 4000K /5000K3000K / 4000K /5000K3000K / 4000K /5000K3000K / 4000K /5000K3000K / 4000K /5000K
Beam Angle30° / 60°/90°30° / 60°/90°30° / 60°/90°30° / 60°/90°30° / 60°/90°30° / 60°/90°
Color Rendering Index (CRI)Ra > 70 / 80 OptionRa > 70 / 80 OptionRa > 70 / 80 OptionRa > 70 / 80 OptionRa > 70 / 80 OptionRa > 70 / 80 Option
Power Supply Efficiency> 90 %> 90 %> 90 %> 90 %> 90 %> 90 %
Total Harmonic Distortion (THD)> 0.95> 0.95> 0.95> 0.95> 0.95> 0.95
IP Rank≤ 20%≤ 20%≤ 20%≤ 20%≤ 20%≤ 20%
LED DriverKAISTARKAISTARKAISTARKAISTARKAISTARKAISTAR
MaterialDie-castingDie-castingDie-castingDie-castingDie-castingDie-casting
LED Driver (Distance)15-18M15-18M15-18M15-18M15-18M15-18M
LifetimeSMD 2835SMD 2835SMD 2835SMD 2835SMD 2835SMD 2835
Suggest Projection DistanceIP 66 / IK08IP 66 / IK08IP 66 / IK08IP 66 / IK08IP 66 / IK08IP 66 / IK08
IP / IK RateSMD 2835SMD 2835SMD 2835SMD 2835SMD 2835SMD 2835
Temperature Operating Range-35℃ ~ 50℃-35℃ ~ 50℃-35℃ ~ 50℃-35℃ ~ 50℃-35℃ ~ 50℃-35℃ ~ 50℃
Humidity Operating Range20% ~ 95%20% ~ 95%20% ~ 95%20% ~ 95%20% ~ 95%20% ~ 95%
Storage Temperature Range-40℃ ~ 75℃-40℃ ~ 75℃-40℃ ~ 75℃-40℃ ~ 75℃-40℃ ~ 75℃-40℃ ~ 75℃
Storage Humidity Range10% ~ 80%10% ~ 80%10% ~ 80%10% ~ 80%10% ~ 80%10% ~ 80%
Net Weight /PC1.6KG2.9KG4.12KG4.32KG8.12KG10.2KG

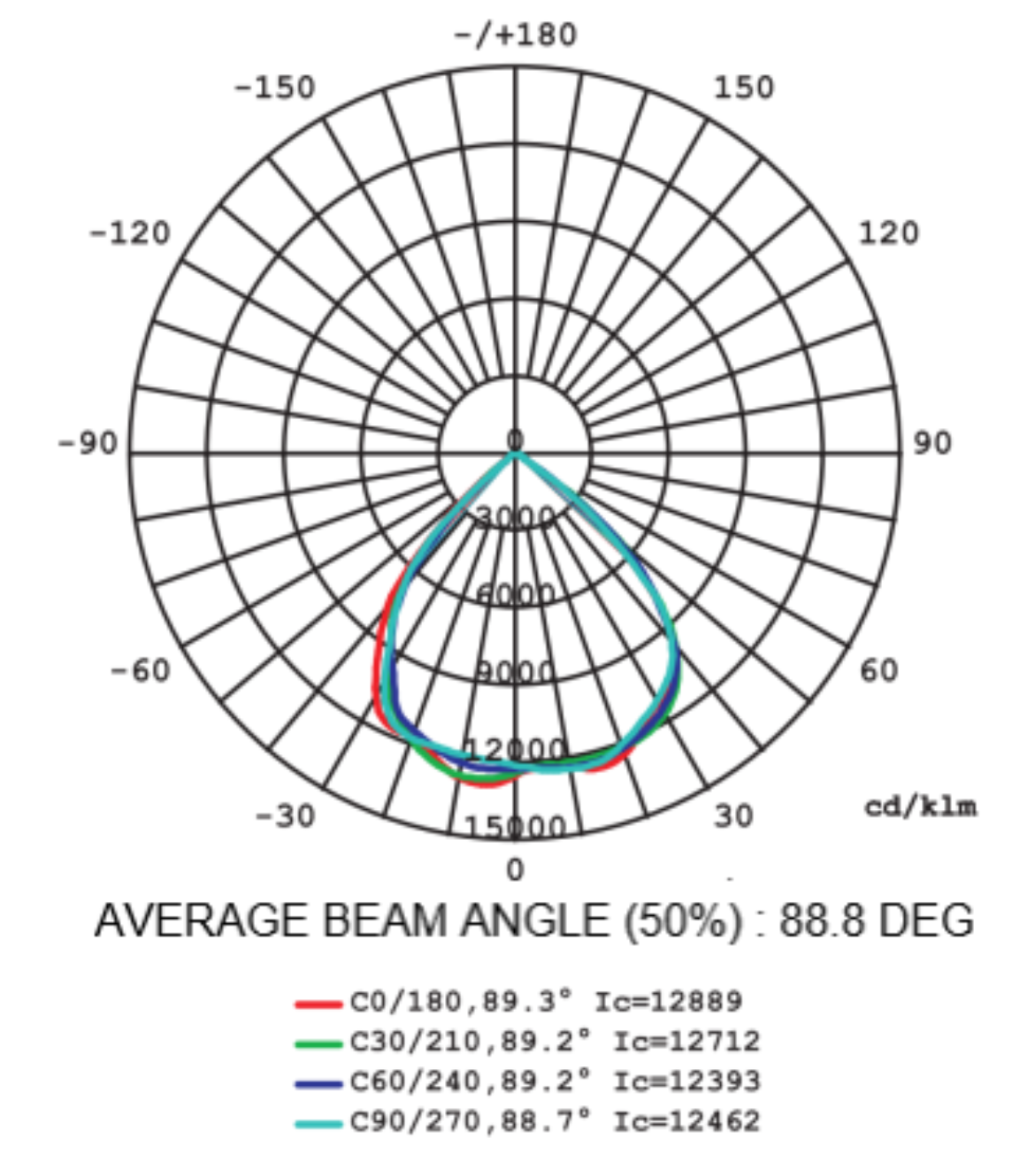

Photometric Report

Downloads

You can download all of this information and more in PDF format here.
