LED Canopy Light

3 CCT & Wattage Selectable

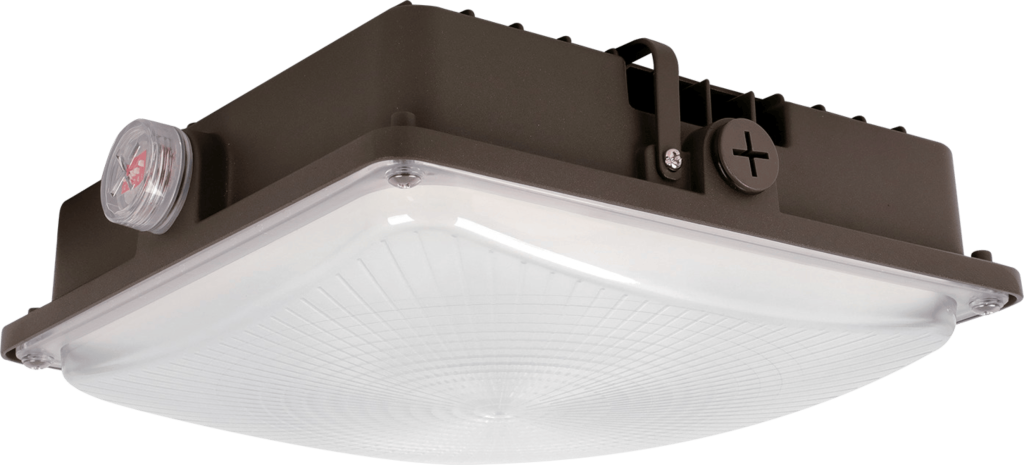

Overview

ElektraTech’s LED Canopy Light series delivers bright, uniform illumination with flexible performance options ideal for gas stations, parking structures, walkways, and commercial overhead lighting. With multi-watt and 3CCT selectable configurations, each fixture can be customized on-site to achieve the perfect brightness and color temperature. High lumen output—reaching up to 15,600 lm—combined with a wide 160° beam angle and >70 CRI ensures clear, consistent visibility in high-traffic environments.

Built for long-lasting reliability, the KSCP01 series features durable construction and 0–10V dimming capability, providing smooth energy-efficient control. Adjustable wattages and color temperatures (3000K / 4000K / 5000K) make the series adaptable for a range of project requirements, while efficient LED technology delivers dependable, high-performance lighting designed to withstand demanding conditions.

Features

icon-stacked-data
Low-profile, stylish design with durable powder coat finish
icon-4-high-bay
Powered by 0–10V dimming LED drivers
led-flood-light-icon-1
Color adjustable CCT: 3000K / 4000K / 5000K or tailor made
icon-thermometer-2
Ambient operating temperature: −40°C / −40°F to 45°C / 113°F
icon-4-etech
4KV surge protection
icon-hand-cog
Suitable for commercial and industrial applications

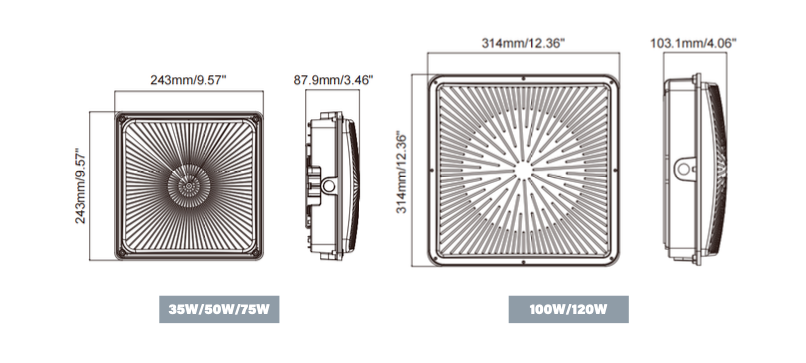

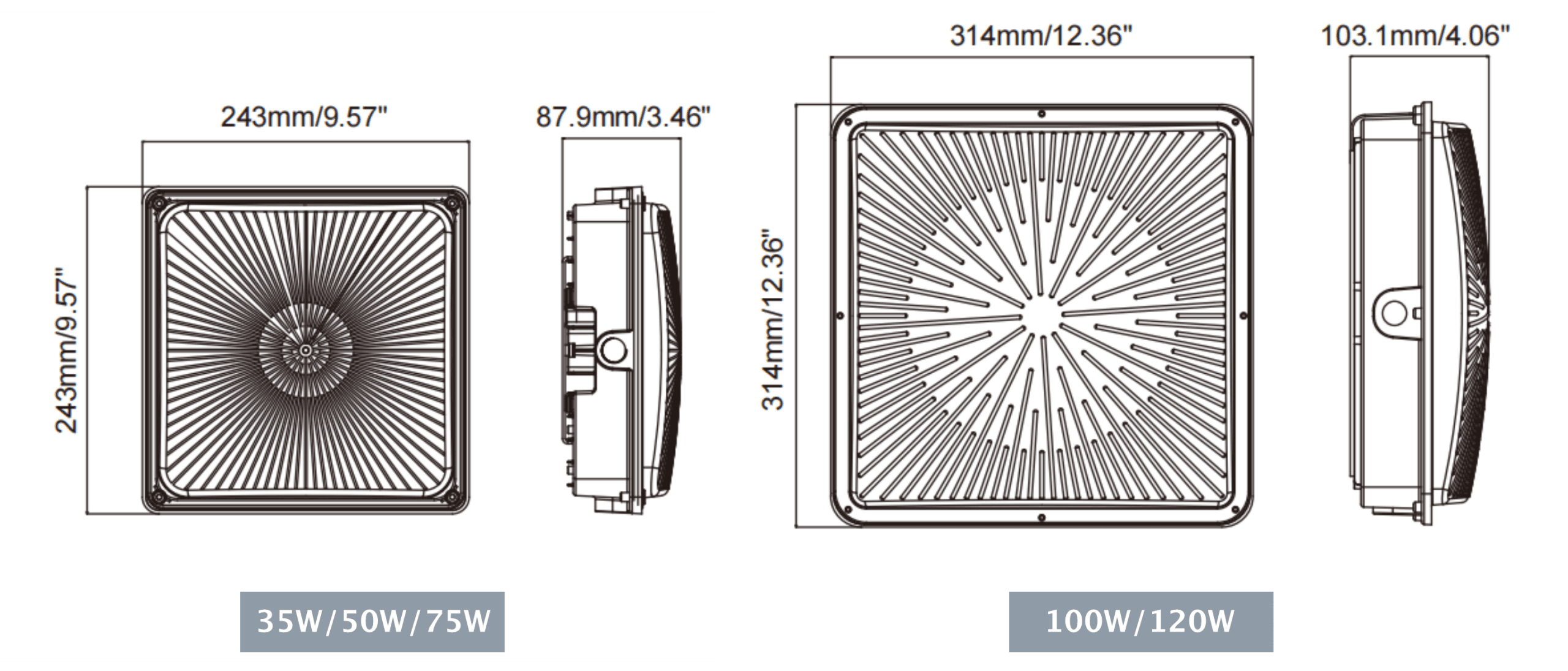

Dimensions

white

Installation Methods

white

CCT & Wattage Selectable

white

Technical Specification All specifications & parameters @25°C & subject to change without notice. All data tolerance +/- 5%

Model No.Model No. (Dimensions)Power(W)CCT(K)CRILumens(lm)Beam AngleDimmable
KSCP01-35W9.57"x9.57"x3.46" (243×243×87.9mm)354000K(Optional)>704550160°0-10V Dimmable
KSCP01-50W9.57"x9.57"x3.46" (243×243×87.9mm)504000K(Optional)>706500160°0-10V Dimmable
KSCP01-75W9.57"x9.57"x3.46" (243×243×87.9mm)754000K(Optional)>709750160°0-10V Dimmable
KSCP01-100W12.36"x12.36"x4.06" (314×314×103.1mm)1004000K(Optional)>7013000160°0-10V Dimmable
KSCP01-120W12.36"x12.36"x4.06" (314×314×103.1mm)1204000K(Optional)>7015600160°0-10V Dimmable
KSCP01-50W-CCT9.57"x9.57"x3.46" (243×243×87.9mm)30/40/50W Selectable3000K/4000K/5000K Adjustable>703900/5200/6500160°0-10V Dimmable
KSCP01-75W-CCT9.57"x9.57"x3.46" (243×243×87.9mm)45/60/75W Selectable3000K/4000K/5000K Adjustable>705800/7800/9700160°0-10V Dimmable
KSCP01-120W-CCT12.36"x12.36"x4.06" (314×314×103.1mm)72/96/120W Selectable3000K/4000K/5000K Adjustable>709300/12400/15600160°0-10V Dimmable

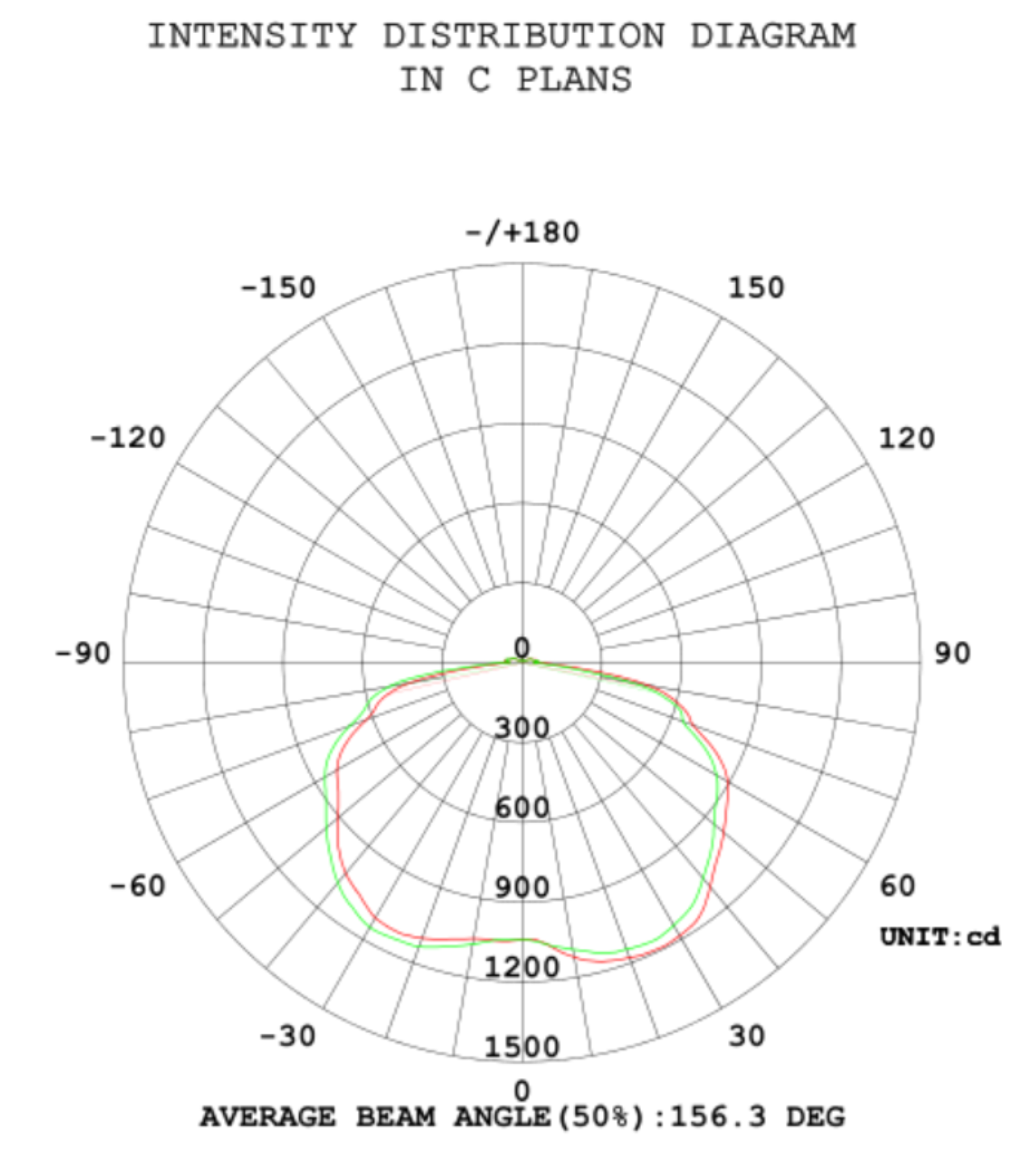

Photometric Report

Downloads

You can download all of this information and more in PDF format here.
