ETECH 3

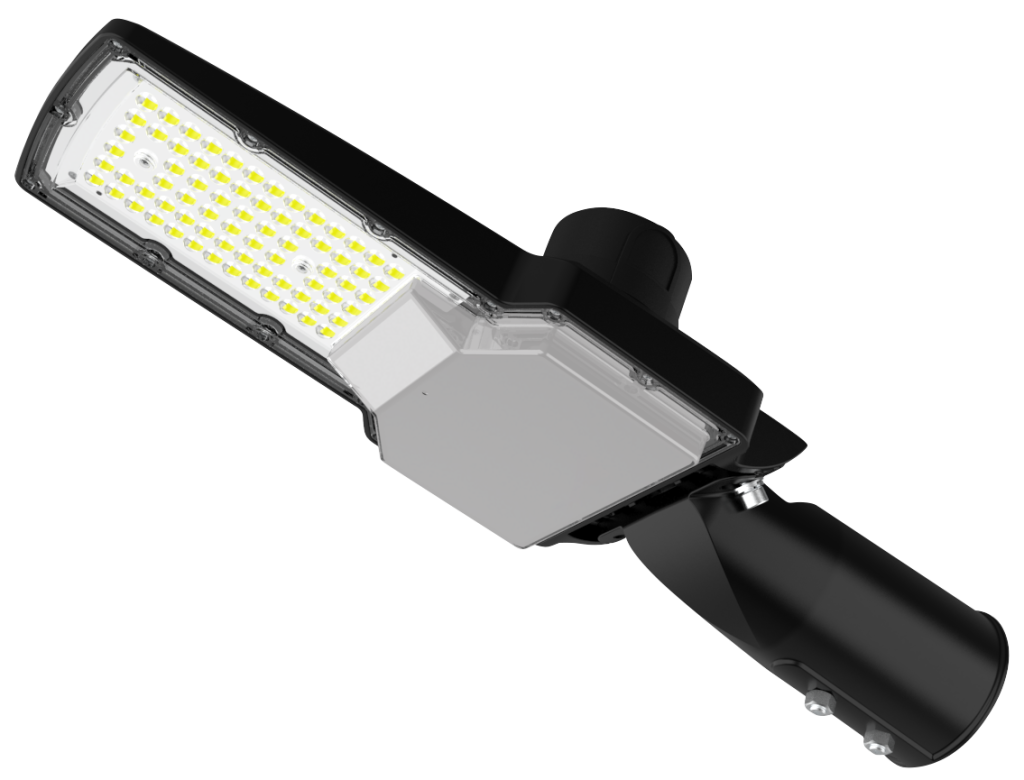

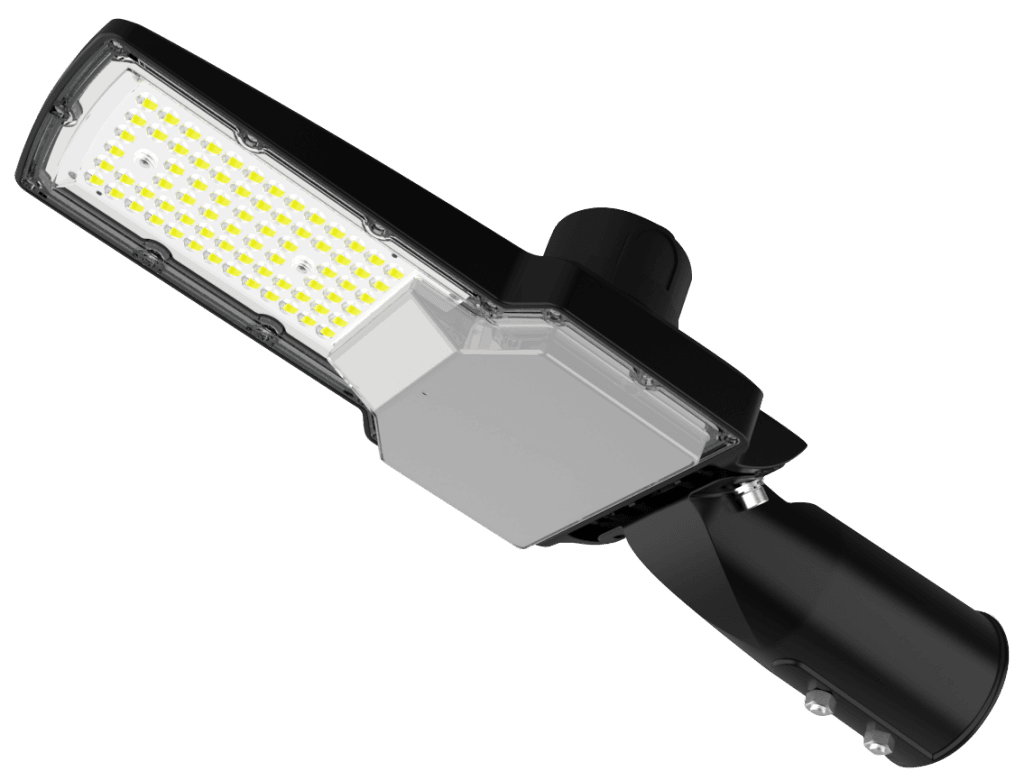

LED Street Light

Overview

The ETECH 3 LED Street Light combines cutting-edge performance with sleek, durable design to deliver reliable, energy-efficient illumination for streets, parking lots, and public spaces. Built with premium SMD 3030 LEDs and a robust ADC12 aluminum housing, it provides exceptional brightness, long lifespan, and outstanding resistance to harsh weather.

Available in 30W–180W models, ETECH 3 offers flexible lighting options with 3000K, 4000K, and 5000K color temperatures to suit any environment. Its 160–170 lm/W efficiency, IP65 / IK08 protection, and 10KV surge protection ensure maximum reliability and performance even in demanding outdoor conditions.

Designed for easy installation and compatibility, the series supports 3, 5, or 7-pin NEMA bases and optional 0–10V dimming. With a 100,000-hour LED lifetime and wide operating temperature range (–40°C to +50°C), the ETECH 3 delivers sustainable lighting that’s built to last.

Features

Patented design & private mould, integrated die-casting aluminum.

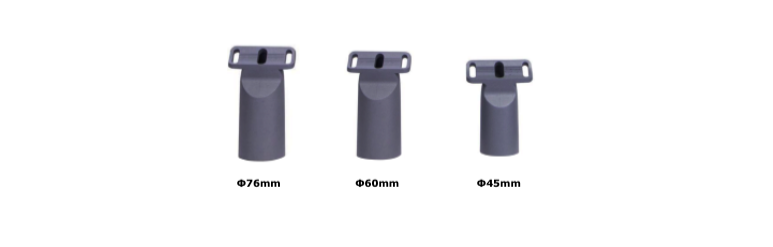

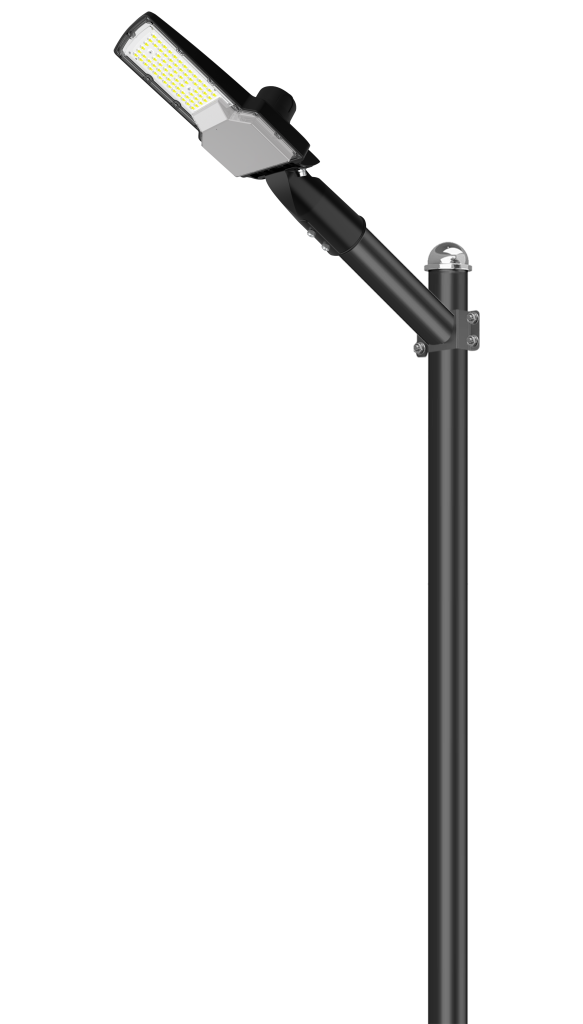

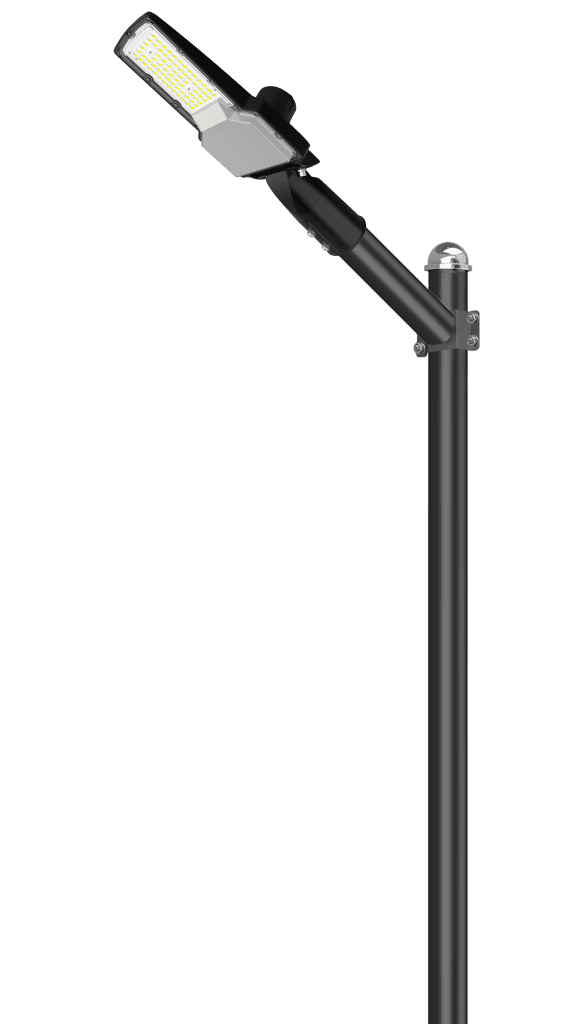

Flexible Mounting – Horizontal Mounting and Vertical Mounting with adjustable inclination angle (Anti-theft option).

High lumen efficiency up to 170lm/W.

Lightning protection with additional 10KV SPD.

Luminous intensity distribution: T2S / T2M / T3M options.

NEMA base ready for Intelligent Smart City Lighting.

Inbuilt spirit level for ease of alignment.

Optional NEMA Base: 3/5/7 Pins.

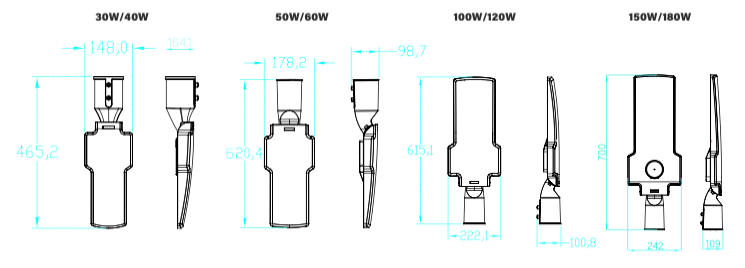

Dimension Unit: mm

white

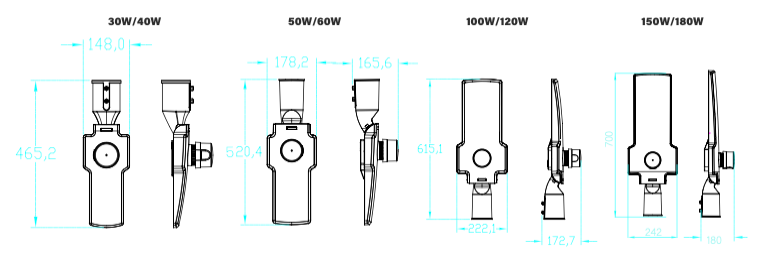

With NEMA Base (Optional NEMA Base: 3/5/7 Pins)

white

Mounting Hole

white

Technical Specifications All specifications & parameters @25°C & subject to change without notice. All data tolerance +/- 5%

Specification	ETECH3-030W	ETECH3-050W	ETECH3-100W	ETECH3-150W
Specification	ETECH3-040W	ETECH3-060W	ETECH3-120W	ETECH3-180W
Lamp Size (mm)	465×148×102.6	520×178×98.7	615×222×100.8	700×242×109
Lamp Size (mm) with Intelligent control	465×148×164.1	520×178×165.6	615×222×172.7	700×242×180
Voltage (V)	AC100-240V (277V Option) / 50/60Hz	AC100-240V (277V Option) / 50/60Hz	AC100-240V (277V Option) / 50/60Hz	AC100-240V (277V Option) / 50/60Hz
Power (W)	30W/40W	50W/60W	100W/120W	150W/180W
LED Type	SMD 3030	SMD 3030	SMD 3030	SMD 3030
LED Quantity	48PCS	72PCS	168PCS	252PCS
Color Temperature - Warm white	3000K	3000K	3000K	3000K
Color Temperature - Neutral white	4000K	4000K	4000K	4000K
Color Temperature - Cool white	5000K	5000K	5000K	5000K
Beam Angle	T2S / T2M / T3M	T2S / T2M / T3M	T2S / T2M / T3M	T2S / T2M / T3M
Color Rendering Index (CRI)	Ra = 70	Ra = 70	Ra = 70	Ra = 70
Power Supply Efficiency	> 90 %	> 90 %	> 90 %	> 90 %
LED Luminous Efficiency	160 lm/W – 170 lm/W	160 lm/W – 170 lm/W	160 lm/W – 170 lm/W	160 lm/W – 170 lm/W
Power Factor	> 0.95	> 0.95	> 0.95	> 0.95
Total Harmonic Distortion (THD)	≤ 15%	≤ 15%	≤ 15%	≤ 15%
IP / IK	IP65 / IK08	IP65 / IK08	IP65 / IK08	IP65 / IK08
LED Driver	ELEKTRA	ELEKTRA	ELEKTRA	ELEKTRA
Dimmable	Non-dimmable (0–10V Option)	Non-dimmable (0–10V Option)	Non-dimmable (0–10V Option)	Non-dimmable (0–10V Option)
LED Lifetime	100,000 Hrs	100,000 Hrs	100,000 Hrs	100,000 Hrs
NEMA Base	3, 5 & 7 Pin NEMA Base Options	3, 5 & 7 Pin NEMA Base Options	3, 5 & 7 Pin NEMA Base Options	3, 5 & 7 Pin NEMA Base Options
Surge Protection	10KV SPD	10KV SPD	10KV SPD	10KV SPD
Housing Material	ADC 12	ADC 12	ADC 12	ADC 12
Temperature Operating Range	-40℃ ~ 50℃	-40℃ ~ 50℃	-40℃ ~ 50℃	-40℃ ~ 50℃
Humidity Operating Range	20% ~ 95%	20% ~ 95%	20% ~ 95%	20% ~ 95%
Storage Temperature Range	-40℃ ~ 75℃	-40℃ ~ 75℃	-40℃ ~ 75℃	-40℃ ~ 75℃
Storage Humidity Range	10% ~ 80%	10% ~ 80%	10% ~ 80%	10% ~ 80%
Net Weight	2.30 KG	2.65 KG	3.52 KG	3.92 KG

Photometric Report

Downloads

You can download all of this information and more in PDF format here.
