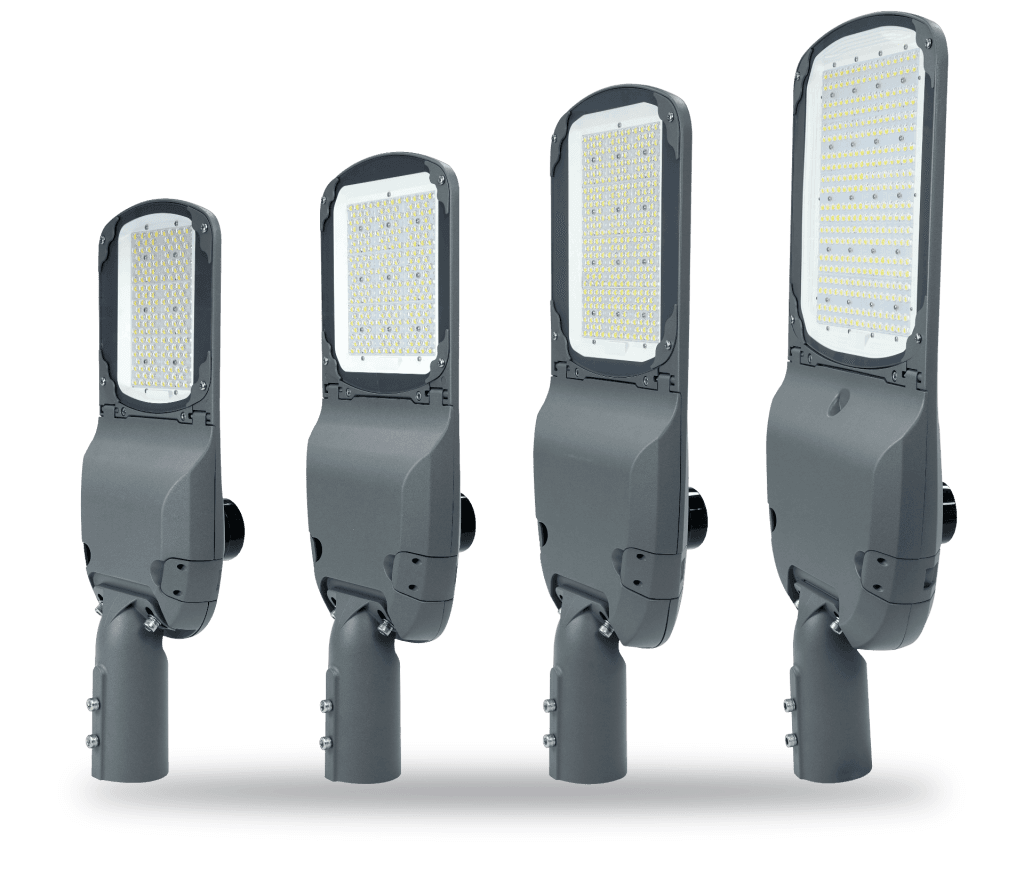

COBRATECH Series 4
Overview
COBRATECH LED drivers deliver superior performance, reliability, and flexibility for a wide range of lighting applications. They support multiple dimming methods, including 0–10V, PWM, resistance, and DALI for remote monitoring, reporting, and networking, making them adaptable to advanced control and intelligent lighting management systems. Built with proven reliability and compliance with global safety standards, they are suitable for dry, damp, and wet environments. With an operating voltage of 100–350V and IP67 protection, they provide robust defense against moisture, vibration, temperature extremes, over-current, over-voltage, and overheating.
Delivering efficiency levels up to 95% at full load, passive cooling with no moving parts, and lifespans of up to 100,000 hours, COBRATECH drivers offer long-lasting, energy-saving performance. They also feature diagnostic and add-on control readiness, allowing users to monitor lamp performance, track power consumption, and access failure data. Driver specifications may vary depending on model, technical requirements, and availability at Kaistar’s discretion.
Applications
- Low-profile, stylish design with durable powder coat finish
- Powered by 0–10V dimming LED drivers
- Color adjustable CCT :3000K/4000K/5000K or tailor made.
- Ambient operating temperature: −40ºC/−40ºF to 45ºC/113ºF.
- 4KV surge protection.
- Suitable for commercial and industrial applications.

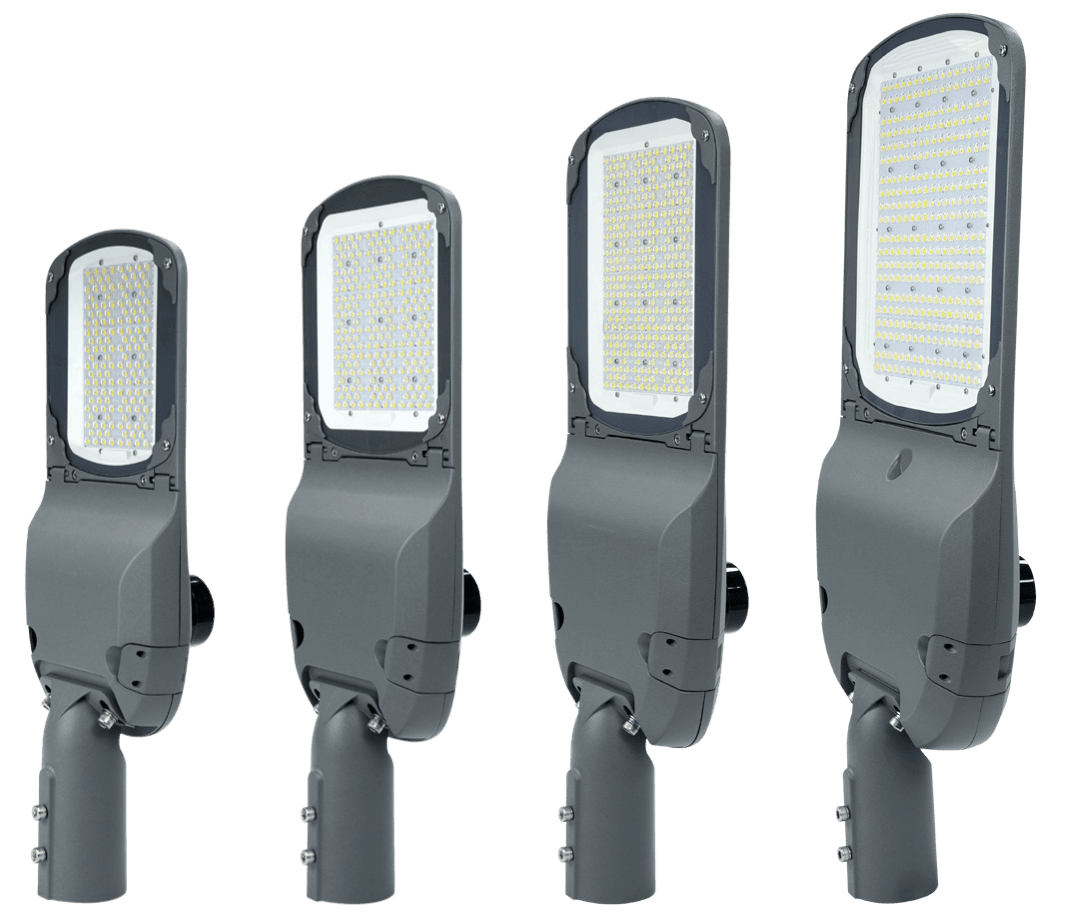

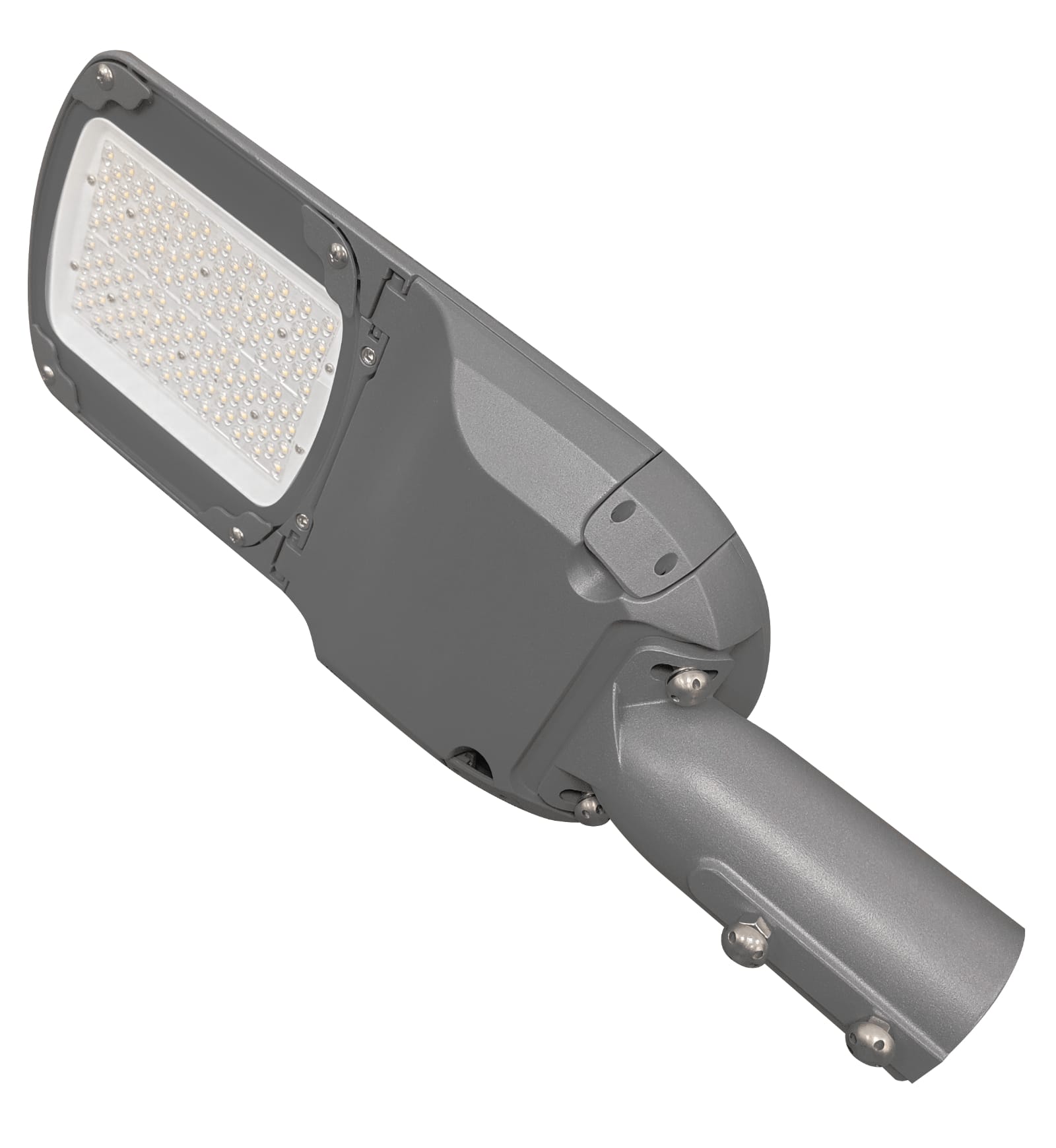

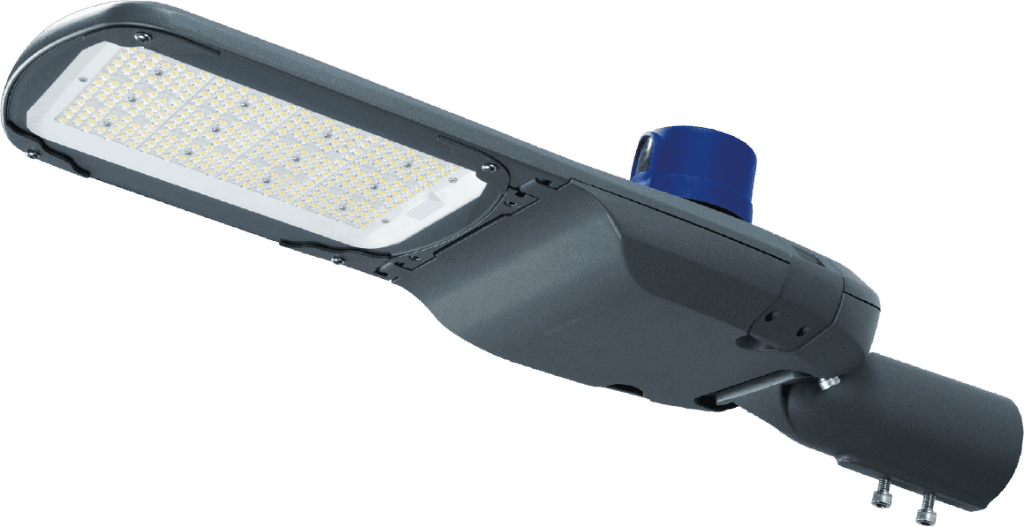

COBRATECH LED Roadway & Parking SSL
Waterproof To IP66, IK10 Impact Resistance, Wind, Vibration & Shock Resistant,
Interchangeable Components.

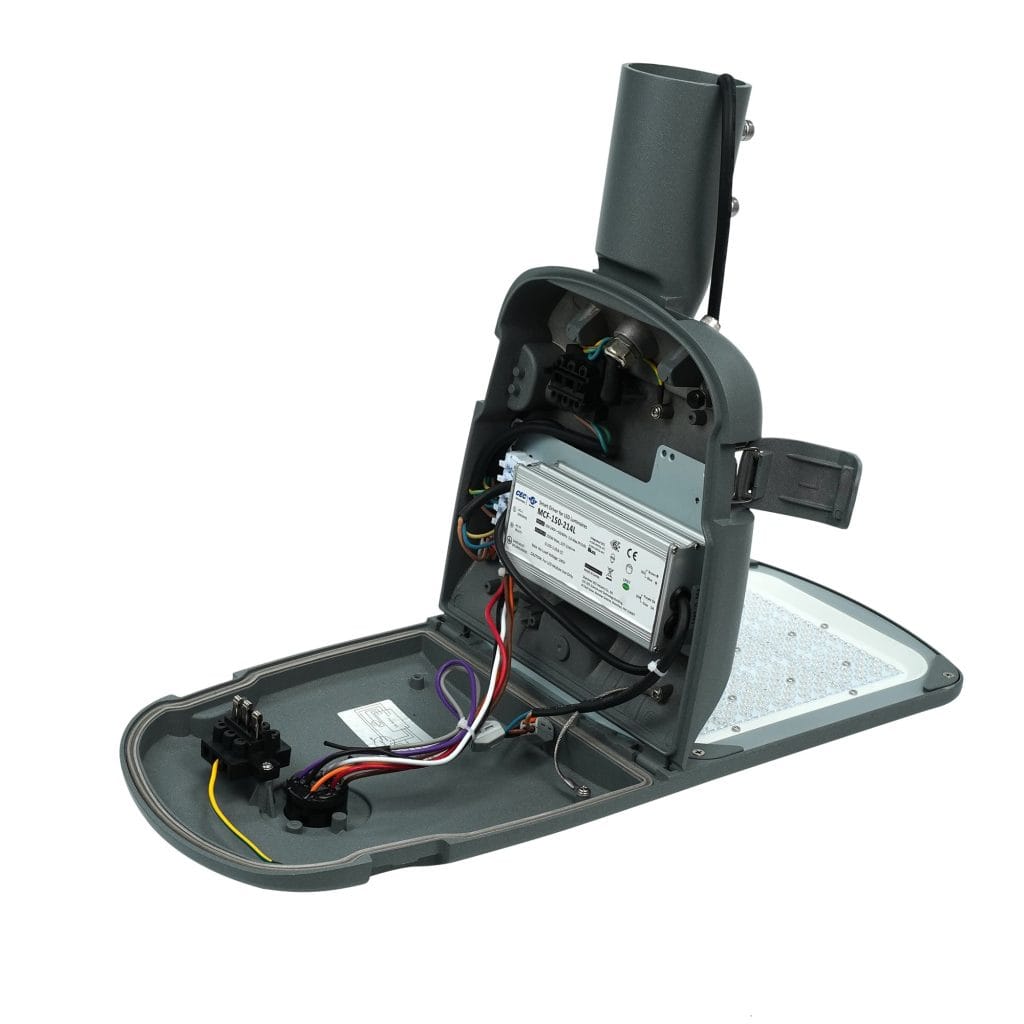

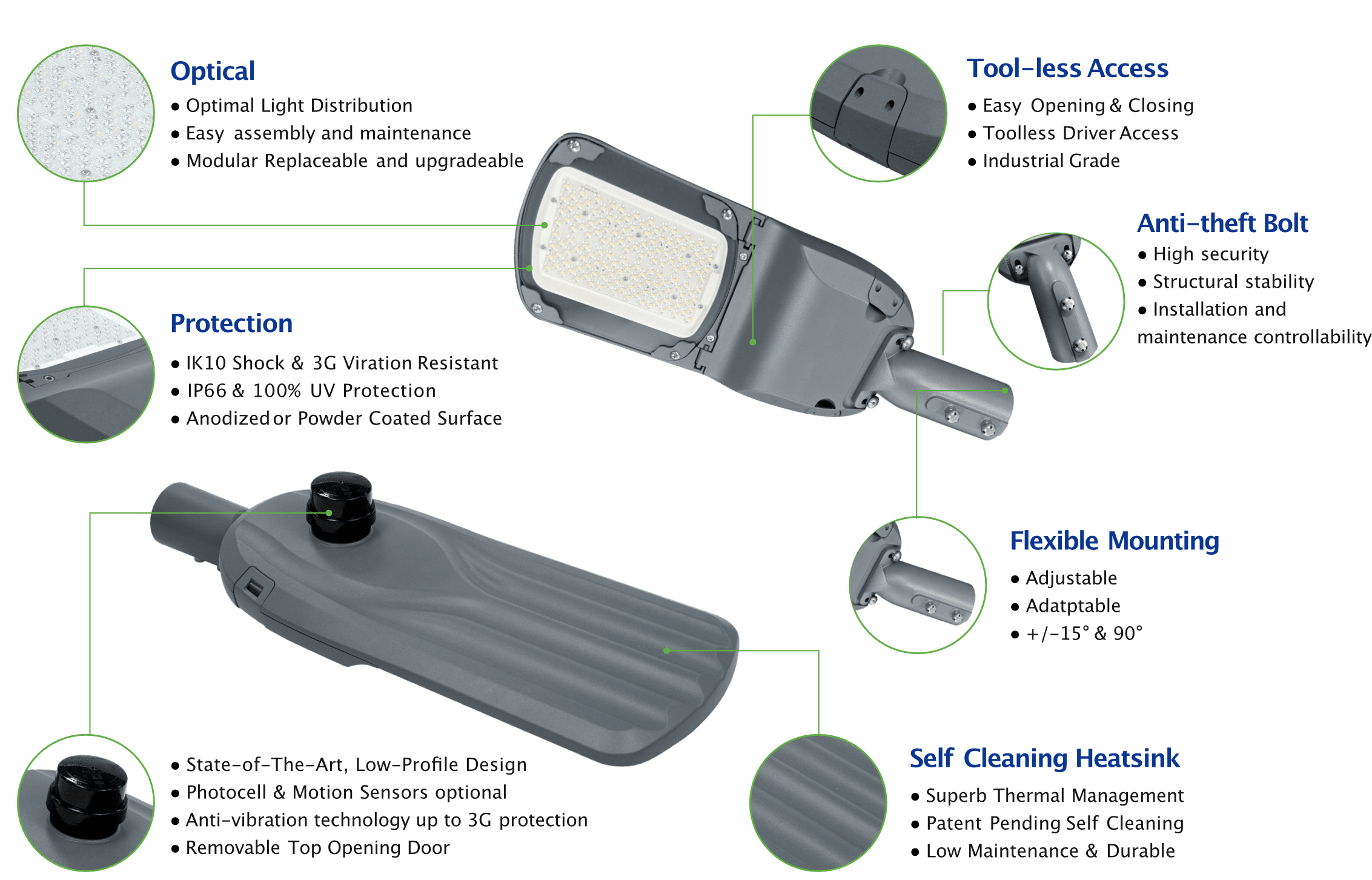

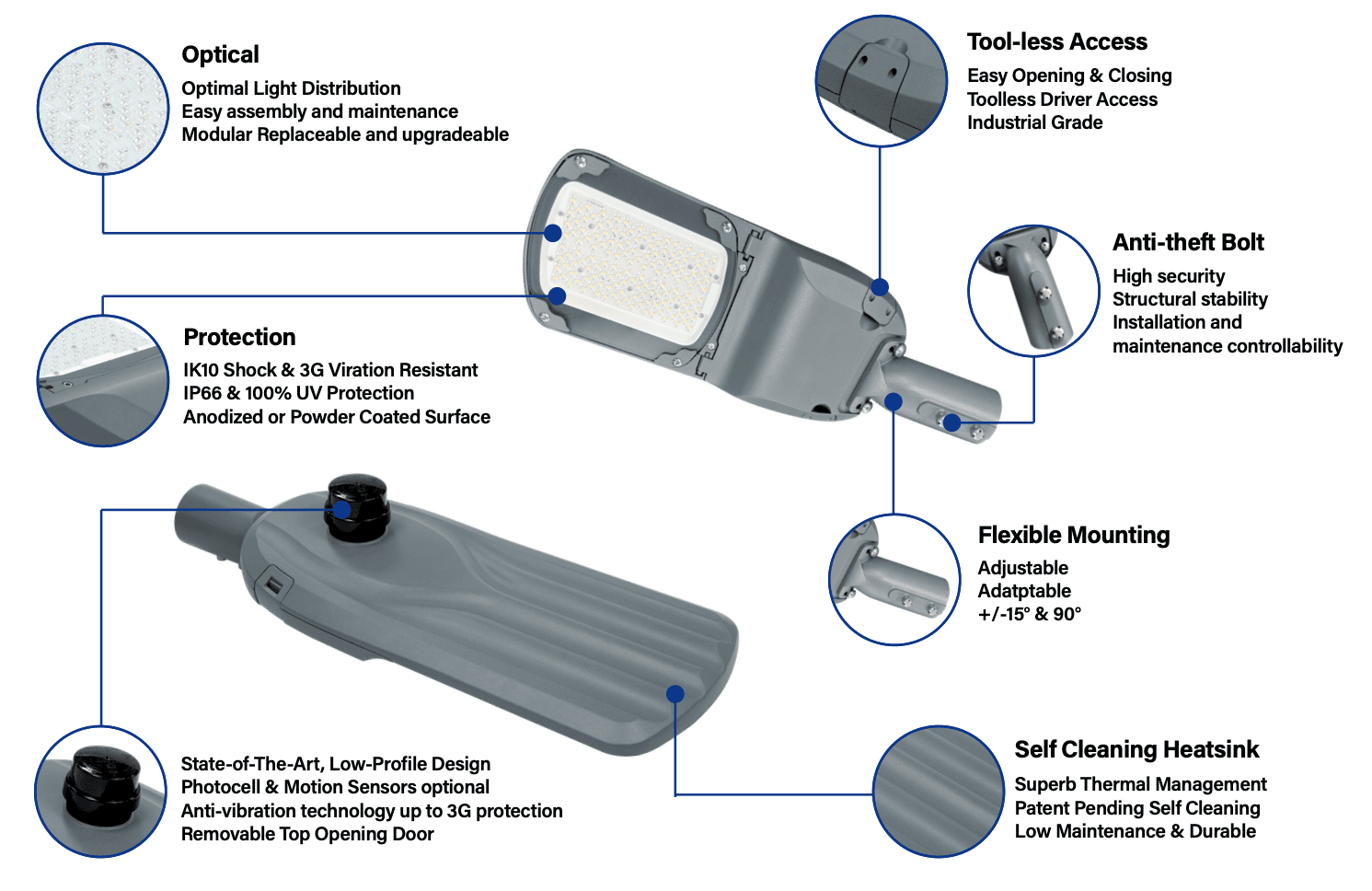

COBRATECH (CBT) incorporates innovative features that are designed to reduce total cost of ownership. Built with the very best top- grade LEDs, Driver and Surge Protector in a low maintenance modular system. Provides tremendous optical performance & energy savings for highways, roads, parking lots & area lighting.
Proprietary Optics
The proprietary optics, developed by CBT’s optical engineering team, allow for maximizing the lumens, produced by the highly efficient light engine to be delivered to the intended surface & protected by highly efficient tempered glass resistant to UV radiation.
Most of the current “high” lumen/watt luminaries are unable to deliver lumens generated to the targeted surface with the same efficiency as Cobratech and it’s patented lenses. Therefor they need more total lumen and power to achieve similar light intensity on the desired surface.
The COBRATECH optical system uses best in class light sources. This combined with the highly efficient secondary optics and electronics results in the industry leading delivered Lux/watt on the desired surface and avoiding “overspill” of light that is wasted and is the main source of light pollution.

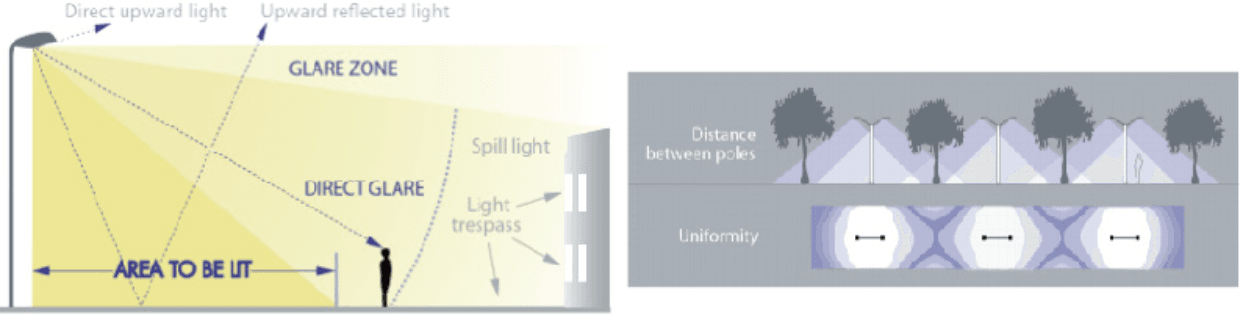

Wasted light can lead to light pollution, such as Glare (the result of excessive contrast between bright and dark areas in the field of view), Light Trespass (unwanted light falling on non-targeted areas), and Sky Glow (a glowing effect in the sky)
With CBT Roadway, Parking and Area Luminaires, light pollution is minimized since most of the light is projected onto the intended target.
Superior Uniformity
CBT Roadway, Parking and Area Luminaires distributes a more even light across the intended target, eliminating hot spots and dark areas.

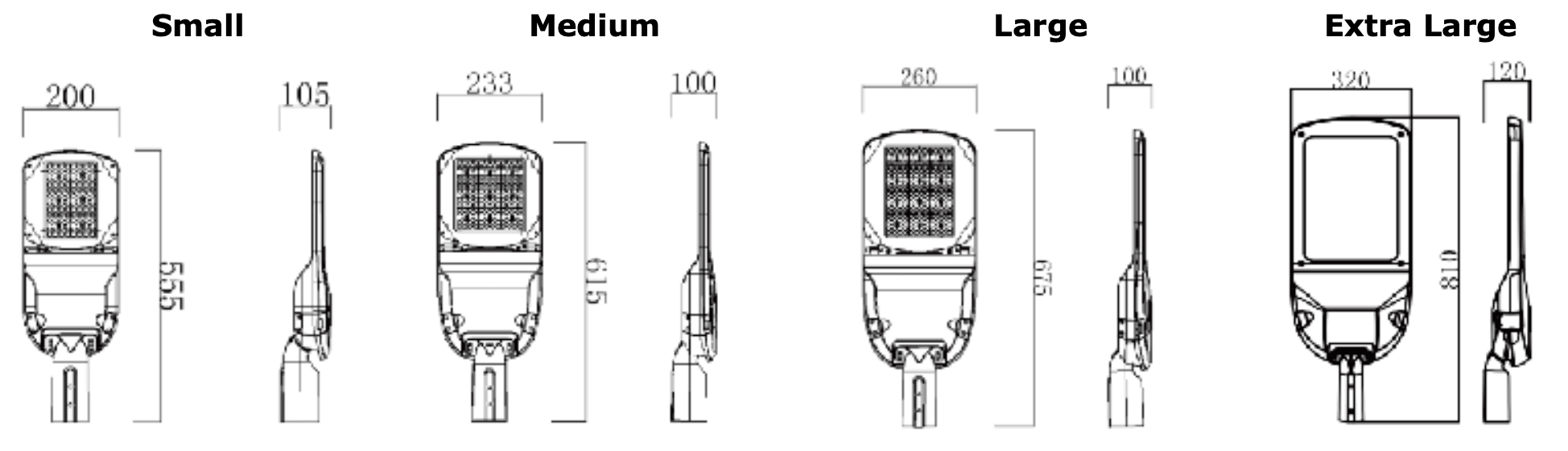

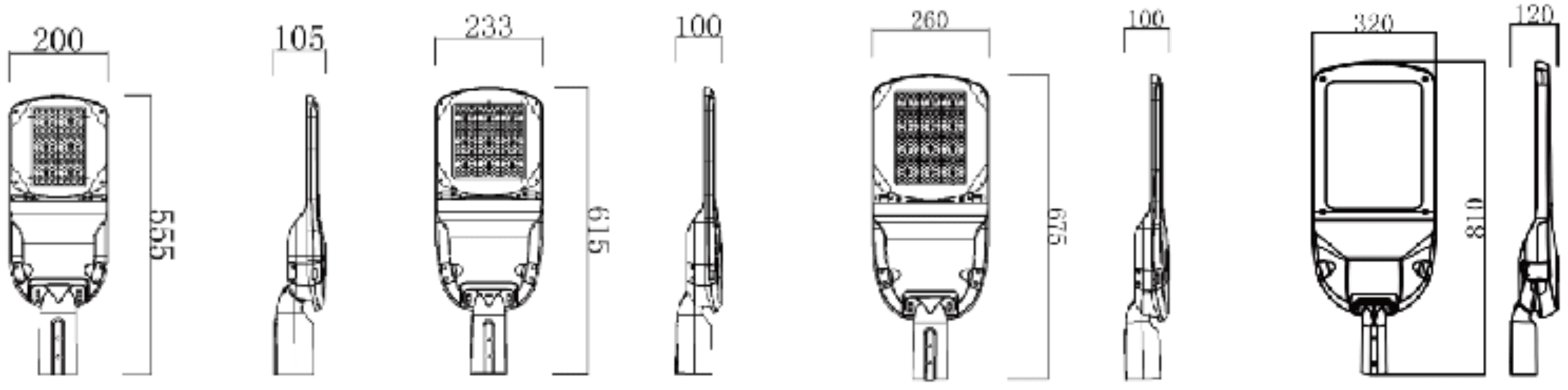

Dimensions
Unit: mm

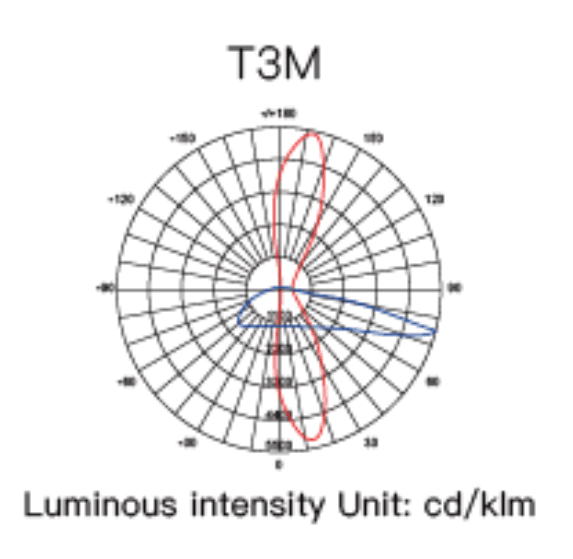

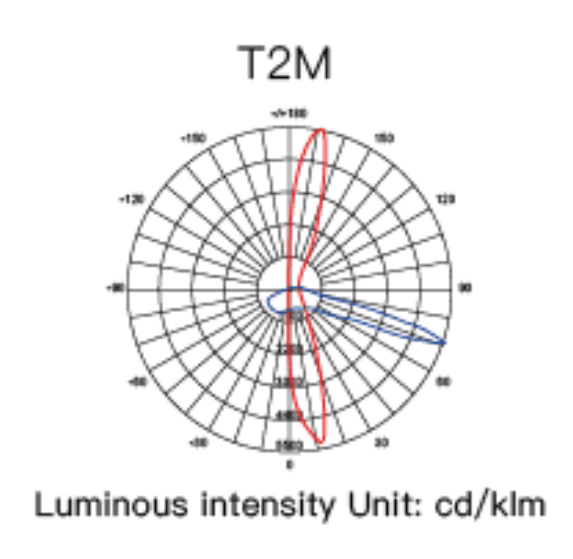

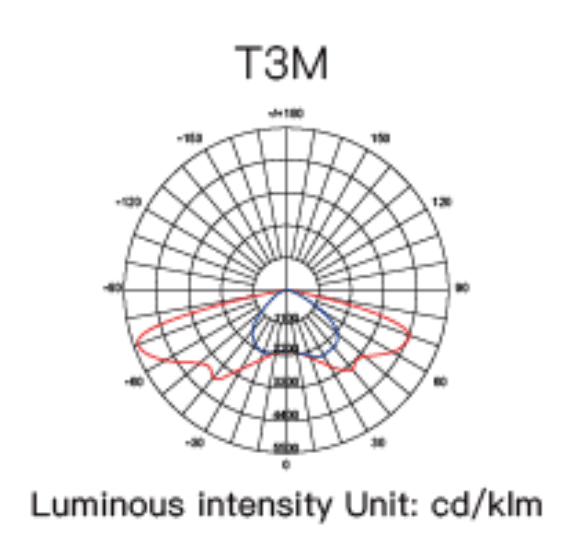

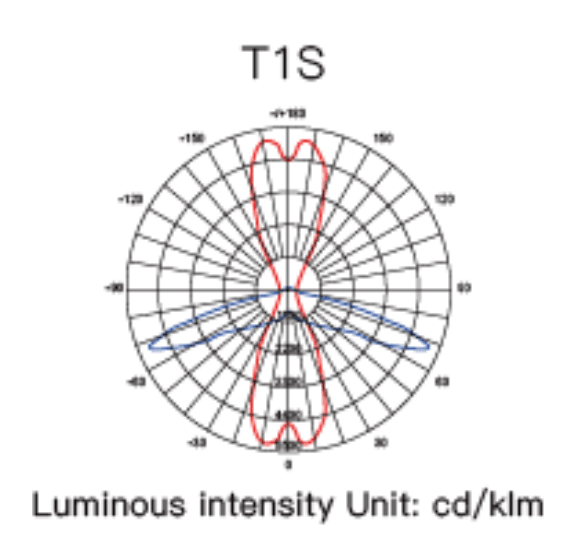

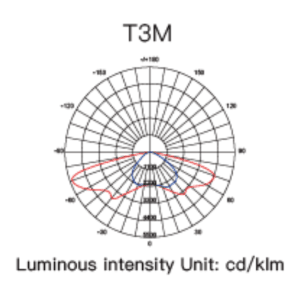

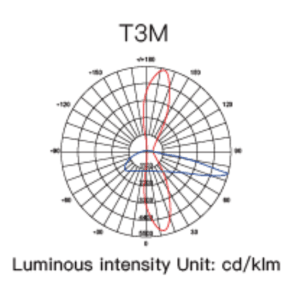

Photometrics
Specifications
Optics & Photometrics
| Parameter | Value | Options |
|---|---|---|
| LED Color Temperature | 4000K (3000K & 5000K Options) | 3M (Type III Medium) |
| Color Rendering Index | Ra=70 (Options: Ra=80) | T2S (Type II Short) |
| Light Distribution & Lens Kit Options | T2M (Type II Medium) | Customer Lenses Optional |
| T1S (Type I Short) | ||
| T3S (Type III Short) |
Electrical
| Parameter | Value | Additional |
|---|---|---|
| Input Voltage Options | 220~240 / 100~277 50/60Hz (0–10V / DALI / NEMA 3,5 & 7 Controls) | |
| Power Factor | >0.95 | Operating Temp: -35C° ~ +50C° |
| Surge Protection Options | 10KV & 20KV | Relative Humidity: 5%RH ~ 95%RH |
COBRATECH MODELS
| COBRATECH MODELS | System Pwr(W) | Max Lumens | Luminaire Efficacy Lm/W | Weight Kg | Dimmensions(mm) |
|---|---|---|---|---|---|
| CBT4S1 | 50 | 8500 | 170 | 3.7 | 555×200×105 |
| CBT4M1 | 100 | 17000 | 170 | 4.3 | 615×233×100 |
| CBT4L1 | 150 | 25500 | 170 | 5.5 | 675×260×100 |
| CBT4X1 | 200 | 34000 | 170 | 6.6 | 810×320×120 |
*All specifications & parameters @25C° & subject to change without notice. All data tolerance +/- 7%
