Sun Power (535-550) MHG

MBB Cell

More uniform current collecon capability, reducing the current heat loss of the internal cells.

Higher Output Power

The output power of 132 half-cells Monocrystalline modules is up to 700W

Harsh Environmental Adaptability

Strict salt spray and ammonia corrosiontest by the third party.

Low Light Features

Higher performance under low light environment.

LID Free

N-type solar cell has no LID naturally which can increase power generation.

Load Capacity

Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa.

Mechanical Diagram

Specifications

Weight	29.5kg
Dimension	2384mm1096mm35mm
Cell Dimension	210*105mm
Cell Amount	55*2 pcs
Maximum System Voltage	1500V
Junction Box	IP68
Frame	Aluminum Alloy
Cable	4mm²,+300,-300mm/±1300mm
Connector	Length can be customized
Application Level	Class A

Temperature Characteristics

NMOT	45±2°C
Temp Coefficient of ISC	+0.05%/°C
Temp Coefficient of VOC	-0.28%/°C
Temp Coefficient of Pmax	-0.34%/°C

Packing Configuration

Modules/Pallet	31
Modules/40’Container	620
Packaging Description	20 Pallets, Total=(31+31)x10=620 Pieces

Electrical Parameters At STC

Module Type	HS535-MHG	HS540-MHG	HS545-MHG	HS550-MHG
Power	535W	540W	545W	550W
Open Circuit Voltage	37.66V	37.86V	38.06V	38.26V
Short Circuit Current	18.07A	18.12A	18.17A	18.22A
Maximum Power Voltage	31.36V	31.56V	31.76V	31.96V
Maximum Power Current	17.06A	17.11A	17.16A	17.21A
Module Efficiency	20.48%	20.67%	20.86%	21.05%

* Under Standard Test Conditions (STC) of irradiance of 1000 W/㎡, spectrum AM 1.5 and cell temperature of 25°C.

Electrical Parameters At NMOT

Module Type	HS535-MHG	HS540-MHG	HS545-MHG	HS550-MHG
Power	405W	409W	413W	417W
Open Circuit Voltage	34.95V	35.13V	35.32V	35.51V
Short Circuit Current	14.82A	14.86A	14.90A	14.94A
Maximum Power Voltage	29.07V	29.26V	29.44V	29.63V
Maximum Power Current	13.93A	13.98A	14.03A	14.08A
Module Efficiency	0.155	0.1565	0.1581	0.1596

* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/㎡, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

Maximum Rating

Power selection	0~+5W
Measuring uncertainty of Pm	0~±3%
Operating Temperature	-40°C~+85°C
Wind Load/Snow Load	2400pa/5400pa
Fuse Current	30A

IV Characteristics

Sun Power (535-550) DMHG

MBB Cell

More uniform current collecon capability, reducing the current heat loss of the internal cells.

Higher Output Power

The output power of 132 half-cells Monocrystalline modules is up to 700W

Harsh Environmental Adaptability

Strict salt spray and ammonia corrosiontest by the third party.

Low Light Features

Higher performance under low light environment.

LID Free

N-type solar cell has no LID naturally which can increase power generation.

Load Capacity

Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa.

Mechanical Diagram

Specifications

Weight	35.0kg
Dimension	2384mm1096mm35mm
Cell Dimension	210*105mm
Cell Amount	55*2 pcs
Maximum System Voltage	1500V
Junction Box	IP68
Type of the front glass	2.0mm Coated ultra clear glass
Type of the back glass	2.0mm Heat-strengthened glass
Frame	Aluminum Alloy
Cable	4mm²,+300,-300mm/±1300mmLength can be customized
Connector	MC4 compaytible
Application Level	Class A

Temperature Characteristics

NMOT	45±2°C
Temp Coefficient of ISC	+0.05%/°C
Temp Coefficient of VOC	-0.28%/°C
Temp Coefficient of Pmax	-0.34%/°C

Packing Configuration

Modules/Pallet	31 Pieces
Packaging Description	20 Pallets, Total=(31+31)x10=620 Pieces
Modules/40’Container	620 Pieces

Electrical Parameters At STC

Module Type	HS535-MHG-D	HS540-MHG-D	HS545-MHG-D	HS550-MHG-D
Power	535W	540W	545W	550W
Open Circuit Voltage	37.66V	37.86V	38.06V	38.26V
Short Circuit Current	18.07A	18.12A	18.17A	18.22A
Maximum Power Voltage	31.36V	31.56V	31.76V	31.96V
Maximum Power Current	17.06A	17.11A	17.16A	17.21A
Module Efficiency	20.48%	20.67%	20.86%	21.05%

* Under Standard Test Conditions (STC) of irradiance of 1000 W/㎡, spectrum AM 1.5 and cell temperature of 25°C.

Electrical Parameters At BNPI

Module Type	HS535-MHG-D	HS540-MHG-D	HS545-MHG-D	HS550-MHG-D
Power	586W	591W	597W	602W
Open Circuit Voltage	37.66V	37.86V	38.06V	38.26V
Short Circuit Current	19.44A	19.52A	19.60A	19.68A
Maximum Power Voltage	31.36V	31.56V	31.76V	31.96V
Maximum Power Current	18.68A	18.74A	18.79A	18.84A

*Rear side power gain:The additional gain from the rear side compared to the power of the front side at the standard test condition. It depends on mounting (structure,height, tilt angle etc.)and albedo of the ground.

Electrical Parameters At NMOT

Module Type	HS535-MHG-D	HS540-MHG-D	HS545-MHG-D	HS550-MHG-D
Power	405W	409W	413W	417W
Open Circuit Voltage	34.95V	35.13V	35.32V	35.51V
Short Circuit Current	14.82A	14.86A	14.90A	14.94A
Maximum Power Voltage	29.07V	29.26V	29.44V	29.63V
Maximum Power Current	13.93A	13.98A	14.03A	14.08A
Module Efficiency	15.50%	15.65%	15.81%	15.96%

* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/㎡, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

IV Characteristics

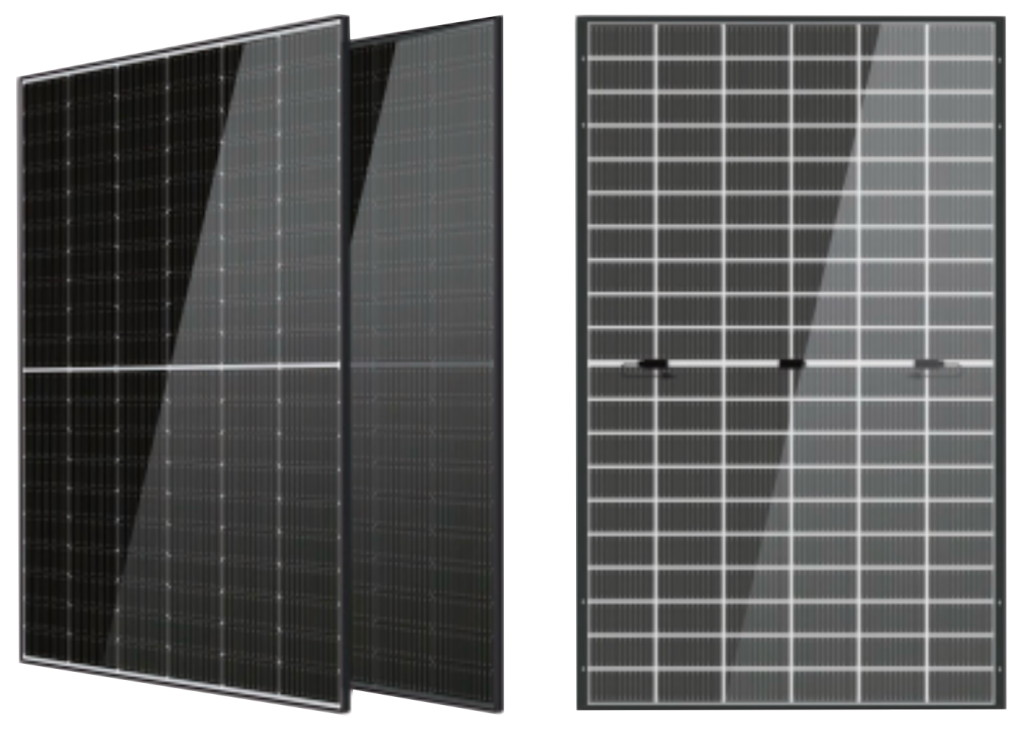

Sun Power (485-500) MHG

MBB Cell

More uniform current collecon capability, reducing the current heat loss of the internal cells.

Higher Output Power

The output power of 132 half-cells Monocrystalline modules is up to 700W

Harsh Environmental Adaptability

Strict salt spray and ammonia corrosiontest by the third party.

Low Light Features

Higher performance under low light environment.

LID Free

N-type solar cell has no LID naturally which can increase power generation.

Load Capacity

Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa.

Mechanical Diagram

Specifications

Weight	28kg
Dimension	2174mm1096mm35mm
Cell Dimension	210*105mm
Cell Amount	50*2 pcs
Maximum System Voltage	1500V
Junction Box	IP68
Frame	Aluminum Alloy
Cable	4mm² ,+300,-300mm/±1300mm (length can be customized)
Connector	MC4 compatible
Application Level	Class A

Temperature Characteristics

NMOT	45±2°C
Temp Coefficient of ISC	+0.05%/°C
Temp Coefficient of VOC	-0.28%/°C
Temp Coefficient of Pmax	-0.34%/°C

Packing Configuration

Modules/Pallet	31
Pieces Modules/40’ Container	620 Pieces
Packaging Description	20 Pallets, Total=(31+31)x10=620 Pieces

Electrical Parameters At STC

Module Type	HS485-MHG	HS490-MHG	HS495-MHG	HS500-MHG
Power	485W	490W	495W	500W
Open Circuit Voltage	34.22V	34.42V	34.62V	34.82V
Short Circuit Current	18.05A	18.13A	18.21A	18.29A
Maximum Power Voltage	28.49V	28.69V	28.89V	29.09V
Maximum Power Current	17.03A	17.08A	17.13A	17.19A
Module Efficiency	0.2036	0.2056	0.2077	0.2098

* Under Standard Test Conditions (STC) of irradiance of 1000 W/㎡, spectrum AM 1.5 and cell temperature of 25°C.

Maximum Rating

Power selection	0~+5W
Measuring uncertainty of Pm	0~±3%
Operating Temperature	-40°C~+85°C
Wind Load/Snow Load	2400pa/5400pa
Fuse Current	30A

IV Characteristics

Sun Power (485-500) DMHG

MBB Cell

More uniform current collecon capability, reducing the current heat loss of the internal cells.

Higher Output Power

The output power of 132 half-cells Monocrystalline modules is up to 700W

Harsh Environmental Adaptability

Strict salt spray and ammonia corrosiontest by the third party.

Low Light Features

Higher performance under low light environment.

LID Free

N-type solar cell has no LID naturally which can increase power generation.

Load Capacity

Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa.

Mechanical Diagram

Specifications

Weight	31.0kg
Dimension	2174mm1096mm35mm
Cell Dimension	210*105mm
Cell Amount	50*2 pcs
Maximum System Voltage	1500V
Junction Box	IP68
Type of Front Glass	2.0mm Coated ultra clear glass
Type of Back Glass	2.0mm Heat-strengthened glass
Frame	Aluminum Alloy
Cable	4mm², +300, -300mm/±1300mm (customizable)
Connector	MC5 compatible
Application Level	Class A

Temperature Characteristics

NMOT	45±2°C
Temp Coefficient of ISC	+0.05%/°C
Temp Coefficient of VOC	-0.28%/°C
Temp Coefficient of Pmax	-0.34%/°C

Packing Configuration

Modules/Pallet	31 Pieces
Packaging Description	20 Pallets, Total=(31+31)x10=620 Pieces
Modules/40’Container	620 Pieces

Electrical Parameters At STC

Module Type	HS485-MHG-D	HS490-MHG-D	HS495-MHG-D	HS500-MHG-D
Power	485W	490W	495W	500W
Open Circuit Voltage	34.22V	34.42V	34.62V	34.82V
Short Circuit Current	18.05A	18.13A	18.21A	18.29A
Maximum Power Voltage	28.49V	28.69V	28.89V	29.09V
Maximum Power Current	17.03A	17.08A	17.13A	17.19A
Module Efficiency	0.2036	0.2056	0.2077	0.2098

* Under Standard Test Conditions (STC) of irradiance of 1000 W/㎡, spectrum AM 1.5 and cell temperature of 25°C.

Electrical Parameters At BNPI

Module Type	HS485-MHG-D	HS490-MHG-D	HS495-MHG-D	HS500-MHG-D
Power	485W	490W	495W	500W
Open Circuit Voltage	34.22V	34.42V	34.62V	34.82V
Short Circuit Current	18.05A	18.13A	18.21A	18.29A
Maximum Power Voltage	28.49V	28.69V	28.89V	29.09V
Maximum Power Current	17.03A	17.08A	17.13A	17.19A
Module Efficiency	0.2036	0.2056	0.2077	0.2098

Electrical Parameters At NMOT

Power	368W	372W	376W	380W
Open Circuit Voltage	31.76V	31.94V	32.13V	32.31V
Short Circuit Current	14.80A	14.87A	14.93A	14.99A
Maximum Power Voltage	26.41V	26.60V	26.78V	26.97V
Maximum Power Current	13.94A	13.99A	14.04A	14.09A
Module Efficiency	0.1544	0.1561	0.1578	0.1595

* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/㎡, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

IV Characteristics

Sun Max (610-635)TC

MBB Cell

More uniform current collecon capability, reducing the current heat loss of the internal cells.

Higher Output Power

The output power of 132 half-cells Monocrystalline modules is up to 700W

Harsh Environmental Adaptability

Strict salt spray and ammonia corrosiontest by the third party.

Low Light Features

Higher performance under low light environment.

LID Free

N-type solar cell has no LID naturally which can increase power generation.

Load Capacity

Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa.

Mechanical Diagram

Specifications

Weight	31kg
Dimension	2174mm1303mm35mm
Cell Dimension	210*105mm
Cell Amount	60*2 pcs
Maximum System Voltage	1500V
Junction Box	IP68
Type of the front glass	2.0mm Coated ultra clear glass
Type of the back glass	2.0mm Heat-strengthened glass
Frame	Aluminum Alloy
Cable	4mm²,+300,-300mm/±1300mm ; Length can be customized
Connector	MC4 compatible
Application Level	Class A

Temperature Characteristics

NMOT	45±2°C
Temp Coefficient of ISC	+0.04%/°C
Temp Coefficient of VOC	-0.23%/°C
Temp Coefficient of Pmax	-0.28%/°C

Packing Configuration

Modules/Pallet	31 Pieces
Packaging Description	18 Pallets, Total=(31+31)x9=558 Pieces
Modules/40’Container	558 Pieces

Electrical Parameters At STC

Module Type	HS610TC-MHG-D	HS615TC-MHG-D	H620TC-MHG-D	HS625TC-MHG-D	HS630TC-MHG-D	HS635TC-MHG-D
Power	610W	615W	620W	625W	630W	635W
Open Circuit Voltage	43.86V	43.98V	44.10V	44.22V	44.40V	44.94V
Short Circuit Current	17.46A	17.52A	17.60A	17.66A	17.69A	17.72A
Maximum Power Voltage	37.74V	37.92V	38.04V	38.22V	38.46V	38.70V
Maximum Power Current	16.16A	16.22A	16.30A	16.35A	16.38A	16.41A
Module Efficiency	21.53%	21.71%	21.89%	22.06%	22.24%	22.42%

* Under Standard Test Conditions (STC) of irradiance of 1000 W/㎡, spectrum AM 1.5 and cell temperature of 25°C.

Electrical Parameters At BNPI

Power	671W	677W	682W	688W	693W	699W
Open Circuit Voltage	43.86V	43.98V	44.10V	44.22V	44.40V	44.94V
Short Circuit Current	19.20A	19.27A	19.36A	19.43A	19.46A	19.49A
Maximum Power Voltage	37.74V	37.92V	38.04V	38.22V	38.46V	38.70V
Maximum Power Current	17.78A	17.84A	17.93A	17.99A	18.02A	18.05A

Electrical Parameters At NMOT

Power	465W	469W	472W	476W	480W	484W
Open Circuit Voltage	41.45V	41.56V	41.67V	41.79V	41.96V	42.47V
Short Circuit Current	13.98A	14.03A	14.10A	14.14A	14.17A	14.19A
Maximum Power Voltage	35.25V	35.42V	35.53V	35.70V	35.92V	36.15V
Maximum Power Current	13.19A	13.23A	13.30A	13.34A	13.36A	13.39A

* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/㎡, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

IV Characteristics

Sun Max (510-535)TC

MBB Cell

More uniform current collecon capability, reducing the current heat loss of the internal cells.

Higher Output Power

The output power of 132 half-cells Monocrystalline modules is up to 700W

Harsh Environmental Adaptability

Strict salt spray and ammonia corrosiontest by the third party.

Low Light Features

Higher performance under low light environment.

LID Free

N-type solar cell has no LID naturally which can increase power generation.

Load Capacity

Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa.

Mechanical Diagram

Specifications

Weight	28kg
Dimension	2174mm1096mm35mm
Cell Dimension	210*105mm
Cell Amount	50*2 pcs
Maximum System Voltage	1500V
Junction Box	IP68
Type of the front glass	2.0mm Coated ultra clear glass
Type of the back glass	2.0mm Heat-strengthened glass
Frame	Aluminum Alloy
Cable	4mm²,+300,-300mm/±1300mm ; Length can be customized
Connector	MC4 compatible
Application Level	Class A

Temperature Characteristics

NMOT	45±2°C
Temp Coefficient of ISC	+0.04%/°C
Temp Coefficient of VOC	-0.23%/°C
Temp Coefficient of Pmax	-0.28%/°C

Packing Configuration

Modules/Pallet	31 Pieces
Packaging Description	18 Pallets, Total=(31+31)x9=558 Pieces
Modules/40’Container	558 Pieces

Electrical Parameters At STC

Module Type	HS510TC-MHG-D	HS515TC-MHG-D	H520TC-MHG-D	HS525TC-MHG-D	HS530TC-MHG-D	HS530TC-MHG-D
Power	510W	515W	520W	525W	530W	535W
Open Circuit Voltage	36.55V	36.65V	36.75V	36.85	37.00V	37.45V
Short Circuit Current	17.51V	17.60V	17.72V	17.80V	17.86V	17.92V
Maximum Power Voltage	31.45V	31.60V	31.70V	31.85V	32.05V	32.25V
Maximum Power Current	16.22V	16.30V	16.40V	16.48V	16.54V	16.59V
Module Efficiency	21.40%	21.61%	21.82%	22.03%	22.24%	22.45%

* Under Standard Test Conditions (STC) of irradiance of 1000 W/㎡, spectrum AM 1.5 and cell temperature of 25°C.

Electrical Parameters At BNPI

Power	561W	567W	572W	578W	583W	589W
Open Circuit Voltage	36.55V	36.65V	36.75V	36.85V	37.00V	37.45V
Short Circuit Current	19.26V	19.36V	19.49V	19.58V	19.65V	19.71V
Maximum Power Voltage	31.45V	31.60V	31.70V	31.85V	32.05V	32.25V
Maximum Power Current	17.84V	17.93V	18.04V	18.13V	18.19V	18.25V

Electrical Parameters At NMOT

Power	389W	392W	396W	400W	404W	408W
Open Circuit Voltage	34.54V	34.63V	34.73V	34.82V	34.97V	35.39V
Short Circuit Current	14.02A	14.09A	14.19A	14.25A	14.30A	14.35A
Maximum Power Voltage	29.37V	29.51V	29.61V	29.75V	29.93V	30.12V
Maximum Power Current	13.23A	13.30A	13.38A	13.45A	13.49A	13.53A

* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/㎡, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

IV Characteristics

Downloads

You can download all of this information and more in PDF format here.

Got an Incredible Project in Mind?

We are ready to help, get in touch today.

Sun Max (560-585)TC

MBB Cell

More uniform current collecon capability, reducing the current heat loss of the internal cells.

Higher Output Power

The output power of 132 half-cells Monocrystalline modules is up to 700W

Harsh Environmental Adaptability

Strict salt spray and ammonia corrosiontest by the third party.

Low Light Features

Higher performance under low light environment.

LID Free

N-type solar cell has no LID naturally which can increase power generation.

Load Capacity

Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa.

Mechanical Diagram

Specifications

Weight	38.5KG
Dimension	2384mm1303mm35mm
Cell Dimension	210*105mm
Cell Amount	66*2 pcs
Maximum System Voltage	1500V
Junction Box	IP68
Type of the front glass	2.0mm Coated ultra clear glass
Type of the back glass	2.0mm Heat-strengthened glass
Frame	Aluminum Alloy
Cable	4mm²,+300,-300mm/±1300mm ; Length can be customized
Connector	MC4 compatible
Application Level	Class A

Temperature Characteristics

NMOT	45±2°C
Temp Coefficient of ISC	+0.05%/°
Temp Coefficient of VOC	-0.28%/°C
Temp Coefficient of Pmax	-0.34%/°C

Packing Configuration

Modules/Pallet	31 Pieces
Packaging Description	18 Pallets, Total=(31+31)x9=558 Pieces
Modules/40’Container	558 Piece

Electrical Parameters At STC

Module Type	HS670TC-MHG-D	HS675TC-MHG-D	H680TC-MHG-D	HS685TC-MHG-D	HS690TC-MHG-D	HS695TC-MHG-D	HS700TC-MHG-D
Power	670W	675W	680W	685W	690W	695W	700W
Open Circuit Voltage	48.25V	48.38V	48.51V	48.64V	48.84V	49.43V	49.50V
Short Circuit Current	17.43A	17.48A	17.55A	17.60A	17.61A	17.63A	17.68A
Maximum Power Voltage	41.51V	41.71V	41.84V	42.04V	42.31V	42.57V	42.77V
Maximum Power Current	16.14A	16.18A	16.25A	16.29A	16.31A	16.33A	16.37A
Module Efficiency	21.57%	21.73%	21.89%	22.05%	22.21%	22.37%	22.53%

* Under Standard Test Conditions (STC) of irradiance of 1000 W/㎡, spectrum AM 1.5 and cell temperature of 25°C.

Electrical Parameters At BNPI

Power	737W	743W	748W	754W	759W	765W	770W
Open Circuit Voltage	48.25V	48.38V	48.51V	48.64V	48.84V	49.43 V	49.50V
Short Circuit Current	19.17A	19.22A	19.31A	19.36A	19.38A	19.40A	19.44A
Maximum Power Voltage	41.51V	41.71V	41.84V	42.04V	42.31V	42.57V	42.77V
Maximum Power Current	17.75A	17.80A	17.88A	17.92A	17.94A	17.96A	18.00 A

Electrical Parameters At NMOT

Power	511W	514W	518W	522W	526W	530W	533W
Open Circuit Voltage	45.59V	45.72V	45.84V	45.97V	46.15V	46.72V	46.78V
Short Circuit Current	13.96A	13.99A	14.05A	14.09A	14.10A	14.12A	14.15A
Maximum Power Voltage	38.77V	38.96V	39.08V	39.27V	39.51V	39.76V	39.95V
Maximum Power Current	13.17A	13.20A	13.26A	13.29A	13.31A	13.32A	13.35A

* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/㎡, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

IV Characteristics

Sun Max (670-700)TC
