Features
Ultra-High Density
Compact system design providing higher capacity with reduced footprint
Smart & Scalable
Modular design enabling simplified installation, expansion, and maintenance Remote maintenance and firmware upgrade support
Efficient & Durable
Liquid cooling for improved thermal management and extended lifecycle High energy density with minimal cell temperature deviation
Enhanced Monitoring & Control
Integrated platform for local and remote system monitoring Data logging capability for component-level status tracking Real-time operational analysis available on terminal display
Safe & Reliable
Cell testing certified to IEC standards Multi-tier fire protection architecture Integrated automated control with early-warning detection Enclosure protection rating: IP55 Battery pack protection rating: IP67

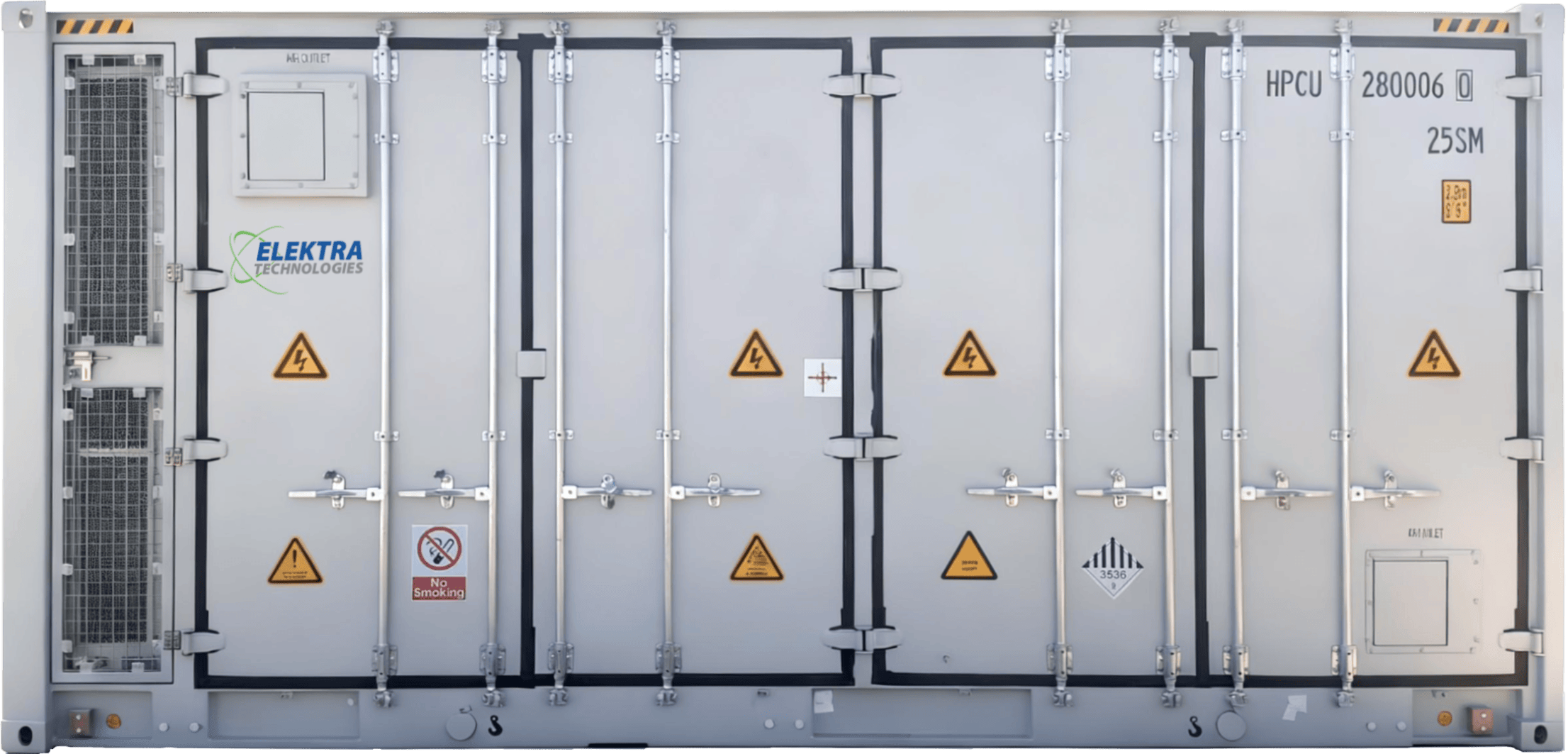

Overview, Design Philosophy and Specifications - 5MWh Battery Container
Large-scale battery energy storage systems (BESS) stabilize renewable power by capturing surplus generation and delivering it when demand rises. Elektra’s utility-scale solutions integrate advanced lithium-ion battery technology with liquid cooling, fire suppression, and intelligent monitoring systems to ensure safe, reliable operation.
Proven in diverse applications, these systems enhance grid resilience, efficiency, and the overall reliability of renewable energy supply.

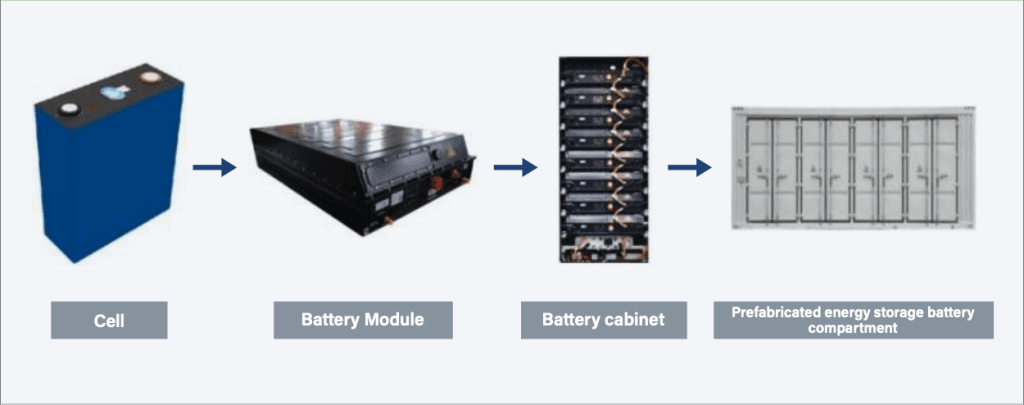

The Energy Storage System (ESS) adopts a modular architecture with a clear hierarchy of battery cells, modules, clusters, and fully integrated containerized systems. Each container is equipped with:
- Battery racks with advanced Battery Management System (BMS)
- Precision liquid-cooling thermal management system
- Integrated lighting system
- Fire detection and automatic suppression system
- Security and access control system
- Emergency response and protection mechanisms
This design ensures scalability, safety, and operational reliability for utility-scale energy storage applications.
Hierarchical Battery Parameters
| Item | Parameters | Minimum Voltage | Maximum Voltage | Rated Voltage | Capacity (Wh) | Quantity |
|---|---|---|---|---|---|---|
| Battery Cell | 314Ah | 2.8V | 3.6V | 3.2V | 1,004.8 | 4992 |
| Battery Module | 1P104S | 291.2V | 374.4V | 332.8V | 104,499.2 | 48 |
| Battery Cluster | 1P416S | 1164.8V | 1497.6V | 1331.2V | 417,996.8 | 12 |
| Battery Container | 12P416S | 1164.8V | 1497.6V | 1331.2V | 5,015,961.6 | 1 |
System Technical Parameters
| Parameter | Value |
|---|---|
| Cell Type | LFP 3.2V 314Ah |
| Configuration | 12*(1P104S*4) |
| Rated Power | 5.015 MWh |
| Rated Voltage | 1331.2V DC |
| Voltage Range | 1164.8V – 1497.6V DC |
| Rated Charging Power | ≤ 2.5MW |
| Rated Discharge Power | ≤ 2.5MW |
| Auxiliary Power Supply | 400V AC±5% 50Hz / 220VAC (significant load) |
| Storage | −40°C < T ≤ 60°C |
| Work | 0°C < T ≤ 55°C (charging); −30°C < T ≤ 55°C (discharging) |
| Altitude | ≤ 2000m (>2000m derating) |
| Dimensions | L6058 × W2438 × H2896mm |
| Color | RAL 7035 (default) |
| Weight | About 43t |
| IP Rating | IP55 (default) |
| Refrigeration method | Liquid Cooling |
| Communication Protocol | CAN/IEC61850/IEC104/TCP/MODBUS RTU |
| Coolant | 50% ethylene glycol aqueous solution |
